220V Welded Wire Mesh Machine For Wire Mesh Panel / Mesh Fencing Machine

I'm Online Chat Now

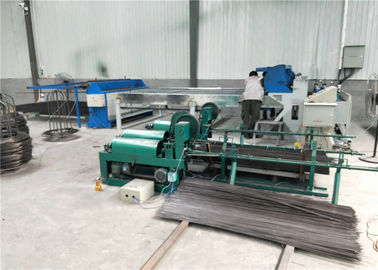

220V Welded Wire Mesh Machine For Wire Mesh Panel / Mesh Fencing Machine

China 220V Welded Wire Mesh Machine For Wire Mesh Panel / Mesh Fencing Machine supplier
220V Welded Wire Mesh Machine For Wire Mesh Panel / Mesh Fencing Machine supplier 220V Welded Wire Mesh Machine For Wire Mesh Panel / Mesh Fencing Machine supplier 220V Welded Wire Mesh Machine For Wire Mesh Panel / Mesh Fencing Machine supplier 220V Welded Wire Mesh Machine For Wire Mesh Panel / Mesh Fencing Machine supplier

Large Image :  220V Welded Wire Mesh Machine For Wire Mesh Panel / Mesh Fencing Machine

Product Details:

Place of Origin: Anping China
Brand Name: chengke
Certification: IOS
Model Number: CK-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 10000 - 30000USD
Packaging Details: no
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Brand Name: Holland Wire Mesh Welding Machine Control: PLC
Condition: New Voltage: 380V/440V/415V/220V
Color: Customized Warranty: One Year
High Light:

fence panel making machine

,

diamond mesh fencing machine

Wire Mesh Welding Machine For Wire Mesh Panel / Mesh Fencing Machine





Description



This machine adopts synchronous control technique. The center-control and welding time are composed of PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, welding repeatedly. The hopper adopts the step motor; brake motor wheels; pulling the wire net is controlled by the step motor. The line wire and the weft wire are pre-straightened and pre-cut. The longitude wires can be adjustable and cross wire distance can be adjustable according to input the data what you want. The greatest advantage is that you can adjust the distance of weft wire at random on the same piece of wire mesh sheet. The finished product—fence panel is smooth, the error of opposite angle line is small.



Specification:



1.This machine adopts Panasonic PLC program system.



2.The input front-panel is Weinview touch screen that makes the machine more intelligent and reasonable and it could press at one time.



3. ABB(Switzerland) Switch off Schneider(France) low voltage

Schneider (France) Air switch Delta(Taiwan) frequency

TENGEN transformer in the electric control cabinet



4. The hopper device adopts the step motor; brake motor wheels

Drawing mesh Controlled by the Panasonic servo motor.

Germany Drag chain on side of the drawing



5. The main motor connect the fence mesh machine directly ,make the machine more simple and can improve the speed ,welding speed can reach 75times/min



6. The longitude wire space and cross wire space can be adjusted.



7.Adopt auto welding by software; reduce the demand for electricity and pollution



8.Our fence machine's funnel for cross wire falling down controlled by SMC(Japanese) air cylinder. It's easy and simple adjustable.



9.Our machine uses water cooling transformer



10.The finished product fence panel is smooth; the error of opposite angle line is small.





Technical Parameters:



Model CK-FM-1200A CK-FM-2500A CK-FM-3000A
Welding width Max.1200mm Max.2500mm Max.3000mm
Wire diameter 3-6mm
Longitude wire space 50-300mm
Cross wire space Min.25mm/Min.12.7mm
Mesh length Max.6000mm
Welding speed 50-75 times/min
Wire feeding way Pre-straightened & pre-cut
Welding electrodes Max.25pcs Max.48pcs Max.61pcs
Welding transformers 125kva*3pcs 125kva*6pcs 125kva*8pcs
Weight 2T 4T 4.5T



Usage



Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .

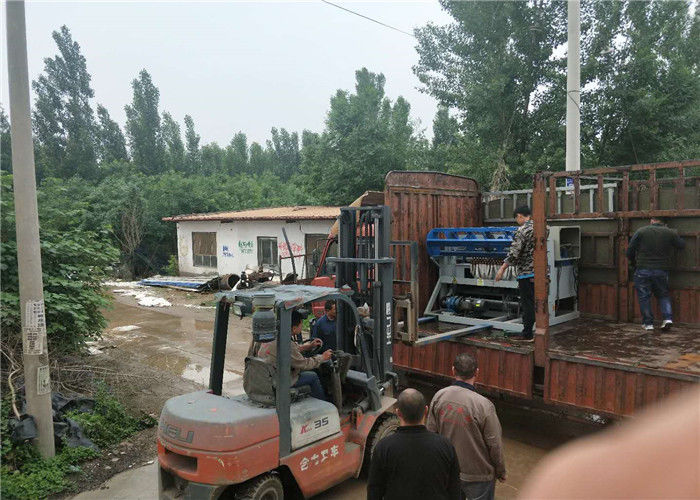

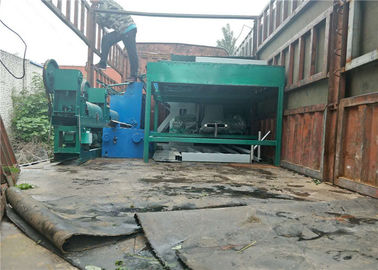

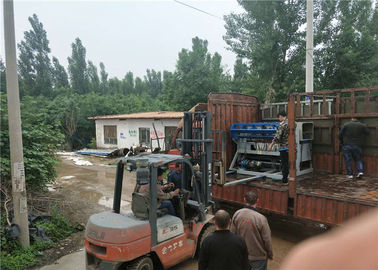

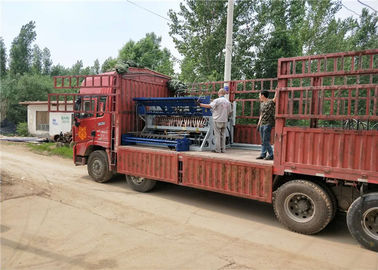

packaging



1. Use the steel wire to fasten the easy damages parts to keep its safety and not be hit during the ship
2. The main machine and auxilary equipment with plastic ,then put the spare parts into wooden box
