Fully Automatic Fence Mesh Welding Machine Multipoint Welding One Person Operation

I'm Online Chat Now

Fully Automatic Fence Mesh Welding Machine Multipoint Welding One Person Operation

China Fully Automatic Fence Mesh Welding Machine  Multipoint Welding One Person Operation supplier
Fully Automatic Fence Mesh Welding Machine  Multipoint Welding One Person Operation supplier Fully Automatic Fence Mesh Welding Machine  Multipoint Welding One Person Operation supplier Fully Automatic Fence Mesh Welding Machine  Multipoint Welding One Person Operation supplier Fully Automatic Fence Mesh Welding Machine  Multipoint Welding One Person Operation supplier

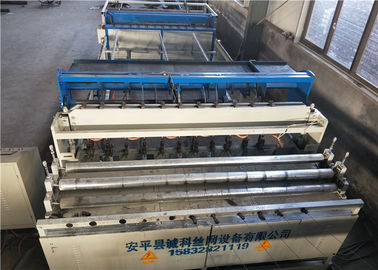

Large Image :  Fully Automatic Fence Mesh Welding Machine Multipoint Welding One Person Operation

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-FM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Fully Automatic Fence Mesh Multipoint Welding Machine Color: Blue,white
Weight: 4T Warranty: 1 Year
Condition: New After-sales: Overseas Service Provided
High Light:

fence panel making machine

,

hexagonal wire mesh machine

Fully Automatic Fence Mesh Multipoint Welding Machine One Person Operation





description



1. Welder gantry structure, the effective welding machine working space 900mm, suitable for welding the maximum width of 700mm
2 according to the user's requirements, the welder beam device 3 or 4 welding cylinder. Corresponding to the cylinder in the lower beam device 3 or 4 down the cylinder. Welding cylinder lateral position adjustable.
3. Each group welding cylinder can be set separately welding parameters (welding current, welding time, pre-pressure time, maintenance time) and so on.
4. Secondary use of three-phase full-wave rectifier power supply, high power factor, current output strong. Energy saving.
5. Welder control using all-digital programmable logic controller (PLC) control, the current output is stable, reliable work. Low failure rate.
6. Transformers, primary SCR and secondary rectifier bridge, welding electrodes and other 3-way working system were set up strong water cooling system to ensure that the welding machine can work stably for a long time
7. Welding cylinder, welding valve selection of high-quality fast devices to ensure that row welding machine can work continuously and steadily



Features



1, the upper electrode using cylinder pressure, pressure adjustment convenient and accurate;
2, one can be completed evenly welding multiple welds;
3, can be adjusted head pressure drop and rise speed, ease the pressure on the workpiece impact, but also reduce noise;
4, the secondary conductor using the upper insulation, insulation performance is stable and reliable;
5, the main circuit using high-power thyristor components, the output power supply strong, stable and reliable;
6, operation by the foot switch control, with high productivity, low labor intensity;
7, for metal mesh, mesh welding.



Specification



    Fully Automatic Fence Mesh Multipoint Welding Machine One Person Operation
Input power 380V 50Hz
Max. width 2500mm
Line wire space 50-300mm
Cross wire space ≥25mm
Wire diameter 2.5-6.0mm
Rated capacity 125kva*6
Welding point No. 48
Motor power 4.0KW
Feed line wire Pre-cut wire
Feed cross wire Pre-cut wire
Welding speed 30-50 times/min
Weight 4T
Can be customized according to customer requirements.
