Double Edge Chain Link Fence Machine , High Speed Welded Wire Mesh Machine

I'm Online Chat Now

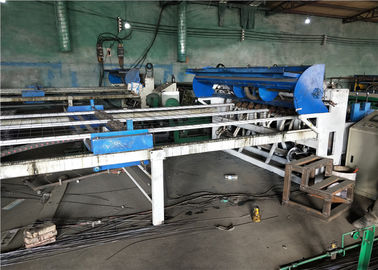

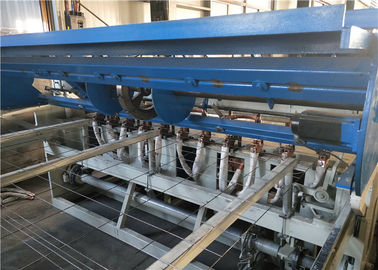

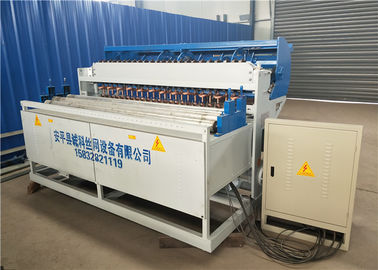

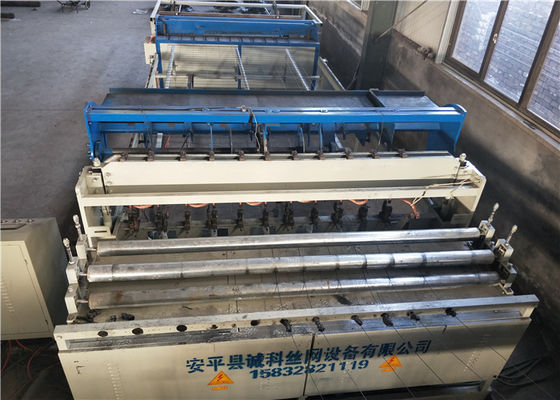

Double Edge Chain Link Fence Machine , High Speed Welded Wire Mesh Machine

China Double Edge Chain Link Fence Machine , High Speed Welded Wire Mesh Machine supplier
Double Edge Chain Link Fence Machine , High Speed Welded Wire Mesh Machine supplier Double Edge Chain Link Fence Machine , High Speed Welded Wire Mesh Machine supplier Double Edge Chain Link Fence Machine , High Speed Welded Wire Mesh Machine supplier Double Edge Chain Link Fence Machine , High Speed Welded Wire Mesh Machine supplier

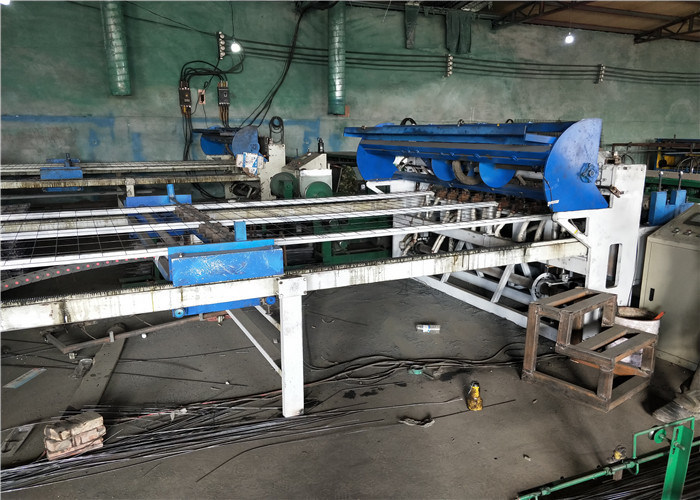

Large Image :  Double Edge Chain Link Fence Machine , High Speed Welded Wire Mesh Machine

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-FM-2000Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps and plywood box
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Set per month
Contact Now
Detailed Product Description
Color: White Or Blue Product Name: Automatic Double Edge Fence Mesh Welding Machine
Width: 2 M Condition: New
Warranty Period: 1 Year Functions: 380v
High Light:

fence panel making machine

,

hexagonal wire mesh machine

Double Edge Fence Mesh Welding Servo Motor To Repeated Pull Mesh





Description



This machine adopts synchronous control technique. The center-control and welding time are composed of PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, welding repeatedly. The hopper adopts the step motor; brake motor wheels; pulling the wire net is controlled by the step motor. The line wire and the weft wire are pre-straightened and pre-cut. The longitude wires can be adjustable and cross wire distance can be adjustable according to input the data what you want. The greatest advantage is that you can adjust the distance of weft wire at random on the same piece of wire mesh sheet. The finished product—fence panel is smooth, the error of opposite angle line is small.



advantages



1. Feeding material:

The warp wire and weft wire are straightened and cutted from coil wire material ,realized by auto straightening and cutting machine.

The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system
2. Welding mesh panel system:

The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Mitsubishi PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet
3. Drawing mesh panel system:

Panasonic ( Japan ) step motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.



Used



1 . fence mesh for railway, highway, airport bridge and constructions.

2 . Mesh panel for goods shelf and storage racks.



Specifications



Automatic Double Edge Fence Mesh Welding Machine Production Is Fast , Low Noise
Wire Diameter 2.5mm - 6mm
Width of Mesh 2000m ( can be customize )
Welding Speed 45 - 90 times/min
W elding Aperture 50 * 50 - 200 * 200 ( mm )
Welding Spot 48 ( can be customized )
Rated Voltage 380V
