High Productivity Automatic Wire Mesh Machine , High Speed Reinforcing Mesh Machine

I'm Online Chat Now

High Productivity Automatic Wire Mesh Machine , High Speed Reinforcing Mesh Machine

China High Productivity Automatic Wire Mesh Machine , High Speed Reinforcing Mesh Machine supplier
High Productivity Automatic Wire Mesh Machine , High Speed Reinforcing Mesh Machine supplier High Productivity Automatic Wire Mesh Machine , High Speed Reinforcing Mesh Machine supplier High Productivity Automatic Wire Mesh Machine , High Speed Reinforcing Mesh Machine supplier High Productivity Automatic Wire Mesh Machine , High Speed Reinforcing Mesh Machine supplier

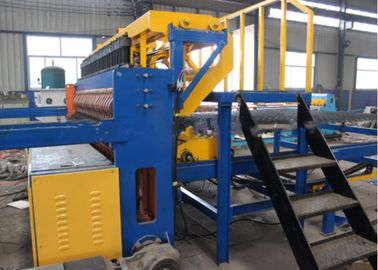

Large Image :  High Productivity Automatic Wire Mesh Machine , High Speed Reinforcing Mesh Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps
Delivery Time: 15 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25 Sets/Month
Contact Now
Detailed Product Description
Product Name: Automatic Thread Concrete Reinforcing Wire Mesh Welding Machine Width: 2.5mm
Wire Diameter: 5-12mm Condition: New
After-sales: Engineers Available To Service Machinery Overseas Warranty Period: 1 Year
High Light:

automatic wire mesh welding machine

,

mesh panel welding machine

Automatic Thread Concrete Reinforcing Wire Mesh Welding Machine







description



1.this machine adopts synchronous control technique ,both welding time and cent-control welding is supervised by IPC.

2.it adopts modularization design, so it is easy to improve the machine,s function and feature.

3.save time to add wires and save labor to operate.

4.firm welding ,little noise,high speed ,smaller investment,lower maintainence.

.

Features



1 . This machine adopts synchronous control technique . The center-control and welding time are composed of PLC .
2 . The input front-panel has two forms , touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time , welding repeatedly .
3 . The longitude wires and cross wire distance can be adjusted by inputing the data you want . The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet .



Specification



Model CK-RM-2500Q
Wire diameter 5 - 12mm
Welding width Max . 2500mm
Longitude wire space 100 - 300mm
Cross wire space Min . 50mm
Mesh length Max . 12000mm
Number of electrode Max . 24
Welding transformers 150kva * 12pcs
Wire feeding way Pre-straightened & pre-cut
Weight 8T
Welding speed 40 - 65times / min



Usage



Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .



Packaging Details



1 . The bracket and auxiliary equipments will be with plastic package , spare parts in carton box .

2 . The main machine will be fixed in the container by steel wire rope to make it stable .

3 . It needs one 20GP , 40GP or 40 " HC for shipment
