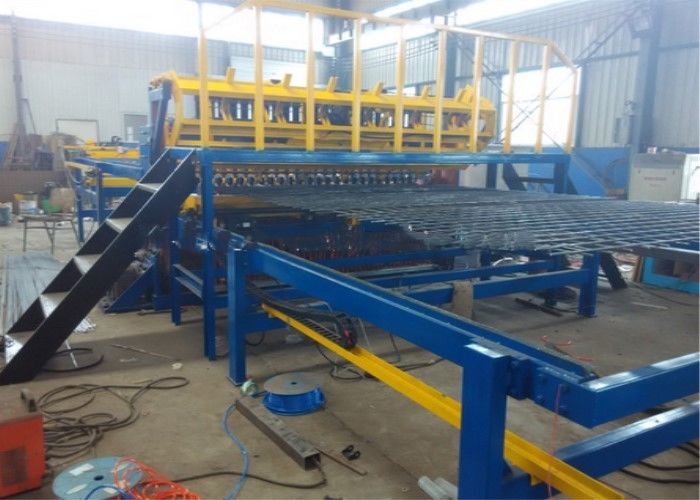

Intelligent Wire Mesh Fencing Machine PLC Control System , Custom Wire Mesh Making Machine

China Intelligent Wire Mesh Fencing Machine  PLC Control System , Custom Wire Mesh Making Machine supplier
Intelligent Wire Mesh Fencing Machine  PLC Control System , Custom Wire Mesh Making Machine supplier Intelligent Wire Mesh Fencing Machine  PLC Control System , Custom Wire Mesh Making Machine supplier Intelligent Wire Mesh Fencing Machine  PLC Control System , Custom Wire Mesh Making Machine supplier Intelligent Wire Mesh Fencing Machine  PLC Control System , Custom Wire Mesh Making Machine supplier

Large Image :  Intelligent Wire Mesh Fencing Machine PLC Control System , Custom Wire Mesh Making Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps
Delivery Time: 15 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25 Sets/Month
Contact Now
Detailed Product Description
Product Name: PLC Control System Reinforcing Mesh Welding Machine Width: 2.5mm
Wire Diameter: 5-12mm Number Of Electrode: 48
After-sales: Engineers Available To Service Machinery Overseas Warranty Period: 1 Year
High Light:

reinforced mesh welding machine

,

mesh panel welding machine

PLC Control System Reinforcing Mesh Welding Machine CK - RM - 2500Q





description



1. This kind of brc concrete rebar steel reinforce mesh welding machine is our latest developed
reinforcing mesh welding machine.

2. The line wire and the weft wire of brc concrete rebar steel reinforce mesh welding machine
are pre-straight and pre-cut.

3. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto.

4. The brc concrete rebar steel reinforce mesh welding machine welding power comes from the
cylinders. It's easy to control the welding pressure .

5. The weft wire of brc concrete rebar steel reinforce mesh welding machine feeding from the
multi hopper which capacity is more over ten times than the traditional hopper.

6. The new brc concrete rebar steel reinforce mesh welding machine added the bear wire net
and carry equipment that makes the working more convenience .

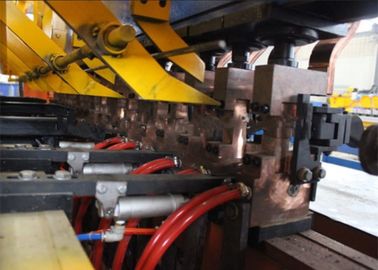

7. The welding part of brc concrete rebar steel reinforce mesh welding machine is used the
springiness input wire trunking that makes the welding copper use for long time.

8. This brc concrete rebar steel reinforced mesh welding machine adopts synchronous control
technique. The cent-control and welding time are composed of PLC program system. The input
front-panel is touch screen , the operate is more intelligent and reasonable.

.

.

Features



1 . This machine adopts synchronous control technique . The center-control and welding time are composed of PLC .
2 . The input front-panel has two forms , touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time , welding repeatedly .
3 . The longitude wires and cross wire distance can be adjusted by inputing the data you want . The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet .



Specification



Model CK-FM-2500Q CK-RM-2500Q
Wire diameter 3-8mm 5-12mm
Welding width Max.2500mm Max.2500mm
Longitude wire space 100-300mm 100-300mm
Cross wire space Min.50mm Min.50mm
Mesh length Max.12000mm Max.12000mm
Wire feeding way Pre-straightened & pre-cut Pre-straightened & pre-cut
Welding speed 50-75 times/min 40-65times/min
Welding electrodes Max.24pcs Max.24pcs
Welding transformers 150kva*6pcs 150kva*12pcs



Usage



Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .



Packaging Details



1 . The bracket and auxiliary equipments will be with plastic package , spare parts in carton box .

2 . The main machine will be fixed in the container by steel wire rope to make it stable .

3 . It needs one 20GP , 40GP or 40 " HC for shipment
