|Product Name:||Hydraulic Drive Reinforcing Mesh Welding Machine||Width:||Max 2.5m As Required|
|After-sales:||Engineers Available To Service Machinery Overseas||Color:||As Your Requirements|
automatic wire mesh welding machine,
mesh panel welding machine

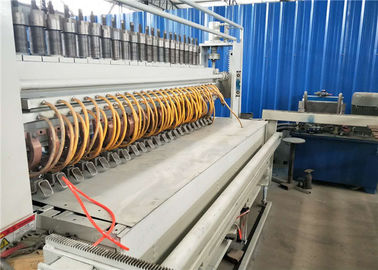

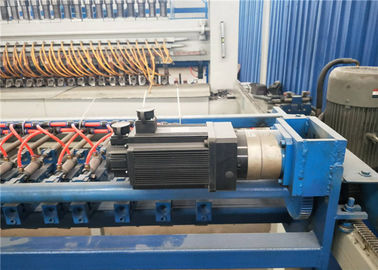

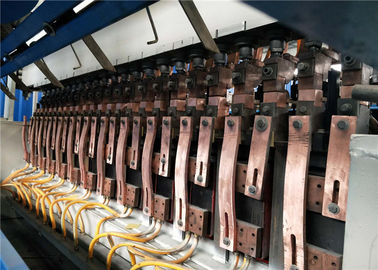

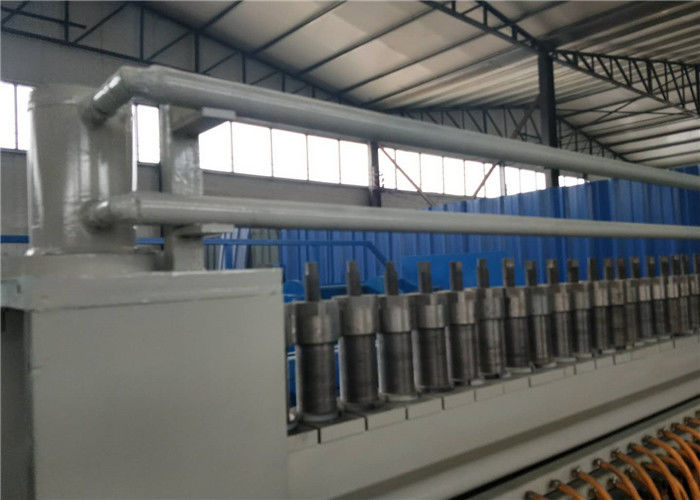

Multi Purpose High Speed Hydraulic Drive Reinforcing Mesh Welding Machine
This machine has multi spot welding function, advanced control system enables the machine to weld the mesh in any sequence or any way. Using high quality air cylinder to provide welding force, the output is much more stable and durable than conventional mechanical type welding machines.Also machine features can be made by your idea together with our engineer technique support.Varies materials can be welded: weld mild steel wire, stainless wire, galvanized steel wire.Mesh panels: weld construction mesh panel, fridge shelf panel, shelf rack mesh panel, reinforcing mesh panelsMesh production line: producing rolled mesh in varies size.All kinds of mesh products: weld cage for bird, pet cage welding, mesh trolley welding, weld wire mesh basket, wire tray, fridge condensers, cable tray mesh etc.
1. The main frame is welded with thick steel plate and section bar, making the main structure more solid and compact.
2. All key parts are made of alloys with heat treatment applied to achieve a very high hardness. Furthermore, the special anti-corrosion treatment is applied for the surface to ensure smooth operation of the parts while preventing corrosion.
3. The welding products are of diversity and the machine can be set according to different production requirements of various kinds, bring flexibility and versatility for customers.
4. The welding adopts new-type high-efficiency welding transformer, which is much more efficient and can make the welding spot more solid compared with traditional transformer.
5. The electric appliances and pneumatic components are all adopt famous brand from foreign countries.
6. Fool-style operation, no matter what kind of operation personnel can easily operate it.
7. About the mesh flatness, this production line adopts the unique welding craft and sophisticated welding control system as well as high-quality copper-cobalt alloy electrodes with special shape, all of which can ensure the flatness of mesh.
Highway, railway and various function of protection. For construction which used for basis of high building, roof mesh, floor mesh. It is also widely used in agriculture and poultry mesh, farming mesh and so on.
|Multi Purpose High Speed Hydraulic Drive Reinforcing Mesh Welding Machine|
|Number of Electrodes||24||28||32|
|Max. Mesh Width||2500mm||2900mm||3300mm|
|Cross Wire Space||≥50mm||≥50mm||≥50mm|
|Line Wire Space||100-200mm||100-200mm||100-200mm|
|Control System||PLC Control||PLC Control||PLC Control|
|Special specification is available according to your requirements.|
