Coal Mine Reinforcing Mesh Welding Machine Fast Production AC Motor 100 - 300mm Aperture

I'm Online Chat Now

Coal Mine Reinforcing Mesh Welding Machine Fast Production AC Motor 100 - 300mm Aperture

China Coal Mine Reinforcing Mesh Welding Machine Fast Production AC Motor 100 - 300mm Aperture supplier
Coal Mine Reinforcing Mesh Welding Machine Fast Production AC Motor 100 - 300mm Aperture supplier Coal Mine Reinforcing Mesh Welding Machine Fast Production AC Motor 100 - 300mm Aperture supplier Coal Mine Reinforcing Mesh Welding Machine Fast Production AC Motor 100 - 300mm Aperture supplier Coal Mine Reinforcing Mesh Welding Machine Fast Production AC Motor 100 - 300mm Aperture supplier

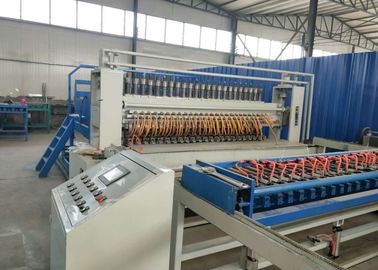

Large Image :  Coal Mine Reinforcing Mesh Welding Machine Fast Production AC Motor 100 - 300mm Aperture

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps
Delivery Time: 15 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25 Sets/Month
Contact Now
Detailed Product Description
Product Name: AC Motor Coal Mine Reinforcing Mesh Production Welding Machine Width: Max 2.5m As Required
Wire Diameter: 5-12mm Voltage: 380V
After-sales: Engineers Available To Service Machinery Overseas Aperture: 100-300
High Light:

automatic wire mesh welding machine

,

reinforced mesh welding machine

AC Motor Coal Mine Reinforcing Mesh Production Welding Machine Fast Production



description

1. The welding apertures are adjustable according to you need. What is more,it can change when the machine is working,because it use the PLC and HMI control system
2. synchronization CNC technology, welding time and separate welding are controled by PLC digital program
3. Input panel for touch screen or buttons two kinds, which makes the machine more intelligent and rationalization.
4. welding transformer, shifting gear can be divided into eight levels, expand the scope of the diameter of the welding wire.
5.It is easy to operate, and the flexibility is high.


Features

1. Easy to operate: to finish one panel mesh, only need to turn on one auto-running button.

2. unique design of the cross wire input hopper: the machine will stop if there are no wires or abnormal happens, and it will run, when everything is OK.
3. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality.
4. main motor servo control: with Delta VE high-end frequency concerter and PG card to make the main motor 0-1500r/min increase or decrease speed is 0.02s, zero speed, could 200% torque run, ensure the quick reaction of the machine.(motor with Omron encoder)
5. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.
6. mesh output device: with Panasonic servo motor and planetary gear, ensure the system stability and end products precision.
7. automatic back to zero: the machine finished products, the mesh output device will automatically back to zero.
8. automatic turn on: with line wire input device, after finishing send the line wires, the machine will automatically turn on the machine.
9. failure display: when the machine fail, it will show on the touch screen(HMI) in english, very easy to maintain.
10. parameter set: all the parameter could be set on the touch screen in English.
11. all the spare parts are from famous brand at home and abroad.


Specification



Item CK-RM-2500 CK-RM-2900 CK-RM-3300
Number of Electrodes 24 28 32
Max. Mesh Width 2500mm 2900mm 3300mm
Wire Diameter 3-8mm&5-12mm 5-12mm 5-12mm
Mesh Length 2-12m 2-12m 2-12m
Cross Wire Space ≥50mm ≥50mm ≥50mm
Line Wire Space 100-200mm 100-200mm 100-200mm
Electric Capacity ≥315KVA ≥315KVA ≥315KVA
Welding Speed 80t/min 80t/min 80t/min
Control System PLC Control PLC Control PLC Control
Special specification is available according to your requirements.


Packaging

1. The main body of the wire mesh welding machine will be packaged with plastic.
2. The anther parts of the wire mesh welding machine,will be packaged with cartons,they will be protected well.
3. If you have another package requirements,we will change it .
