PLC Wire Mesh Spot Welding Machine For Weld Mesh Sheets , Mesh Fence Panel

I'm Online Chat Now

PLC Wire Mesh Spot Welding Machine For Weld Mesh Sheets , Mesh Fence Panel

China PLC Wire Mesh Spot Welding Machine For Weld Mesh Sheets , Mesh Fence Panel supplier
PLC Wire Mesh Spot Welding Machine For Weld Mesh Sheets , Mesh Fence Panel supplier PLC Wire Mesh Spot Welding Machine For Weld Mesh Sheets , Mesh Fence Panel supplier

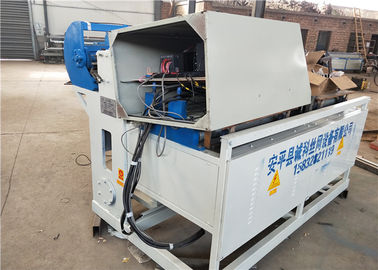

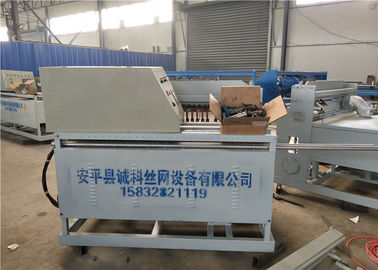

Large Image :  PLC Wire Mesh Spot Welding Machine For Weld Mesh Sheets , Mesh Fence Panel

Product Details:

Place of Origin: Anping China
Brand Name: chengke
Certification: IOS
Model Number: CK-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 10000 - 30000USD
Packaging Details: no
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Brand Name: Fence Mesh Welding Machine For Weld Mesh Sheets , Mesh Fence Panel Control: PLC
Condition: New Voltage: 380V/440V/415V/220V
Color: Customized Warranty: One Year
High Light:

fence panel making machine

,

diamond mesh fencing machine

Fence Mesh Welding Machine For Weld Mesh Sheets , Mesh Fence Panel





description



This machine has multi spot welding function, advanced control system enables the machine to weld the mesh in any sequence or any way. Using high quality air cylinder to provide welding force, the output is much more stable and durable than conventional mechanical type welding machines.Also machine features can be made by your idea together with our engineer technique support.Varies materials can be welded: weld mild steel wire, stainless wire, galvanized steel wire.Mesh panels: weld construction mesh panel, fridge shelf panel, shelf rack mesh panel, reinforcing mesh panelsMesh production line: producing rolled mesh in varies size.All kinds of mesh products: weld cage for bird, pet cage welding, mesh trolley welding, weld wire mesh basket, wire tray, fridge condensers, cable tray mesh etc.



advantages



1. Feeding material:

The warp wire and weft wire are straightened and cutted from coil wire material ,realized by auto straightening and cutting machine.

The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system
2. Welding mesh panel system:

The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Mitsubishi PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet
3. Drawing mesh panel system:

Panasonic ( Japan ) step motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.



Technical Parameters:



Model ck-1200A ck-1200B
Input power 380V 50 Hz 380V 50 Hz
Max. width 1200mm 1200mm
Line wire space 25—200mm 25—200mm
Cross wire space 25—200mm 25—200mm
Line wire diameter 2—5mm 2—5mm
Cross wire diameter 2—5mm 2—5mm
Rated capacity 60kva*2 60kva*2
Welding point No. 16 16
Motor power 2.2kw 2.2kw
Feed line wire pre-cut wire pre-cut wire
Feed cross wire pre-cut wire Coils wire
Cutting mesh Automatic & manual Automatic & manual
Welding speed 55times/min 80times/min
Weight 2500kg 3500kg
Dimension(l*W*H) 2500*1800*1400mm 2500*1800*1500mm




Usage



Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .





packaging



1. Use the steel wire to fasten the easy damages parts to keep its safety and not be hit during the ship
2. The main machine and auxilary equipment with plastic ,then put the spare parts into wooden box
