Holland Fence Mesh Welding Machine Roll Net Welding With PLC Control System

I'm Online Chat Now

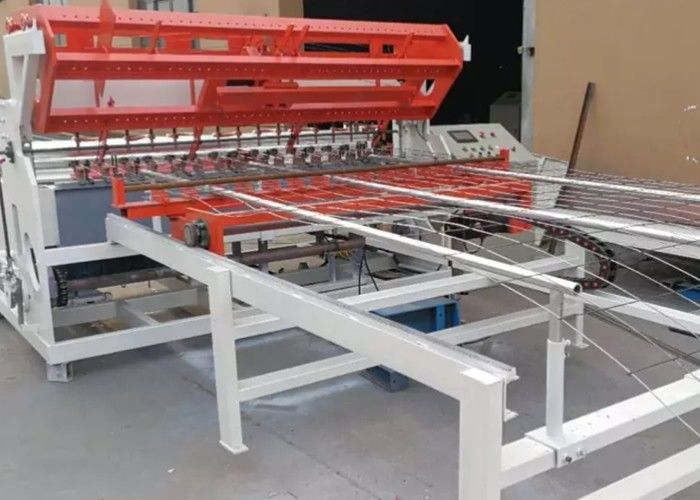

Holland Fence Mesh Welding Machine Roll Net Welding With PLC Control System

China Holland Fence Mesh Welding Machine Roll Net Welding With PLC Control System supplier
Holland Fence Mesh Welding Machine Roll Net Welding With PLC Control System supplier Holland Fence Mesh Welding Machine Roll Net Welding With PLC Control System supplier

Large Image :  Holland Fence Mesh Welding Machine Roll Net Welding With PLC Control System

Product Details:

Place of Origin: Anping China
Brand Name: chengke
Certification: IOS
Model Number: CK-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 10000 - 30000USD
Packaging Details: no
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Brand Name: Holland Wire Mesh Welding Machine Control: PLC
Condition: New Voltage: 380V/440V/415V/220V
Color: Customized Warranty: One Year
High Light:

fence panel making machine

,

diamond mesh fencing machine



Holland Fence Mesh Welding Machine Roll Net Welding With PLC Control System



Holland Wire Mesh Welding Machine Fence Mesh Welding Machine Roll Net Welding Machine





Introduction :



The steel wire mesh welding line may produce livestock breeding mesh and suitable for producing small specification of mesh and small diameter of wire processing , with quickly, accurate and reliable welding.



Specification:



1, the machine mesh a maximum width of 2.5 meters.

2, welding diameter 2.5MM--7MM

3, the machine mesh Maximum length: 6m

4, the maximum number of welds: 35 beats / min

5, welded longitudinal reinforcement spacing: 50 -100-150 mm

6, welding transverse reinforcement spacing: 50 -75-100-150-200 mm

7, Welding Material requirements: Q195F such as carbon content lower than the phase wires on the standard annealing

8, the number of solder joints: 50 (first choice according to need autonomy)

9 Rated Power: 200kva × 6

10, This machine is widely used in railway fence, highway fence, bridge high-rise buildings, etc. mesh welding.



Machine components:



1 host: including welded mesh body weft blanking parts

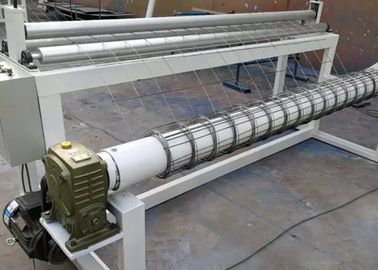

2 attached to machines: dragnet institutions

3 Auxiliary equipment: Straightening Machine



Technical Parameters:





Items Automatic Wire Mesh Welding Machine(DNW-4)
Wire Diameter 2.5-6.0mm 2.5-6.0mm 2.5-6.0mm 2.5-6.0mm
Welding Width 1500mm 2000mm 2500mm 3000mm
Weft Spacing 50-300mm 50-300mm 50-300mm 50-300mm
Warp Spacing 50-300mm 50-300mm 50-300mm 50-300mm
Welding Speed 60times/min 60times/min 60times/min 60times/min
Welding Point 31 41 51 61
Rated Power 160KVA x 4 160KVA x 5 160KVA x 6 160KVA x 7
Rated Voltage 380V 380V 380V 380V
Weight 2.0T 2.5T 3.0T 3.5T
Length 6000mm 6000mm 6000mm 6000mm
Note: Special type can be made according to client's requirement.



Usage



Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .





packaging



1. Use the steel wire to fasten the easy damages parts to keep its safety and not be hit during the ship
2. The main machine and auxilary equipment with plastic ,then put the spare parts into wooden box
