Panel Electronic Control Fence Mesh Welding Machine , Net Welding Machine

I'm Online Chat Now

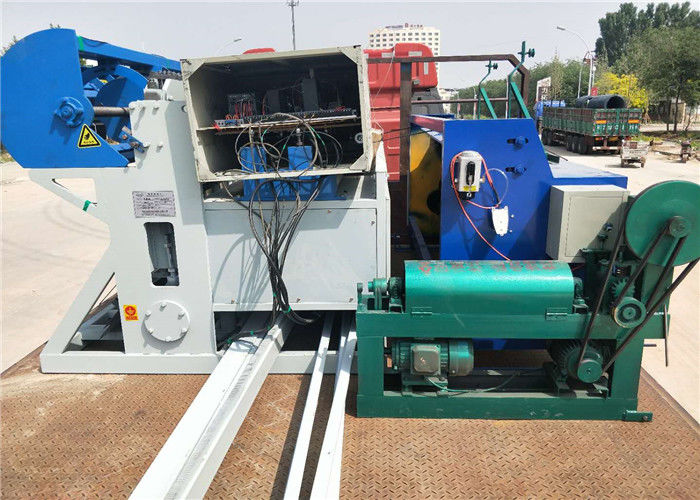

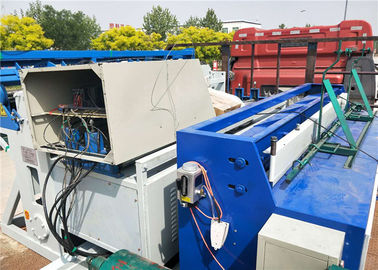

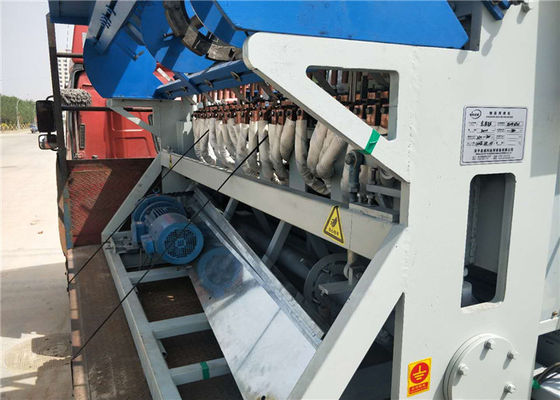

Panel Electronic Control Fence Mesh Welding Machine , Net Welding Machine

China Panel Electronic Control Fence Mesh Welding Machine , Net Welding Machine supplier
Panel Electronic Control Fence Mesh Welding Machine , Net Welding Machine supplier Panel Electronic Control Fence Mesh Welding Machine , Net Welding Machine supplier Panel Electronic Control Fence Mesh Welding Machine , Net Welding Machine supplier Panel Electronic Control Fence Mesh Welding Machine , Net Welding Machine supplier

Large Image :  Panel Electronic Control Fence Mesh Welding Machine , Net Welding Machine

Product Details:

Place of Origin: Anping China
Brand Name: chengke
Certification: IOS
Model Number: CK-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 10000 - 30000USD
Packaging Details: no
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Brand Name: Panel Electronic Control Fence Mesh Welding Machine Control: PLC
Condition: New Cooling System: Water Ooling
Color: Customized Warranty: One Year
High Light:

fence panel making machine

,

diamond mesh fencing machine





Panel Electronic Control Fence Mesh Welding Machine Net Welding Machine



Fence mesh welding machine, also called security fence machine, anti-climb fence welding machine, used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc



description



This machine has multi spot welding function, advanced control system enables the machine to weld the mesh in any sequence or any way. Using high quality air cylinder to provide welding force, the output is much more stable and durable than conventional mechanical type welding machines.Also machine features can be made by your idea together with our engineer technique support.Varies materials can be welded: weld mild steel wire, stainless wire, galvanized steel wire.Mesh panels: weld construction mesh panel, fridge shelf panel, shelf rack mesh panel, reinforcing mesh panelsMesh production line: producing rolled mesh in varies size.All kinds of mesh products: weld cage for bird, pet cage welding, mesh trolley welding, weld wire mesh basket, wire tray, fridge condensers, cable tray mesh etc.



Technical Parameters:



Model ck-1200A ck-1200B
Input power 380V 50 Hz 380V 50 Hz
Max. width 1200mm 1200mm
Line wire space 25—200mm 25—200mm
Cross wire space 25—200mm 25—200mm
Line wire diameter 2—5mm 2—5mm
Cross wire diameter 2—5mm 2—5mm
Rated capacity 60kva*2 60kva*2
Welding point No. 16 16
Motor power 2.2kw 2.2kw
Feed line wire pre-cut wire pre-cut wire
Feed cross wire pre-cut wire Coils wire
Cutting mesh Automatic & manual Automatic & manual
Welding speed 55times/min 80times/min
Weight 2500kg 3500kg
Dimension(l*W*H) 2500*1800*1400mm 2500*1800*1500mm



Application



1. This machine adopts electrical & electronic control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit.

2. The operation is accurate, it has stable function, firm welded point, without welded tracks.

3. Easy to learn and operate, high speed, low price

4. The machine is equipped with precise equipment for weft cutting positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side.

5.Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.



Usage



Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .
