High Speed CNC Fence Mesh Welding Machine High Productivity Anti - Cracking

I'm Online Chat Now

High Speed CNC Fence Mesh Welding Machine High Productivity Anti - Cracking

China High Speed CNC Fence Mesh Welding Machine High Productivity Anti - Cracking supplier
High Speed CNC Fence Mesh Welding Machine High Productivity Anti - Cracking supplier High Speed CNC Fence Mesh Welding Machine High Productivity Anti - Cracking supplier High Speed CNC Fence Mesh Welding Machine High Productivity Anti - Cracking supplier High Speed CNC Fence Mesh Welding Machine High Productivity Anti - Cracking supplier

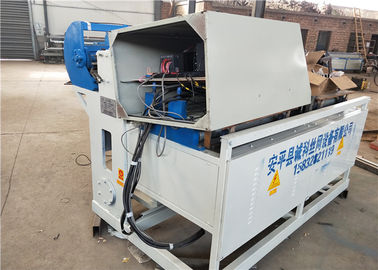

Large Image :  High Speed CNC Fence Mesh Welding Machine High Productivity Anti - Cracking

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-FM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Color: Blue,white Name: High Speed Stability CNC Fence Mesh Welding Machine
Fence Height: Max.2.5m After-sales: Overseas Service Provided
Wire Diameter: 3-6mm Brand Name: ChengKe
High Light:

fence panel making machine

,

diamond mesh fencing machine

High Speed Stability CNC Fence Mesh Welding Machine Used Panasonic Servo Motor





Description


High Speed Stability CNC Fence Mesh Welding Machine Used Panasonic Servo Motorare special designed for high quality reqirement wire mesh fence panels.



Features



All the pneumatic components used are with world famous brand. For customers, it is very easy to get the parts locally.
Welding power
The welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper.
Feeding system
The line wire and the weft wire are pre-straight and pre-cut, and the cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture size more accurate.
Controlling system
wire mesh machine uses synchronous control technique, welding time and separate welding adopt Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel.
Mesh pulling system
The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.



Specification



Wire mesh panel width 2500mm or made to order
Wire mesh panel length Any length
Wire diameter 3-6mm
Line wire distance 50-200mm
Cross wire distance ≥50mm
Welding speed 40-60 times /min
Voltage 380V 50Hz
Wire material Low carbon steel wire
Wire surface status Clean surface, steel wire or galvanized wire
The Wire Mesh Welding Machine is also able to be made to order according to customer’s requirement.
