| Type: | Welding Wire Machine | Usage: | Industrial Mesh Fence Mesh And Light Mesh |
|---|---|---|---|
| Color: | Customer's Requirment | Warranty: | 1 Year |
| After-sales: | Engineers Available To Service Machinery Overseas | Weight: | 3T |
| High Light: | diamond mesh fencing machine,hexagonal wire mesh machine |
||

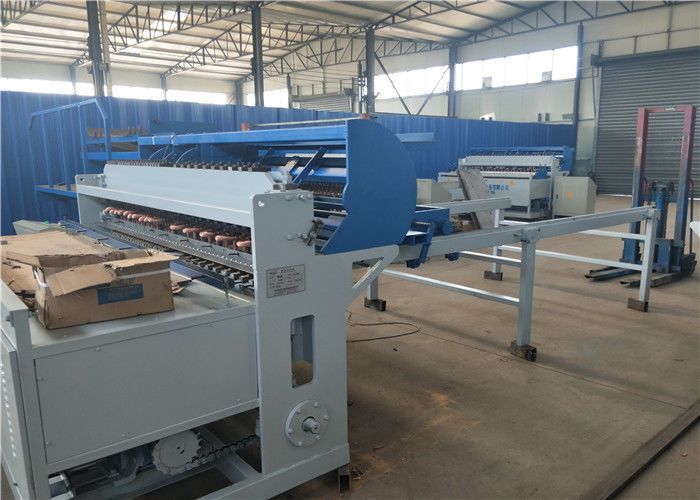

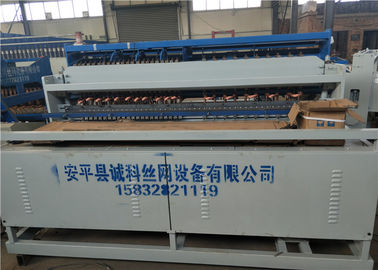

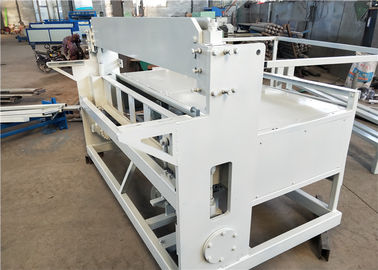

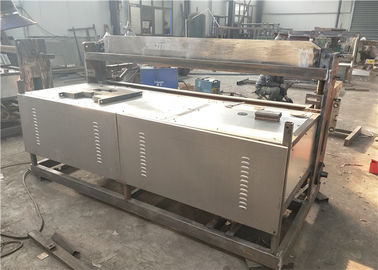

Fence Mesh Panel Welding Machine For Industrial Mesh Fence Mesh and Light Mesh
Description
1. The feeding system: the machine equipped with automatic wire straightening cutting device. This device straighten and cut wires into fixed length. Then worker put those wires into hopper, the wires will falling automatically.
2. The welding system: the machine adopts synchronous control technique, welding time and sub-control welding are all composed of digital integrated circuit, which has stable function, firm welded
points and without welded tracks.
3. The mesh pulling system: The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate. This automatic pulling device can be separated from the welded machine.
advantages
1. the wires feeding automatically
2. it has stable funcation, firm welded point and without welded tracks
3. less noise, higher speed, high efficiency
Application
1. Suitable materials: Stainless steel wire, low-carbon steel wire, galvanized wire, iron wire, rebar
2. The mesh application: Fencing mesh (highway, railway, farming fence mesh), construction mesh
parameters
| Welding wire by | 2.5-6mm |
| Welding width | 2.5m(customizable) |
| welding spot | 48(customizable) |
| Mesh | 50-200mm(customizable) |
| Welding speed | 45-90(times / minute) |
| Electricity capacity | 6*125kva |
Packaging
1. The main machine is nude packing or plastic film packing.
2. The spare parts and control cabinet will be loaded in wooden box.
Services
1. technique service:If the buyers need, we can send our technical staff to the buyers’ place to debug the machine and providing the training in 30 days after the machines arrive at the destination port.
2. Maintenance period:one year exclusive of wearing parts
3. The numbers of service personel: one technical service person per machines at most
4. Fees: The buyer have to pay the salary of 100 dollar a day to the technician , and the air ticket, accommodation,meals and some related fees should be your responsibility.
5. During maintenance period: if the parts are broken caused by the product problem, seller will offer new parts by free. If our technician need to maintain in factory the buyer should be responsible for correlative expense.
