Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Fence Mesh Welding Machine | Color: | Blue,white |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 2T |
| Condition: | New | After-sales: | Overseas Service Provided |
| High Light: | diamond mesh fencing machine,hexagonal wire mesh machine |
||

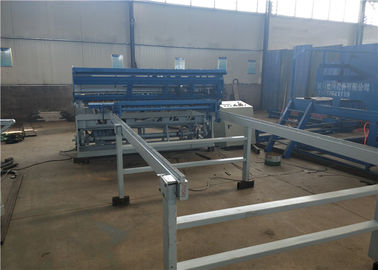

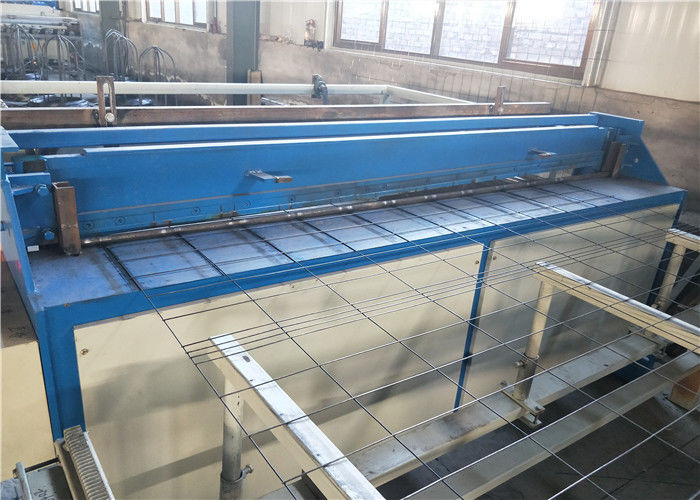

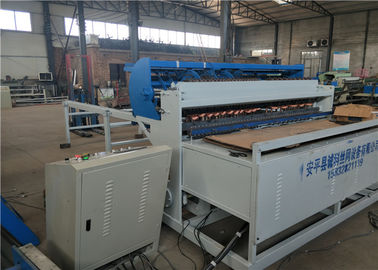

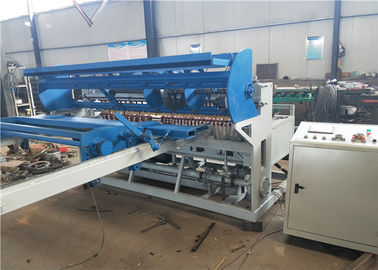

Automatic Fence Mesh Welding Machine Used For Railway / Highway Protection
Description
Main welding machine and welding torch two parts, welding torch by 50-200 mm2 cable connected to the host for electrical switch cabinets, computer tables and chairs, steel mesh welding, car shell and other parts of the inconvenience to move or ordinary welder Welding pole can not reach the site. Special specifications can be customized.
Features
1. Output power strong, stable, reliable;
2 can be completed at one welding multiple welds;
3. Can adjust the descending and rising speed of the pressure head, easing the pressure impact on the workpiece, but also reduce the noise;
4 secondary conductor using the upper insulation, reliable insulation performance;
5. Upper electrode adopts cylinder pressure, pressure adjustment is convenient and accurate;
6. Operation by the foot switch control, with high productivity, low labor intensity;
7. Applicable metal mesh and mesh welding.
8. fence welding machine is widely used in railway fence, highway Fence Bridge higher mesh welding. The whole computer and PLC programming controller control, high degree of automation. Weldable hot-rolled ribbed, cold-rolled ribbed, hot-rolled round, cold-rolled round, and other materials, wide adaptability. According to user power consumption, using one or sub-welding, flexibility. The unit is designed to be detachable structure for the convenience of specification adjustment and maintenance. Transformer, SCR, upper and lower electrodes and other welding systems using forced water cooling and flow protection device, the unit can reliably work continuously. Pneumatic pressure welding stepless adjustable, fast response to changes in steel specifications; uniform welding pressure to ensure that the quality of all solder joints. Welding standard stereotypes network, the upper and lower electrode without the need to adjust the location, so that time-free price pitch change. Greatly increase the actual productivity
parameter
| Welding wire diameter | 2.5-6mm |
| Welding aperture | 50 * 50-300 * 300mm |
| Welding width | 2000mm |
| The number of warps | 40 |
| Welding speed | 30 (times / minute) |
| Rated voltage | 380V |
| Rated power | 400KVA |
| Machine weight | 3T |
