Double Edge High Speed Barbed Wire Machine , High Accuracy Razor Barbed Wire Machine

I'm Online Chat Now

Double Edge High Speed Barbed Wire Machine , High Accuracy Razor Barbed Wire Machine

China Double Edge High Speed Barbed Wire Machine , High Accuracy Razor Barbed Wire Machine supplier
Double Edge High Speed Barbed Wire Machine , High Accuracy Razor Barbed Wire Machine supplier Double Edge High Speed Barbed Wire Machine , High Accuracy Razor Barbed Wire Machine supplier Double Edge High Speed Barbed Wire Machine , High Accuracy Razor Barbed Wire Machine supplier Double Edge High Speed Barbed Wire Machine , High Accuracy Razor Barbed Wire Machine supplier

Large Image :  Double Edge High Speed Barbed Wire Machine , High Accuracy Razor Barbed Wire Machine

Product Details:

Place of Origin: Anping China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35 sets
Contact Now
Detailed Product Description
Warranty: 1 Year Color: Your Request
Product Name: High Speed Double Edge Razor Barbed Wire Machine After-sales: Overseas Service Provided
Rated Voltage: 380V Power: 2.2 Kw
High Light:

high speed barbed wire machine

,

razor wire making machine

High Speed Double Edge Razor Barbed Wire Machine Easy Operate , easy Maintain





Description

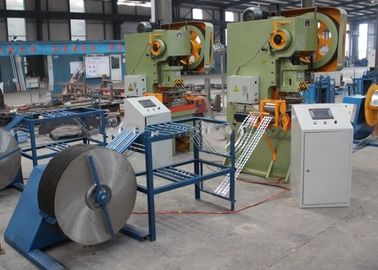

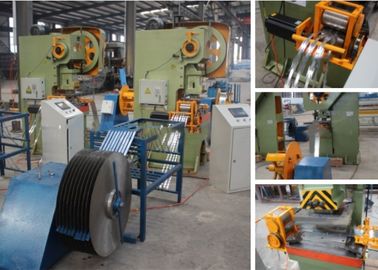

Razor barbed netting machine, also named as razor barbed wire machine, is specially used to manufacture razorbarbed wires.It mainly consists of punching razor strip machine,coiling wire machine and mould.The punchingrazor strip machine is used as punching the outside razor strip of razor wire .The coiling wire machine is usedas coiling the wire into the razor strip to form the finished razor wire .The mould decide the razor length ,widththe space.



Features



1. With high efficiency and good quality,

2. the machine is compact in structure and small in size.
3. Easy to operate

4. easy to adjust

5. easy to maintain

6. low energy consumption.

Usage

Razor wire is mainly used for safe isolation of military facilities,communications stations,power transformer substation,and territorial prison,dump site,community protection, school,factories and farms.



information

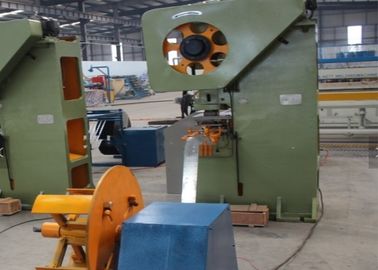

Punching razor strip machine

Type

25T punching press

(5 strips choice)

40T punching press (9 strips choice)
Producing speed 220-280m/h 220-280m/h
Power 2.2KW 3.0KW
Rated Voltage 380V,50HZ 380V,50HZ
Overal Diamension 1325MMX990MMX21400MM 1600x1180x2310
Weight 1.9T 3.2T

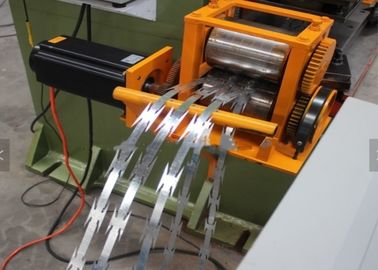

Coiling Wire Machine

Overal Diamension L*W*H:1100mmx750mmx1200mm
Rated Voltage 380V
Power 1.5kw
Producing speed 80kg/h
