| Product Name: | Stainless Steel Wire Barbed Wire Making Machine | Condition: | New |
|---|---|---|---|
| Strand Diameter: | 1.6-3.0 Mm | After-sales: | Overseas Service Provided |
| Warranty: | 1 Year | Motor: | 3 Kw |
| High Light: | barbed wire manufacturing machine,razor wire making machine |
||

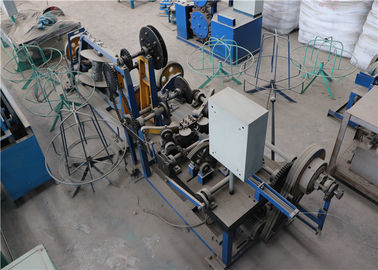

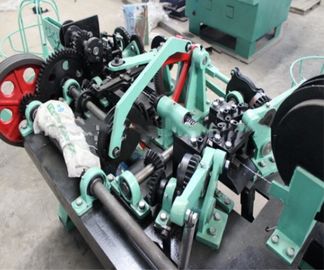

Electric Galvanized Barbed Wire Making Machine CE / ISO9001 Approved
Description
It is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality with compact structure, small volume, easy operation and regulation, convenient maintenance and low power consumption
The material can be galvanized wire, pvc coated iron wire ,etc
The products are most used in highway, railway, grassland parapet and other places.

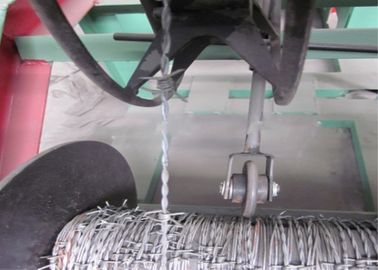

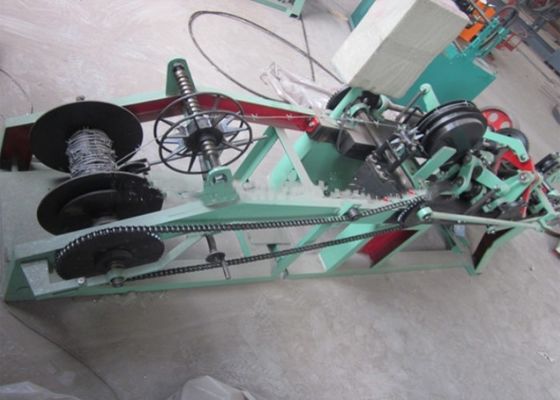

One full set machine contains two parts :Wire Collection Part and Wire Collection And Twisting Part ,we will supply 4 sets wire rollers also
Machine types:
1.CSA -double wires with normal twisted ways
2.CSB-double wires with straight and reverse twisted ways
3.CSC-single wire with normal twisted ways
Features
1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate length of barbed wire.
5. Button swithes and leveler to start and stop machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.
Uses
Widely used in military field,Prisons,Detention houses, Government Buildings, National Security Facilities.
Fencing of Residences,Villa Wall and Windows,Express Way,Railway,National Border Lines.
information
1. CS-A type Barbed Wire Machine
| No. | Item | Units | Parameters |
| 1 | Motor power | KW | 3 |
| 2 | Main drive shaft speed | r/min | 402 |
| 3 | Strand wire diameter | mm | 2.2-3.0 |
| 4 | Barbed wire diameter | mm | 1.8-2.2 |
| 5 | Barb distance | Mm | 76(3”) 102(4”) 127(5”) |
| 6 | Twist number | Pcs | 3.5 |
| 7 | Theoretical output | Kg/h | 70 |
| 8 | Total weight | Kg | 1200 |
| 9 | Dimension of main part | mm | 1950*950*1300 |
| 10 | Dimension of take-twisting part | mm | 1760*550*760 |
2. CS-B type Single Strand Barbed Wire Machine
| No. | Item | Units | Parameters |
| 1 | Motor power | KW | 2.2 |
| 2 | Main drive shaft speed | r/min | 355 |
| 3 | Strand wire diameter | mm | 2.2-3.0 |
| 4 | Barbed wire diameter | mm | 1.8-2.2 |
| 5 | Barb distance | Mm | 102(4”) 127(5”) |
| 6 | Theoretical output | Kg/h | 40 |
| 7 | Total weight | Kg | 1000 |
| 8 | Dimension | mm | 3100*1000*1150 |
3. CS-C type Straight and Reverse Twisted Barbed Wire Machine
| No. | Item | Units | Parameters |
| 1 | Motor power | KW | 2.2 |
| 2 | Main drive shaft speed | r/min | 355 |
| 3 | Strand wire diameter | mm | 1.6-2.8 |
| 4 | Barbed wire diameter | mm | 1.6-2.2 |
| 5 | Barb distance | Mm | 102(4”) 127(5”) |
| 6 | Twist number | Pcs | 7 |
| 7 | Theoretical output | Kg/h | 40 |
| 8 | Total weight | Kg | 1000 |
| 9 | Dimension | mm | 3000*1000*1150 |
