CNC Razor Barbed Wire Making Machine PLC Control High Productivity Low Maintenance

I'm Online Chat Now

CNC Razor Barbed Wire Making Machine PLC Control High Productivity Low Maintenance

China CNC Razor Barbed Wire Making Machine PLC Control High Productivity Low Maintenance supplier
CNC Razor Barbed Wire Making Machine PLC Control High Productivity Low Maintenance supplier CNC Razor Barbed Wire Making Machine PLC Control High Productivity Low Maintenance supplier CNC Razor Barbed Wire Making Machine PLC Control High Productivity Low Maintenance supplier CNC Razor Barbed Wire Making Machine PLC Control High Productivity Low Maintenance supplier

Large Image :  CNC Razor Barbed Wire Making Machine PLC Control High Productivity Low Maintenance

Product Details:

Place of Origin: Anping China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35 sets
Contact Now
Detailed Product Description
Warranty: 1 Year Sheet Thickness: 0.4-0.6 Mm
Product Name: Fully - Automatic Heavy Duty Razor Wire Making Machine After-sales: Overseas Service Provided
Rated Voltage: 380V Punching Speed: 100-120 Times Per Min
High Light:

barbed wire manufacturing machine

,

razor wire making machine

Automatic CNC plc Controller Razor Barb Wire Making Machine High Production





Description



1. > Razor wire machine, also named as razor barbed wire machine, is specially used to manufacture razor barbed wires. It mainly consists of punching razor strip machine, coiling wire machine and mould.

2. > Whole production line:

Decoiler→ Punching machine→ Razor strip drawing shelf→ Razor strip collector→ Razor strip laying shelf and wire pay-off stand→ Wire coiling machine→ Finished razor wire collector

3. > Steps: 1. The punching razor strip machine is used as punching the outside razor strip of razor wire.

2. The coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire.

3. The mould decide the razor length, width the space.

4 .> Finished product usage:

The razor wire is mainly used for safe isolation of military facilities, communications stations, power transformer substation, and territorial prison, dump site, community protection, school, factories and farms.



Advantage



CNC razor barbed wire machine is specially used to make razor barbed wires. It mainly consists of CNC plc controller punching razor strip machine,coiling wire machine with frequency inverter and Cr12MOV Mold. The punching razor strip machineis used as punching the outside razor strip of razor wire. The coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire.The mold decide razor length,width the space.CNC razor barbed wire machine is specially used to make razor barbed wires. It mainly consists of CNC plc controller punching razor strip machine,coiling wire machine with frequency inverter and Cr12MOV Mold. The punching razor strip machineis used as punching the outside razor strip of razor wire. The coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire.The mold decide razor length,width the space.



information

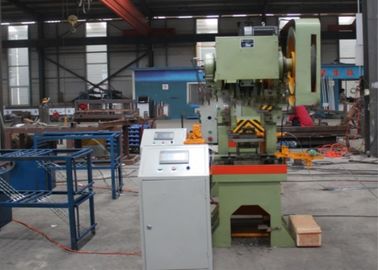

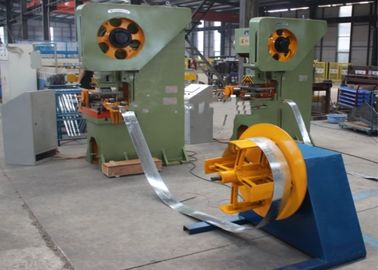

Punching machine

Model Five strip
Voltage 380V, 50Hz or client’s required voltage
Power 2.2kw
Producing speed 220-280m/h
Thickness 0.5±0.05mm
Pressure 25T
Weight 1500Kg
Dimension 1200mm×1000mm×1900mm

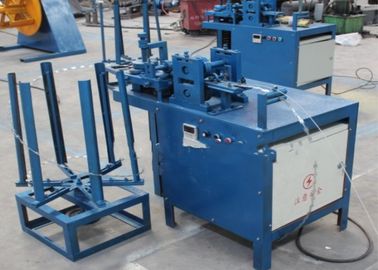

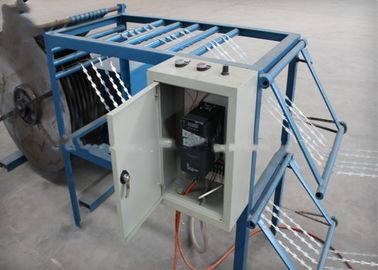

Coiling machine

Voltage 380V, 50Hz,or client’s required voltage
Power 1.5kw
Producing speed 80Kg/h
Wire diameter 2.5mm
Weight 300Kg
Dimension 1100mm×750mm×1200mm



Mould

Mould type Barb Length Barb width Barb spacing
R1 12±1mm 13±1mm 26±1mm
R2 12±1mm 15±1mm 26±1mm
R3 18±1mm 15±1mm 33±1mm
R4 22±1mm 15±1mm 34±1mm
R5 28±1mm 15±1mm 34±1mm
R6 30±1mm 18±1mm 34±1mm
R7 60±1mm 32±1mm 96±1mm
R8 65±1mm 21±1mm 100±1mm



Usage



Concertina razor wire production is widely used in the field of safety isolation for military facilities, radio stations, power distribution substation, frontiers, prisons, residential areas, schools, factories and farms, etc.
