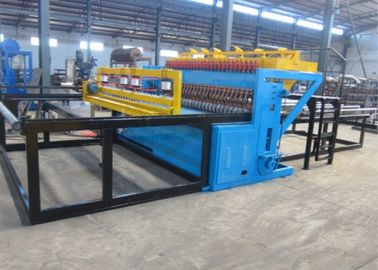

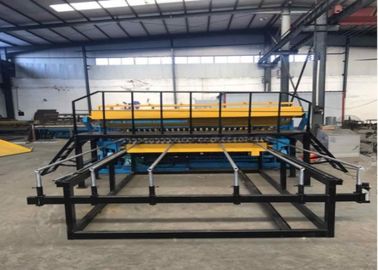

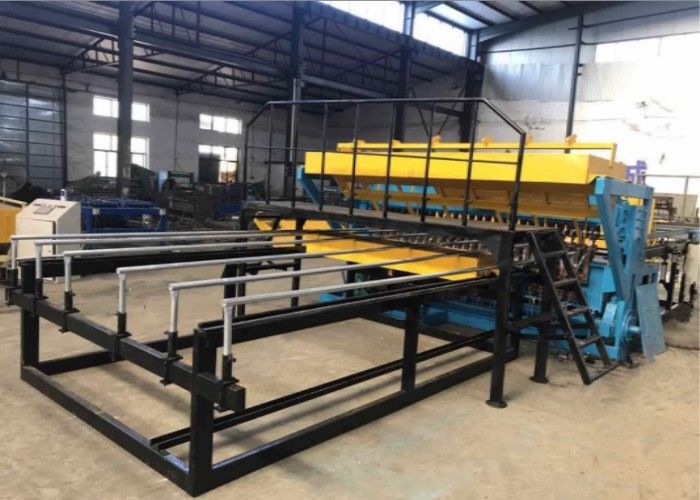

315KVA Wire Spot Welding Machine , PLC Control Automatic Wire Mesh Welding Machine

Large Image : 315KVA Wire Spot Welding Machine , PLC Control Automatic Wire Mesh Welding Machine

Product Details:

Place of Origin:	Heibei China
Brand Name:	Chengke
Certification:	ISO
Model Number:	CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	plastic warps
Delivery Time:	15 Workdays
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	25 Sets/Month

Contact Now

Detailed Product Description

Product Name:	Reinforcing Mesh Production Welding Machine	Width:	Max 2.5m As Required
Wire Diameter:	5-12mm	Voltage:	380V
After-sales:	Engineers Available To Service Machinery Overseas	Aperture:	100-300
High Light:	automatic wire mesh welding machine , mesh panel welding machine

Reinforcing Mesh Production Welding Machine CE / ISO9001 Approved

description

This machine has multi spot welding function, advanced control system enables the machine to weld the mesh in any sequence or any way. Using high quality air cylinder to provide welding force, the output is much more stable and durable than conventional mechanical type welding machines.Also machine features can be made by your idea together with our engineer technique support.Varies materials can be welded: weld mild steel wire, stainless wire, galvanized steel wire.Mesh panels: weld construction mesh panel, fridge shelf panel, shelf rack mesh panel, reinforcing mesh panelsMesh production line: producing rolled mesh in varies size.All kinds of mesh products: weld cage for bird, pet cage welding, mesh trolley welding, weld wire mesh basket, wire tray, fridge condensers, cable tray mesh etc.

Features

1. Easy to operate: to finish one panel mesh, only need to turn on one auto-running button.

2. unique design of the cross wire input hopper: the machine will stop if there are no wires or abnormal happens, and it will run, when everything is OK.

3. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality.

4. main motor servo control: with Delta VE high-end frequency concerter and PG card to make the main motor 0-1500r/min increase or decrease speed is 0.02s, zero speed, could 200% torque run, ensure the quick reaction of the machine.(motor with Omron encoder)

5. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.

6. mesh output device: with Panasonic servo motor and planetary gear, ensure the system stability and end products precision.

7. automatic back to zero: the machine finished products, the mesh output device will automatically back to zero.

8. automatic turn on: with line wire input device, after finishing send the line wires, the machine will automatically turn on the machine.

9. failure display: when the machine fail, it will show on the touch screen(HMI) in english, very easy to maintain.

10. parameter set: all the parameter could be set on the touch screen in English.

11. all the spare parts are from famous brand at home and abroad.

Specification

Item	CK-RM-2500	CK-RM-2900	CK-RM-3300
Number of Electrodes	24	28	32
Max. Mesh Width	2500mm	2900mm	3300mm
Wire Diameter	3-8mm&5-12mm	5-12mm	5-12mm
Mesh Length	2-12m	2-12m	2-12m
Cross Wire Space	≥50mm	≥50mm	≥50mm
Line Wire Space	100-200mm	100-200mm	100-200mm
Electric Capacity	≥315KVA	≥315KVA	≥315KVA
Welding Speed	80t/min	80t/min	80t/min
Control System	PLC Control	PLC Control	PLC Control
Special specification is available according to your requirements.

Usage

Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cagesThe production of metal furniture, goods shelf, shopping cart and protective cover

Packaging

1. The main body of the wire mesh welding machine will be packaged with plastic.
2. The anther parts of the wire mesh welding machine,will be packaged with cartons,they will be protected well.
3. If you have another package requirements,we will change it .
