Product Details:
Payment & Shipping Terms:
|
| Color: | Customer's Requirment | Condition: | New |
|---|---|---|---|
| Product Name: | Automatic Galvanized Wire Building Square Hole Mesh Machine | After-sales: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | Speed: | 50-80Times/min |
| High Light: | wire mesh weaving machine,wire netting machine |
||

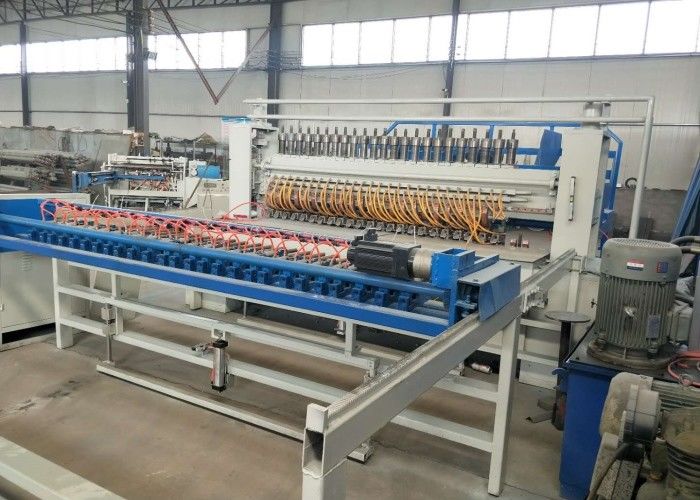

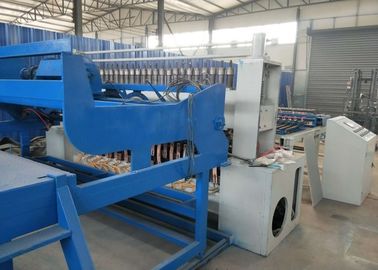

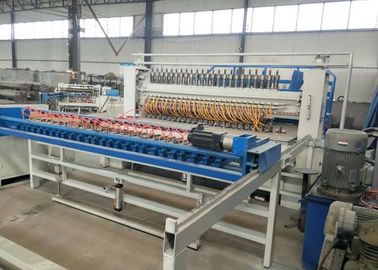

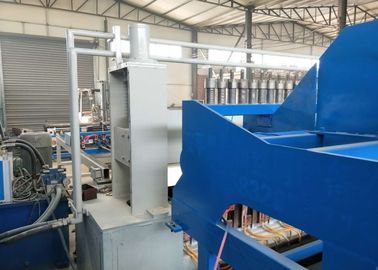

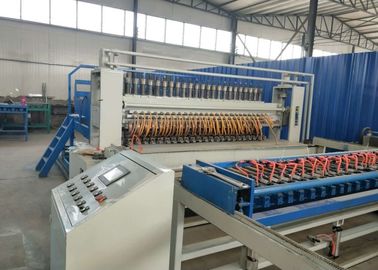

Automatic Galvanized Wire Building Square Hole Mesh Machine
Description
1. This machine adopts synchronous control technique. The center-control and welding time are composed of PLC.
2. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, welding repeatedly.
3. The longitude wires and cross wire distance can be adjusted by inputing the data you want. The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet.
Features
1. The main frame is welded with thick steel plate and section bar, making the main structure more solid and compact.
2. All key parts are made of alloys with heat treatment applied to achieve a very high hardness. Furthermore, the special anti-corrosion treatment is applied for the surface to ensure smooth operation of the parts while preventing corrosion.
3. The welding products are of diversity and the machine can be set according to different production requirements of various kinds, bring flexibility and versatility for customers.
4. The welding adopts new-type high-efficiency welding transformer, which is much more efficient and can make the welding spot more solid compared with traditional transformer.
5. The electric appliances and pneumatic components are all adopt famous brand from foreign countries.
6. Fool-style operation, no matter what kind of operation personnel can easily operate it.
7. About the mesh flatness, this production line adopts the unique welding craft and sophisticated welding control system as well as high-quality copper-cobalt alloy electrodes with special shape, all of which can ensure the flatness of mesh.
parameters
| Automatic Galvanized Wire Building Square Hole Mesh Machine | |
| Wire diameter | 3-8mm |
| Welding width | Max.2500mm |
| Longitude wire space | 100-300mm |
| Cross wire space | Min.50mm |
| Mesh length | Max.12000mm |
| Wire feeding way | Pre-straightened & pre-cut |
| Welding speed | 50-75 times/min |
| Welding electrodes | Max.24pcs |
| Welding transformers | 150kva*6pc |
| Weight | 5.2T |
Usage
1. Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.
2. Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.
3. The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cages
4. The production of metal furniture, goods shelf, shopping cart and protective cover
