Floor Warming Mesh Automatic Chain Link Fence Machine , Modular Welded Wire Mesh Machine

China Floor Warming Mesh Automatic Chain Link Fence Machine , Modular Welded Wire Mesh Machine supplier
Floor Warming Mesh Automatic Chain Link Fence Machine , Modular Welded Wire Mesh Machine supplier Floor Warming Mesh Automatic Chain Link Fence Machine , Modular Welded Wire Mesh Machine supplier Floor Warming Mesh Automatic Chain Link Fence Machine , Modular Welded Wire Mesh Machine supplier

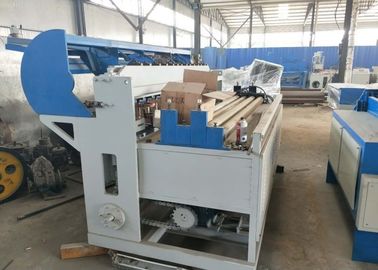

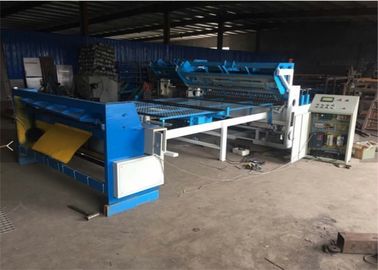

Large Image :  Floor Warming Mesh Automatic Chain Link Fence Machine , Modular Welded Wire Mesh Machine

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CM - 2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: 1.Main machine is in nude package. 2.Spare parts and control cabinet are packed with wooden box.
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Condition: New Voltage: 380v
Product Name: Transformer Water Cooling Building And Constrction Welded Mesh Machine After-sales: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Speed: 50-80Times/min
High Light:

wire mesh weaving machine

,

wire netting machine

Transformer Water Cooling Building And Constrction Welded Mesh Machine





Description



1, This machine is controlled by the special computer, the welding current and welding time in each welding transformer can be individually adjusted. The machine operating interface is made up with color touch screen and control buttons, easy to operate.

2, Host framework structure, stable performance, the welding pressure is continuously adjustable, solid and perfect welding spot.

3,Integrated deceleration electromagnetic brake motors for power, inverter control, adjustable speed.

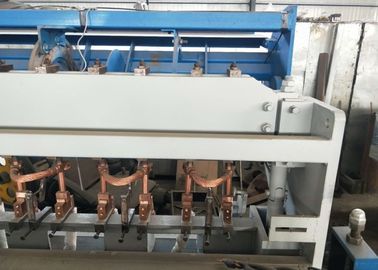

4, Modular design for the upper and lower electrodes, convenient to adjust the mesh.

5, weft-hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of disc device from the large hopper, and the weft hopper is installed in the removable pull rid, convenient to adjust and maintain.

6, The mesh pulling part driven by servo motor can be set a variety of weft space in the same mesh, pull the mesh continuously back and forth to extend the size of mesh, and use pneumatic clamping device to accurate weft spacing.

7, The warp feeding part driven by stepper motor can be fed the warps which a whole mesh needs when welding, so that the machine is very short interval of time.



Features



1. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.
2. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.

3. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.



Uses


Construction mesh , building roof mesh, floor warming mesh, seed-bed mesh, flower room mesh



parameters



 Transformer Water Cooling Building And Constrction Welded Mesh Machine
Wire diameter 3-8mm
Welding width Max.2500mm
Longitude wire space 100-300mm
Cross wire space Min.50mm
Mesh length Max.12000mm
Wire feeding way Pre-straightened & pre-cut
Welding speed 50-75 times/min
Welding electrodes Max.24pcs
Welding transformers 150kva*6pc
Weight 5.2T
