Powerful Deformed Automatic Rebar Stirrup Bending Machine Gw40 Energy Saving

I'm Online Chat Now

Powerful Deformed Automatic Rebar Stirrup Bending Machine Gw40 Energy Saving

China Powerful Deformed Automatic Rebar Stirrup Bending Machine Gw40 Energy Saving supplier
Powerful Deformed Automatic Rebar Stirrup Bending Machine Gw40 Energy Saving supplier Powerful Deformed Automatic Rebar Stirrup Bending Machine Gw40 Energy Saving supplier Powerful Deformed Automatic Rebar Stirrup Bending Machine Gw40 Energy Saving supplier Powerful Deformed Automatic Rebar Stirrup Bending Machine Gw40 Energy Saving supplier

Large Image :  Powerful Deformed Automatic Rebar Stirrup Bending Machine Gw40 Energy Saving

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Automatic Bar Powerful Deformed Bending Machine GW40 / GW50 / GW60 / GW70 Power: 3KW
Frequency: 50 HZ / 60 HZ After-sales: Overseas Service Provided
Voltage: 380V, 415V, 44OV Or Customized Warrany: 1 Year
High Light:

automatic steel bar bending machine

,

rebar bending equipment

Automatic Bar Powerful Deformed Bending Machine GW40 / GW50 / GW60 / GW70




Description


1. Save power, high effiency
2. Suitable for steel bar, round bar, round rod, thread bar.
3. Military quality, CE & ISO9001 certificates had been approved
4. Easy operation, competitive price

5. Convenient for moving

6. Oversea service center available, 12 months warranty



information

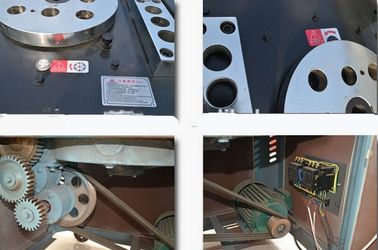

1. The motor, 100% copper motor with speed 1420r/min, normally this motor can work 2 years without breaking;
2. The gear, our gear material ductile iron QT500-7 which have high precision and hardness, promise machine capacity, dural above 5 years. All the gears are fine processed twice;
3. The operation disc material carbon structure steel 45# guarantee the disc long time use with 24 hours;
4. The painting , anti-rust spray painting inside and outside, beautiful and promise long machine life in working condition;

5. It adds eccentric bushing, ultra-high hardness accessories and adjustable baffles, special for different diameter and longer service life.



Used


it is widely used in buildings, bridges, high-speed railway construction project.



Advantages



Model GW40 GW50 GW60 GW70
Bending Diameter Plain carbon steel ≤Φ40mm ≤Φ50mm ≤Φ60mm ≤Φ70mm
Deformed steel ≤Φ32mm ≤Φ40mm ≤Φ50mm ≤Φ65mm
Operation disc spec Φ350mm Φ450mm Φ500mm 600mm
Axis Rotate speed High speed 9.63r/min 2.685r/min 8r/min 7r/min
Low speed 4.68r/min 4r/min 3r/min
Motor power 3KW-4p 4KW-4p 5.5KW-6p 5.5kw-8p
Working voltage 220V~440V 220V~440V 220V~440V 220V~440V
Motor Rotate speed 1440r/min 1440r/min 720r/min 360r/min
Overall Dimension 930x730x710mm 1060×810×720mm 1080×850×740mm 1.2x1x0.95
Whole Weight 350kg 450kg 680kg 980kg
Above parameter just for your reference,if any other special demands,can be customized design based on your demands.
