| Product Name: | PLC Control CNC Stirrup Bender Machine | Voltage: | 380V |
|---|---|---|---|
| Color: | Customer's Requirment | After-sales: | Overseas Service Provided |
| Usage: | Cutting Rule Bending Machine | Warrany: | 1 Year |
| High Light: | automatic steel bar bending machine,cnc wire bending machine |
||

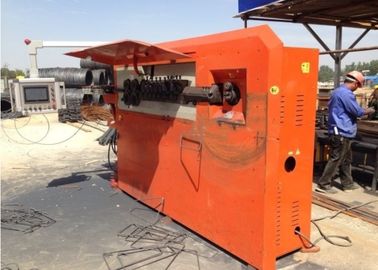

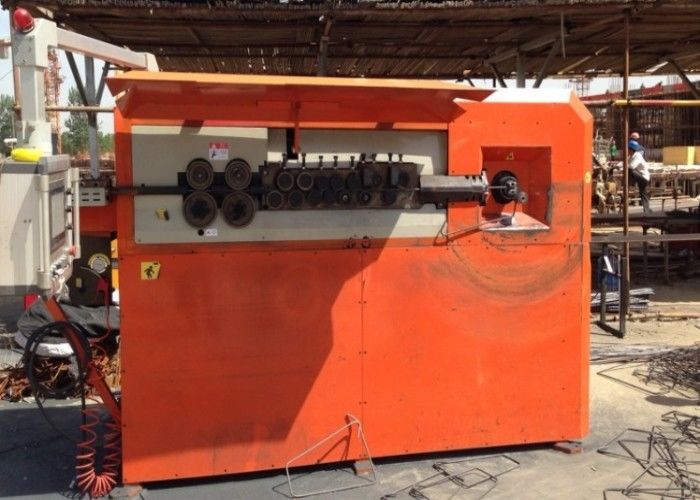

PLC Control CNC Stirrup Bender Machine Used In Building / Bridge Construction Industry
Description
Rebar Stirrup Bending Machineis designed by the experenced engineers.This machine combanate straightening,bending and cuntting three function together,this reduce the number of worrker and enhance the productivity. The wire can bend into any shap in 180°.
Many years enperience of producing this series of machines ensure the high safety during it working. And the design suit human engineering,so the worker can operate conveniently.
This machine is widely used in constrution site,the rebar producing factory and so on. It can work 18 hours continuly.
information
1. Automatic wire feeding system ( CNC );
2. Large storage capacity can save 500 processing geometric graphics, high degree automation;
3. Automatic double wire intake system, high processing efficiency;

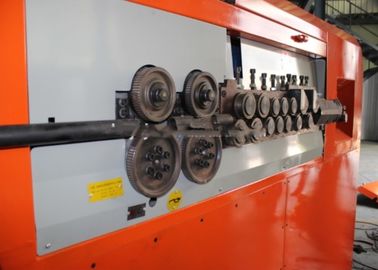

4. High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs;
5. Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast.
Advantages
| Production capacity | Single wire | Φ5 – 12 [mm] |
| Double wire | Φ5 – 10 [mm] | |
| Production capacity per month | 200tons with 10hours/day and 6days/week | |
| Max. bending angle | ±180° [double direction] | |
| Max. bending speed | 1000 [°/sec] | |
| Max. pulling speed | 100 [m/min] | |
| Mandrel diameter | Φ25 – Φ32 [mm] | |
| Max. length of the stirrup side | 950 [mm] | |
| Min. length of the stirrup side | 50 [mm] | |
| Length tolerance | ± 1 [mm] | |
| Bending tolerance | ± 1° | |
| Average air-compressed consumption | 6 [l/min] | |
| Average electric power consumption | 5 [KW] | |
| Labeled electric power | 25 [KW] | |
| Voltage | 415 [V] – 50 [Hz] | |
| Overall machine weight | 2,600 [Kg] | |
| Overall dimension | 8030 × 2005 × 2015 [mm] | |
Used
Steel bar bending machine is an ideal equipment for bending threaded steel bar, smoothly steel bar, flat steel, square steel and angle steel. it is widely used in building, bridge, railway construction industry.
