Electric 900KVA Reinforcing Mesh Welding Machine Welding Speed 45 - 75 Times / Min

I'm Online Chat Now

Electric 900KVA Reinforcing Mesh Welding Machine Welding Speed 45 - 75 Times / Min

China Electric 900KVA Reinforcing Mesh Welding Machine Welding Speed 45 - 75 Times / Min supplier
Electric 900KVA Reinforcing Mesh Welding Machine Welding Speed 45 - 75 Times / Min supplier Electric 900KVA Reinforcing Mesh Welding Machine Welding Speed 45 - 75 Times / Min supplier Electric 900KVA Reinforcing Mesh Welding Machine Welding Speed 45 - 75 Times / Min supplier Electric 900KVA Reinforcing Mesh Welding Machine Welding Speed 45 - 75 Times / Min supplier

Large Image :  Electric 900KVA Reinforcing Mesh Welding Machine Welding Speed 45 - 75 Times / Min

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps
Delivery Time: 15 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25 Sets/Month
Contact Now
Detailed Product Description
Product Name: Top Bottom Water Cold Welded Concrete Reinforcement Steel Bar Mesh Machine Welding Width: Max.2.5mm
Wire Diameter: 5-12mm Cross Wire Space: Min.50mm
After-sales: Engineers Available To Service Machinery Overseas Weight: 9T
High Light:

reinforced mesh welding machine

,

mesh panel welding machine

Top Bottom Water Cold Welded Concrete Reinforcement Steel Bar Mesh Machine


description

The welding apertures are adjustable according to you need. What is more,it can change when the machine is working,because it use the PLC and HMI control systemsynchronization CNC technology, welding time and separate welding are controled by PLC digital programInput panel for touch screen or buttons two kinds, which makes the machine more intelligent andrationalization.weldingtransformer,shifting gear can be divided into eight levels, expand the scope of the diameter of the welding wire.It is easy to operate, and the flexibility is high.
.
Features

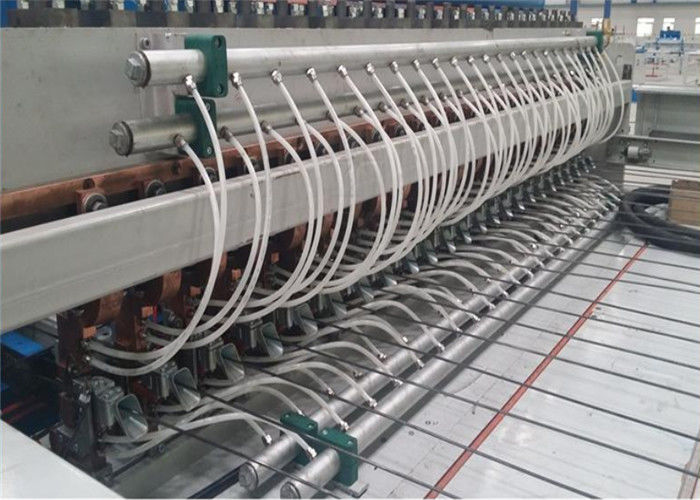

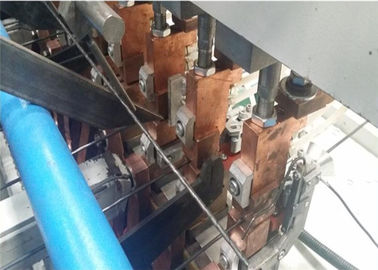

1. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.
2. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.

Specification



Mild Steel Rebar Mesh Welding Machine / Reinforcing Construction Mesh Welding Machine
wire diameter 5-12mm
cross wire length Max 2.5m, or 2m or as required
line wire length Max 12m
Aperture 100-300mm
electric capacity 900KVA
welding speed 45-75 times/min
much more details please contact us



Usage

Construction reinforcing mesh, highway cement concrete pavement using mesh reinforcement , bridge deck pavement using mesh reinforcements, sprayed concrete with mesh reinforcement, tunnel lining with steel mesh
