Thread Concrete Wire Mesh Welding Machine , High Output Mesh Panel Welding Machine

I'm Online Chat Now

Thread Concrete Wire Mesh Welding Machine , High Output Mesh Panel Welding Machine

China Thread Concrete Wire Mesh Welding Machine , High Output Mesh Panel Welding Machine supplier
Thread Concrete Wire Mesh Welding Machine , High Output Mesh Panel Welding Machine supplier Thread Concrete Wire Mesh Welding Machine , High Output Mesh Panel Welding Machine supplier Thread Concrete Wire Mesh Welding Machine , High Output Mesh Panel Welding Machine supplier Thread Concrete Wire Mesh Welding Machine , High Output Mesh Panel Welding Machine supplier

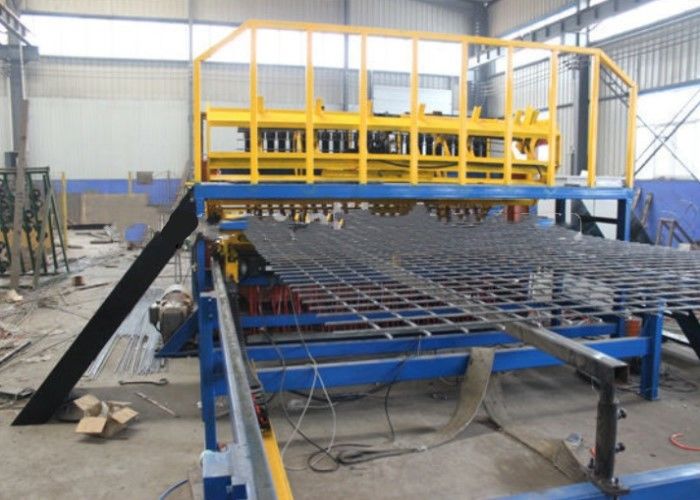

Large Image :  Thread Concrete Wire Mesh Welding Machine , High Output Mesh Panel Welding Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps
Delivery Time: 15 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25 Sets/Month
Contact Now
Detailed Product Description
Product Name: Thread Concrete Reinforcing Wire Mesh Welding Machine Width: Max.2.5mm
Wire Diameter: 5-12mm Voltage: 380V
After-sales: Engineers Available To Service Machinery Overseas Welding Material: Reinforcing Bar
High Light:

reinforced mesh welding machine

,

mesh panel welding machine

Thread Concrete Reinforcing Wire Mesh Welding Machine Solder Joint Firm And Safety


description

This reinforcing mesh welding machine adopts synchronous control technique,welding time and sub-control welding is composed of PLC program system.
Touch screen and keyboard input panel forms make reinforcing mesh welding machine operation more intelling and reasonable.
New and high efficiency of reinforcing mesh welding machine transformer expands welding wire diameter scope .
Mesh drawing system is controlled by stepping motor which improved the precision of mesh opening size,meanwhile the longitudinal and transversal spacing are adjustable.
The cross wire feeding is automatic and derived by step motor,which makes the cross wire alining more accurate and fast.
The line wire and the weft wire are pre-straighte and pre-cut.

.
Features

1. The machine is used for wire diameter 5-12mm, it is an automatic equipment that desiged and manufactured by ourselves. This machine is driven by pneumatic system and composed of line wire support system, water cooling welding transformer, pneumatic control cross wire falling system, servo motor pulling mesh device.

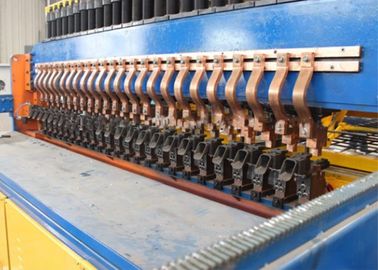

2. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.
3. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.

4. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard
and accurate.
5. Mesh falling system: Automatic falling mesh panel system is adopted, so it save much labor to move the mesh panels.

Specification



ItemCK-RM-2500CK-RM-2900CK-RM-3300
Number of Electrodes242832
Max. Mesh Width2500mm2900mm3300mm
Wire Diameter3-8mm&5-12mm5-12mm5-12mm
Mesh Length2-12m2-12m2-12m
Cross Wire Space≥50mm≥50mm≥50mm
Line Wire Space100-200mm100-200mm100-200mm
Electric Capacity≥315KVA≥315KVA≥315KVA
Welding Speed80t/min80t/min80t/min
Control SystemPLC ControlPLC ControlPLC Control
Special specification is available according to your requirements.


Usage
Construction reinforcing mesh, highway cement concrete pavement using mesh reinforcement , bridge deck pavement using mesh reinforcements, sprayed concrete with mesh reinforcement, tunnel lining with steel mesh
Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.
