LT Series Wet Wire Drawing Machine , Cold Drawn Spiral Water Tank Wire Drawing Machine

I'm Online Chat Now

LT Series Wet Wire Drawing Machine , Cold Drawn Spiral Water Tank Wire Drawing Machine

China LT Series Wet Wire Drawing Machine ,  Cold Drawn Spiral Water Tank Wire Drawing Machine supplier
LT Series Wet Wire Drawing Machine ,  Cold Drawn Spiral Water Tank Wire Drawing Machine supplier LT Series Wet Wire Drawing Machine ,  Cold Drawn Spiral Water Tank Wire Drawing Machine supplier LT Series Wet Wire Drawing Machine ,  Cold Drawn Spiral Water Tank Wire Drawing Machine supplier LT Series Wet Wire Drawing Machine ,  Cold Drawn Spiral Water Tank Wire Drawing Machine supplier

Large Image :  LT Series Wet Wire Drawing Machine , Cold Drawn Spiral Water Tank Wire Drawing Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WD

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Water Tank Steel Wire Drawing Machine Inlet Diameter: 2.2-2. 8 MM
Outlet Diameter: 0.6-0.8 MM Warranty: 1 Year
After-sales: Overseas Service Provided Capacity: 420 M/min

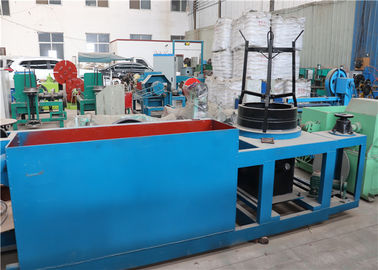

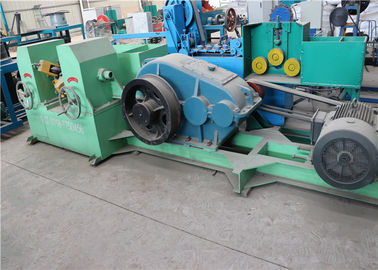

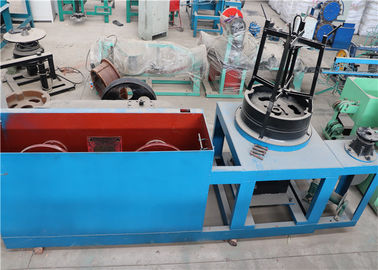

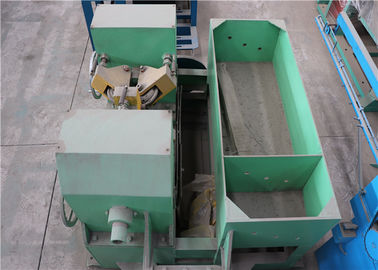

LT Series Wet Wire Drawing Machine / Water Tank Steel Wire Drawing Machine





description



The drawing machine applies advanced international technology,with digestion and absorption, the drawing machine id applicable for high intesity and performance demand. It mainly applied for the production of steel curtain wire,tyre steel wire ,steel wire for rope,spring steel wire ,stainless steel wire etc. The capston diameter of the straight line drawing machine series products is Φ350- Φ1200mm with maxium inlet diameter of Φ14mm and minimum outlet diameter of 0.7mm.



Features



(1) Cooling and lubrication conditions are particularly good, favorable quality of finished steel.

(2) In the small cambinet to complete the multi-pass drawing, compact structure, small occupation.

(3) Excellent working conditions, after drawing steel smooth surface cleaning, can guarantee the quality of galvanized steel wire.

(4) Wet drawing machine is suitable for drawing fine wire.

(5) As the wet drawing machine for drawing friction sliding, consumption of motor power. In addition, the mold, and die technology by high demand.



parameters



Max Inlet size Φ2.8mm
Min Outlet size Φ0.6-0.8mm
Inlet tensile strength ≤1100MPa
Capstan diameter Φ350mm
Line speed 420m/min



Paking



Wire drawing machine package with plastic film outside for main machine,wooden box or carton box for main accessories and tools,or as customer demand.
