Retaining Wall Mesh Steel Wire Mesh Machine , High Output Reinforcing Mesh Machine

I'm Online Chat Now

Retaining Wall Mesh Steel Wire Mesh Machine , High Output Reinforcing Mesh Machine

China Retaining Wall Mesh Steel Wire Mesh Machine , High Output Reinforcing Mesh Machine supplier
Retaining Wall Mesh Steel Wire Mesh Machine , High Output Reinforcing Mesh Machine supplier Retaining Wall Mesh Steel Wire Mesh Machine , High Output Reinforcing Mesh Machine supplier Retaining Wall Mesh Steel Wire Mesh Machine , High Output Reinforcing Mesh Machine supplier Retaining Wall Mesh Steel Wire Mesh Machine , High Output Reinforcing Mesh Machine supplier

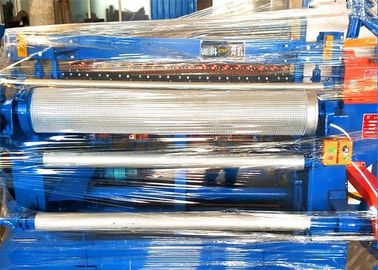

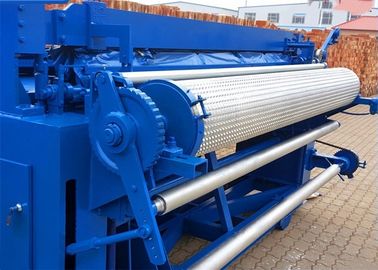

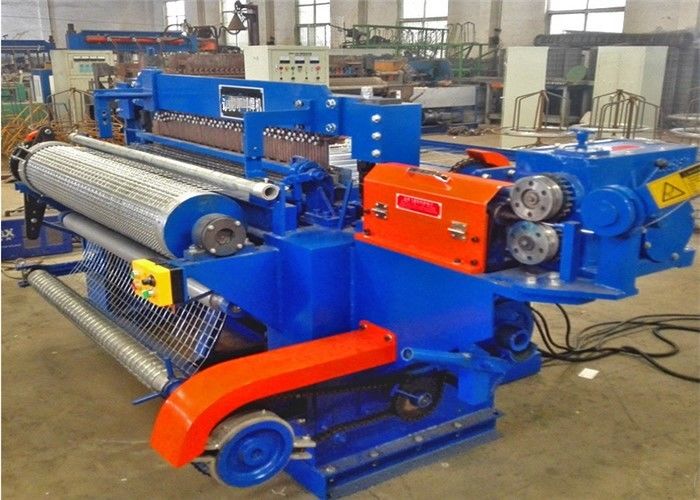

Large Image :  Retaining Wall Mesh Steel Wire Mesh Machine , High Output Reinforcing Mesh Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-1500A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Welded Wire Roll Mesh Machine Wire Diameter: 1.4-2.7mm 0.45-0.85mm
Color: Customer Demand Mesh Width: 1m-2m Or As Required
Aperture: 1/4"-4" As Required After-sales: Overseas Service Provided
High Light:

steel wire mesh welding machine

,

wire mesh making machine

Automatic Welded Wire Mesh Machines for Making Retaining Wall Mesh





description



In the need of production equipment: open rack, welded wire mesh machine, collect material involved in the need of production equipment: open rack, welded wire mesh machine, cutting machine according to the production automation can form a complete set of automatic discharging flip agencies are needed to preset cut straight line production equipment: adjusting cutter (usually 3, according to the need), welded wire mesh machine



Features

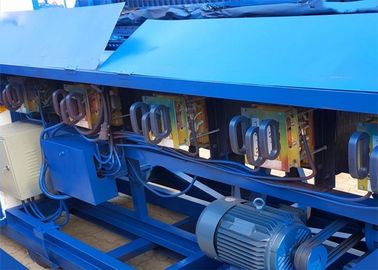

Longitudinal diameter conveying mechanism: the main gear element and electronic components are made by European or Asian longitudinal diameter step institutions: the main gear element and electronic components are made by European or Asian storage rack: longitudinal diameter have a boulder specialized engineers to design and manufacture of the welding system: adopting European technology, the use of special copper belt, improves the conductivity greatly save energy welding cable: adopt European technology, the use of special copper strip, improves the conductivity greatly save energy: professional welding transformer materials imported from Japan, adopting the technology control system: adopting the special anti-interference servo motor and controller according to the control system of famous brand of demand of customers



Classification



1, Welded before Hot-dipped Galvanized

2, Welded before Electro Galvanized

3, Welded with Electro Galvanized Wire

4, Welded with Cold Galvanized Wire



parameter



1.

Mesh(mm) 6.35-12.7 (1/4"-1/2")
With(mm) 914.4-1219.2 (12"-48")
Wire Diameter(mm) Dia.0.45-Dia.1.07 ( BWG25-BWG19)
Production Length per Roll(mm) 120m (400')
Welding Rate 75 ( radia)
Energy Consumption 380/220V;50-60HZ;50KWAx4
Outside Dimensions(mm) 2350x1820x1700



2

Mesh(mm) 25.4-152.4 (1"-6")
With(mm) 1219.2,1524,1828.8 (48", 60", 72")
Wire Diameter(mm) Dia.1.07-Dia.2 ( BWG19-BWG14)
Production Length per Roll(mm) 91.4m (300')
Welding Rate 45 ( radia)
Energy Consumption 380/220V;50-60HZ;50KWAx6
Outside Dimensions(mm) 3350x1800x1400



3

Mesh(mm) 6.35-12.7 (1/4"-1/2")
With(mm) 1219.2-1828.8 (48"-60")
Wire Diameter(mm) Dia.0.74-Dia.1.07 ( BWG22-BWG19)
Production Length per Roll(mm) 120m (400')
Welding Rate 48( radia)
Energy Consumption 380/220V;50-60HZ;50KWAx6
Outside Dimensions(mm) 3050x1900x1750
