0 . 65 Mm - 1 . 8 Mm Roll Mesh Welding Machine Separate Control Low Noise

I'm Online Chat Now

0 . 65 Mm - 1 . 8 Mm Roll Mesh Welding Machine Separate Control Low Noise

China 0 . 65 Mm - 1 . 8 Mm Roll Mesh Welding Machine Separate Control Low Noise supplier
0 . 65 Mm - 1 . 8 Mm Roll Mesh Welding Machine Separate Control Low Noise supplier 0 . 65 Mm - 1 . 8 Mm Roll Mesh Welding Machine Separate Control Low Noise supplier 0 . 65 Mm - 1 . 8 Mm Roll Mesh Welding Machine Separate Control Low Noise supplier 0 . 65 Mm - 1 . 8 Mm Roll Mesh Welding Machine Separate Control Low Noise supplier

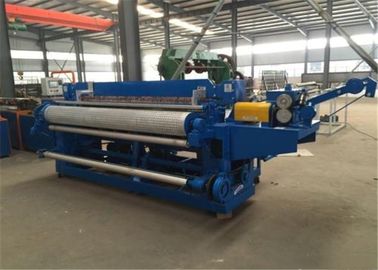

Large Image :  0 . 65 Mm - 1 . 8 Mm Roll Mesh Welding Machine Separate Control Low Noise

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - RM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Wire Diameter: 0 . 65 Mm - 1 . 8 Mm
Warranty: 1 Year Product Name: Electric Galvanized Wire Mesh Roll Welding Machine
Condition: New After-sales: Engineers Available To Service Machinery Overseas
High Light:

wire mesh roll welding machine

,

steel wire mesh welding machine

Low Noise Less Power Consumption Wire Mesh Roll Welding Machine





Description



Welded wire mesh, also known as exterior wall thermal insulation wire galvanized barbed wire galvanized welded wire mesh wire mesh welding net touch welding net rise buildings exterior wall thermal insulation net decoration net barbed wire, square wire mesh, mesh, anti-cracking mesh, welded wire mesh, stainless steel is made of high quality stainless steel wire line of welding and become, more acid and alkali resistance welding firmly and beautiful characteristics such as widely used



Advantage



1. separate control

Our machine adopts separate control technology, 1 switch, 1 SCR and 1 electric board controls 2pcs welding transformers, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.

2. About the welding transformers

We use sealed air cooling welding transformer or water cooling welding transformers(high temperature countries), with copper inside, the scrap&slag won’t fly in easily while welding. Old type machine use no sealed welding transformers, with aluminum inside, easily burned.

3. About the button&speed meter

Our machine designed new position for the button&speed meter. It adopts Delta variable-frequency which can adjust frequency and save energy. They will not broken easily like before and be much easier to operate now.



Used



Used in industry and agriculture building transportation mining and other industries Such as machine protective cover The beast livestock fence Flowers and trees fences Protective window bar channel enclosure poultry cage containing egg baskets and home office food basket basket and decorative Is mainly used for general building external wall concrete high-rise residential and so on, in the structure of heat preservation system plays an important role, when the construction will be hot dip galvanized welded wire rack of polystyrene in the inner side of the will be casting exterior module, external insulation board and wall a survival, insulation board and wall body one body after ripping



Specification



Type CK-RMW-1 DP-RMW-2 DP-RMW-3
Wire diameter 0.4-0.65mm 0.65-1.8mm/0.8-2mm 1.0-2.2mm/1.2-2.5mm
Aperture/pitch 1/4", 1/2"
6.25, 12.5mm
1/2", 1", 2", 3", 4"
12.5, 25, 50mm
1", 2", 3", 4"
25, 50, 75, 100mm
Mesh width Max.1m, 1.2m Max.1.2m,1.5m, 2m Max.1.2m, 1.5m, 2m, 2.5m
Motor 2.2kw 2.2kw; 4kw 4kw; 5.5kw
Welding speed Max.75 rows/min Max.120-180 rows/min Max.80-120 rows/min
Transformer 50kva*3 60kva*4;60kva*5, 60kva*7 70kva/80kva*5/6/7/8
Weight 1.5T 2T, 2.5T 2T, 2.5T, 3T, 3.5T
