Concrete Wire Mesh Grid Welding Machine , Anti - Cracking Wire Netting Machine

I'm Online Chat Now

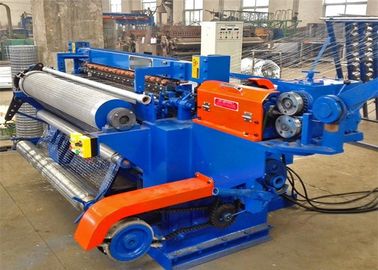

Concrete Wire Mesh Grid Welding Machine , Anti - Cracking Wire Netting Machine

China Concrete Wire Mesh Grid Welding Machine , Anti - Cracking Wire Netting Machine supplier
Concrete Wire Mesh Grid Welding Machine , Anti - Cracking Wire Netting Machine supplier Concrete Wire Mesh Grid Welding Machine , Anti - Cracking Wire Netting Machine supplier Concrete Wire Mesh Grid Welding Machine , Anti - Cracking Wire Netting Machine supplier Concrete Wire Mesh Grid Welding Machine , Anti - Cracking Wire Netting Machine supplier

Large Image :  Concrete Wire Mesh Grid Welding Machine , Anti - Cracking Wire Netting Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-1500A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Steel Wire Mesh Spot Welding Machin Voltage: 380V Or As Required
Application: Welded Wire Mesh End Products: Roll Mesh
Warranty: 1 Year After-sales: Overseas Service Provided

Concrete Wire Mesh Welding Machine For Anti-cracking Mesh External Wall Insulated Wire



Features



1. This machine is fully automatic to feed wires, weld mesh, cut edge and roll mesh.

2. The raw material is applicable for low-carbon steel wire, galvanizing wire and stainless steel wire.

3. It has advantages of reasonable design, low noise, stable working, easier operation etc.

4. The mesh size is precise and can be set according to customers’ requirements.

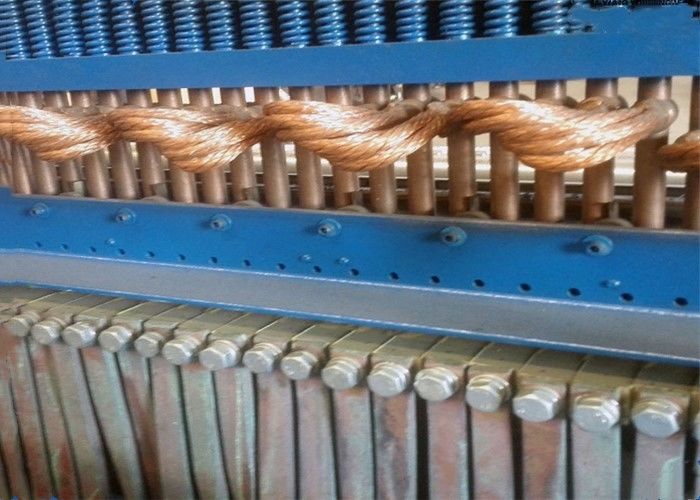

5. It adopts sealed &water cooling welding transformers, the scoria can not easily goes in.



Usage



Welded wire mesh is widely used in industry and agriculture building transportation mining and other industries Such as machine protective cover The beast livestock fence Flowers and trees fences Protective window bar channel enclosure poultry cage containing egg baskets and home office food basket basket and decorative Is mainly used for general building external wall concrete high-rise residential and so on, in the structure of heat preservation system plays an important role, when the construction will be hot dip galvanized welded wire rack of polystyrene in the inner side of the will be casting exterior module, external insulation board and wall a survival, insulation



Specification



MODEL Mesh width Min mesh Wire diameter(mm) Welding speed(mm) Mesh length(mm) other
CK-RM-1X1/2-A 1m 1/2*1/2 0.45-0.85 90-120 130

1/2X1

1X1/2

1X1

2X2

CK-RM-4X1/2-A 4ft
CK-RM-1X1/2-C 1m 1/2*1/2 0.6-1.3 90-120 110

1/2X1

1X1/2

1X1

2X2

CK-RM-4X1/2-C 4ft
CK-RM-5X1/2-C 5ft
CK-RM-1X1/2-C 1m 1/2*1/2 0.8-1.6 80-90 100

1/2X1

1X1/2

1X1

2X2

CK-RM-4X1/2-C 4ft
CK-RM-5X1/2-C 5ft
CK-RM-6X1/2-C 6ft
CK-RM-1X1-A 1m 1*1 0.45-0.85 90-120 130

1x2

2x1

2x2

4x4

CK-RM-4X1-A 4ft
CK-RM-1X1-B 1m 1*1 0.6-1.3 90-100 110

1x2

2x1

2x2

4x4

CK-RM-4X1-B 4ft
CK-RM-5X1-B 5ft
CK-RM-1X1-C 1m 1*1 0.8-1.6 90-100 100

1x2

2x1

2x2

4x4

CK-RM-4X1-C 4ft
CK-RM-5X1-C 5ft
CK-RM-6X1-C 6ft
CK-RM-1X1-D 1m 1*1 1.4-2.6 80-90 80

1x2

2x1

2x2

4x4

CK-RM-4X1-D 4ft
CK-RM-5X1-D 5ft
CK-RM-6X1-D 6ft
CK-RM-2X1-D 2m
CK-RM-7X1-D 7ft
Special customized,: user can specify any width and mesh and wire diameter
