Electric Galvanized Wire Roll Mesh Welding Machine PLC Control For Construction

I'm Online Chat Now

Electric Galvanized Wire Roll Mesh Welding Machine PLC Control For Construction

China Electric Galvanized Wire Roll Mesh Welding Machine PLC Control For Construction supplier
Electric Galvanized Wire Roll Mesh Welding Machine PLC Control For Construction supplier Electric Galvanized Wire Roll Mesh Welding Machine PLC Control For Construction supplier Electric Galvanized Wire Roll Mesh Welding Machine PLC Control For Construction supplier

Large Image :  Electric Galvanized Wire Roll Mesh Welding Machine PLC Control For Construction

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - RM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Wire Diameter: 0 . 65 Mm - 1 . 8 Mm
Warranty: 1 Year Product Name: Electric Galvanized Wire Mesh Roll Welding Machine
Condition: New After-sales: Engineers Available To Service Machinery Overseas

Electric Galvanized Wire Mesh Roll Welding Machine For Construction





Hi . We are a manufacturer of wire mesh machines .



We can supply reinforcing mesh welding machine , fence mesh welding machine , automatic welded mesh machine , roll mesh welding machine , electric welded mesh machine , brick force mesh welding machine , wire straightening and cutting machine etc .

Electric Galvanized Wire Roll Mesh Welding Machine PLC Control For Construction



Description

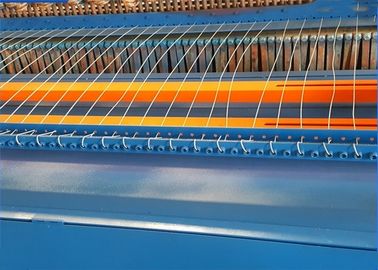

1. Both of the longitude wire and cross wire are fed from wire coils automatically.

2. Raw material: low-carbon steel wire and galvanized/ stainless wire.

3.We will use Schneider electric components, Delta inverter in the electric control cabinet.

4. The middle cutter and sider cutters can be adjusted randomly to cut one roll mesh into tow roll mesh at one time.

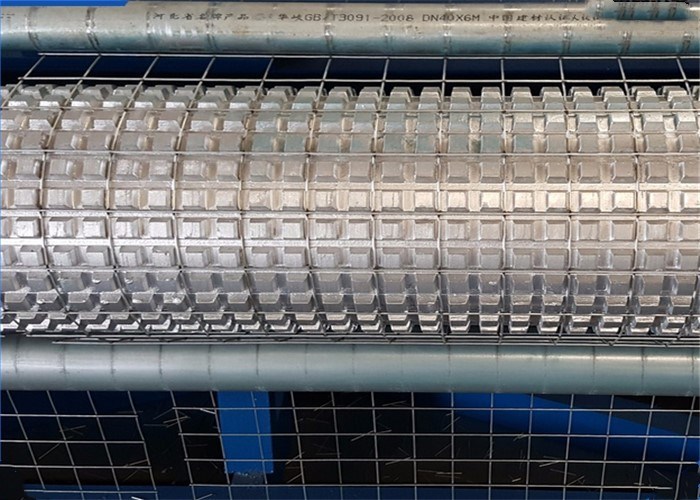

5. The roll mesh length can be set by grid counter switch on the control panel. (counter number=welding times)



Advantage



1. separate control

Our machine adopts separate control technology, 1 switch, 1 SCR and 1 electric board controls 2pcs welding transformers, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.

2. About the welding transformers

We use sealed air cooling welding transformer or water cooling welding transformers(high temperature countries), with copper inside, the scrap&slag won’t fly in easily while welding. Old type machine use no sealed welding transformers, with aluminum inside, easily burned.

3. About the button&speed meter

Our machine designed new position for the button&speed meter. It adopts Delta variable-frequency which can adjust frequency and save energy. They will not broken easily like before and be much easier to operate now.



Used



Used in industry and agriculture building transportation mining and other industries Such as machine protective cover The beast livestock fence Flowers and trees fences Protective window bar channel enclosure poultry cage containing egg baskets and home office food basket basket and decorative Is mainly used for general building external wall concrete high-rise residential and so on, in the structure of heat preservation system plays an important role, when the construction will be hot dip galvanized welded wire rack of polystyrene in the inner side of the will be casting exterior module, external insulation board and wall a survival, insulation board and wall body one body after ripping



Specification



Type CK-RMW-1 DP-RMW-2 DP-RMW-3
Wire diameter 0.4-0.65mm 0.65-1.8mm/0.8-2mm 1.0-2.2mm/1.2-2.5mm
Aperture/pitch 1/4", 1/2"
6.25, 12.5mm
1/2", 1", 2", 3", 4"
12.5, 25, 50mm
1", 2", 3", 4"
25, 50, 75, 100mm
Mesh width Max.1m, 1.2m Max.1.2m,1.5m, 2m Max.1.2m, 1.5m, 2m, 2.5m
Motor 2.2kw 2.2kw; 4kw 4kw; 5.5kw
Welding speed Max.75 rows/min Max.120-180 rows/min Max.80-120 rows/min
Transformer 50kva*3 60kva*4;60kva*5, 60kva*7 70kva/80kva*5/6/7/8
Weight 1.5T 2T, 2.5T 2T, 2.5T, 3T, 3.5T
