Product Details:
Payment & Shipping Terms:
|
| Color: | Customer's Requirment | Wire Diameter: | 0 . 65 Mm - 1 . 8 Mm |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | PLC Control Roll Mesh Welding Machine |
| Welding Speed: | 80-180 Rows/min | After-sales: | Engineers Available To Service Machinery Overseas |
| High Light: | steel wire mesh welding machine,wire mesh making machine |
||

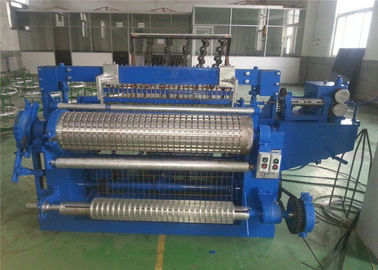

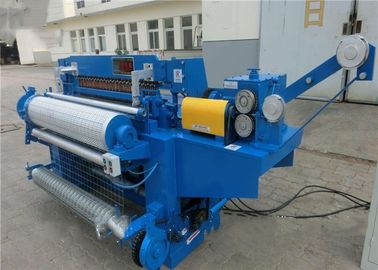

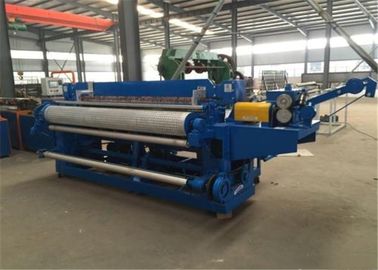

PLC control Roll Mesh Welding Machine / Welded Wire Mesh Machine
Description
1. Both of the longitude wire and cross wire are fed from wire coils automatically.
2. Raw material: low-carbon steel wire and galvanized/ stainless wire.
3. We will use Schneider electric components, Delta inverter in the electric control cabinet.
4. The middle cutter and sider cutters can be adjusted randomly to cut one roll mesh into tow roll mesh at one time.
5. The roll mesh length can be set by grid counter switch on the control panel. (counter number=welding times)
Advantage
1. separate control
Our machine adopts separate control technology, 1 switch, 1 SCR and 1 electric board controls 2pcs welding transformers, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.

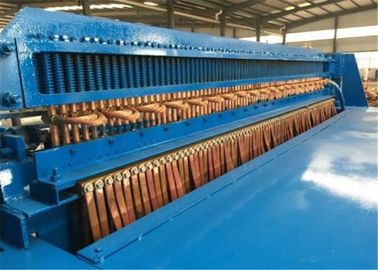

2. About the welding transformers
We use sealed air cooling welding transformer or water cooling welding transformers(high temperature countries), with copper inside, the scrap&slag won’t fly in easily while welding. Old type machine use no sealed welding transformers, with aluminum inside, easily burned.
3. About the button&speed meter
Our machine designed new position for the button&speed meter. It adopts Delta variable-frequency which can adjust frequency and save energy. They will not broken easily like before and be much easier to operate now.
Specification
| PLC control Roll Mesh Welding Machine | |||
| Type | CK-RMW-1 | DP-RMW-2 | DP-RMW-3 |
| Wire diameter | 0.4-0.65mm | 0.65-1.8mm/0.8-2mm | 1.0-2.2mm/1.2-2.5mm |
| Aperture/pitch | 1/4", 1/2" 6.25, 12.5mm | 1/2", 1", 2", 3", 4" 12.5, 25, 50mm | 1", 2", 3", 4" 25, 50, 75, 100mm |
| Mesh width | Max.1m, 1.2m | Max.1.2m,1.5m, 2m | Max.1.2m, 1.5m, 2m, 2.5m |
| Motor | 2.2kw | 2.2kw; 4kw | 4kw; 5.5kw |
| Welding speed | Max.75 rows/min | Max.120-180 rows/min | Max.80-120 rows/min |
| Transformer | 50kva*3 | 60kva*4;60kva*5, 60kva*7 | 70kva/80kva*5/6/7/8 |
| Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T |
Used
Used in industry and agriculture building transportation mining and other industries Such as machine protective cover The beast livestock fence Flowers and trees fences Protective window bar channel enclosure poultry cage containing egg baskets and home office food basket basket and decorative Is mainly used for general building external wall concrete high-rise residential and so on, in the structure of heat preservation system plays an important role, when the construction will be hot dip galvanized welded wire rack of polystyrene in the inner side of the will be casting exterior module, external insulation board and wall a survival, insulation board and wall body one body after ripping
