High Productivity Roll Mesh Welding Machine Rated Capacity 50kva * 3 Energy Saving

I'm Online Chat Now

High Productivity Roll Mesh Welding Machine Rated Capacity 50kva * 3 Energy Saving

China High Productivity Roll Mesh Welding Machine Rated Capacity 50kva * 3 Energy Saving supplier
High Productivity Roll Mesh Welding Machine Rated Capacity 50kva * 3 Energy Saving supplier High Productivity Roll Mesh Welding Machine Rated Capacity 50kva * 3 Energy Saving supplier High Productivity Roll Mesh Welding Machine Rated Capacity 50kva * 3 Energy Saving supplier High Productivity Roll Mesh Welding Machine Rated Capacity 50kva * 3 Energy Saving supplier

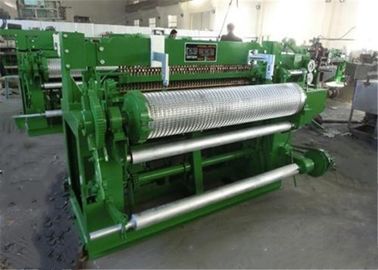

Large Image :  High Productivity Roll Mesh Welding Machine Rated Capacity 50kva * 3 Energy Saving

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - WW - 1500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Mesh Type: Roll Mesh
Warranty: 1 Year Product Name: Automatic AC Roll Welded Wire Mesh Machine
Condition: New After-sales: Engineers Available To Service Machinery Overseas

Automatic AC Roll Welded Wire Mesh Machine CE / ISO9001 Approved





Hi . We are a manufacturer of wire mesh machines .



We can supply reinforcing mesh welding machine , fence mesh welding machine , automatic welded mesh machine , roll mesh welding machine , electric welded mesh machine , brick force mesh welding machine , wire straightening and cutting machine etc .

High Productivity Roll Mesh Welding Machine Rated Capacity 50kva * 3 Energy Saving



Description



1. Both of the longitude wire and cross wire are fed from wire coils automatically.

2. Raw material: low-carbon steel wire and galvanized/ stainless wire.

3. We will use Schneider electric components, Delta inverter in the electric control cabinet.

4. We will use the best quality Mengniu brand main motor & Guomao brand reducer which is famous in Jiangsu Changzhou, it will be equipped with inverter.

5.The middle cutter and sider cutters can be adjusted randomly to cut one roll mesh into tow roll mesh at one time.

6.The roll mesh length can be set by grid counter switch on the control panel. (counter number=welding times)



Specification



Model CK - WW - Q CK - WW - W CK - WW - E
Width of mesh 914 . 4mm ; 1000mm 1219 .2mm ; 1524mm (4feet , 5feet ) 1219 .2mm ; 1524mm ; 1828 . 8mm ; 2133 . 6mm(4feet , 5feet , 6feet , 7feet )
Mesh aperture 6 . 35mm - 12 . 7mm ( 1 / 4 - 1 / 2 ) 12 .7mm - 101 . 6mm ( 1 / 2 - 4 ) 25 .4mm - 101 . 6mm ( 1 - 4 )
Wire diameter 0 . 4mm - 0 . 65mm 0 . 65mm - 1 . 8mm 1 . 0mm - 2 . 2mm
Input voltage 3 - Phasse 380V / 220V / 415V/ 440V 50Hz / 60Hz
Motor 2 . 2 KW 2 . 2 KW 2 . 2 KW ; 4.0 KW
Overall size 2 . 3 * 1 .3 * 1 .4M 2 . 5 * 1 .3 * 1 .4M / 2 . 9 * 1 .3 * 1 .4M 2 . 5 * 1 .3 * 1 .4M / 2 . 9 * 1 .3 * 1 .4M / 3 . 3 * 1 .3 * 1 .4M / 3 . 6 * 1 .3 * 1 .4M
Weight 1 . 5T 2 . 0T / 2 . 5T 2 . 0T / 2 . 5T / 3 . 0T / 3 . 5T
Rated capacity 50kva * 3 60kva * 4 / 60kva * 5 60kva * 4 / 60kva * 5 / 60kva * 6 / 60kva * 7



Used



Used in industry and agriculture building transportation mining and other industries Such as machine protective cover The beast livestock fence Flowers and trees fences Protective window bar channel enclosure poultry cage containing egg baskets and home office food basket basket and decorative Is mainly used for general building external wall concrete high-rise residential and so on, in the structure of heat preservation system plays an important role, when the construction will be hot dip galvanized welded wire rack of polystyrene in the inner side of the will be casting exterior module, external insulation board and wall a survival, insulation board and wall body one body after ripping
