Adjustable Speed Straight Line Wire Drawing Machine , PLC Control Metal Drawing Machine

I'm Online Chat Now

Adjustable Speed Straight Line Wire Drawing Machine , PLC Control Metal Drawing Machine

China Adjustable Speed Straight Line Wire Drawing Machine , PLC Control Metal Drawing Machine supplier
Adjustable Speed Straight Line Wire Drawing Machine , PLC Control Metal Drawing Machine supplier Adjustable Speed Straight Line Wire Drawing Machine , PLC Control Metal Drawing Machine supplier Adjustable Speed Straight Line Wire Drawing Machine , PLC Control Metal Drawing Machine supplier Adjustable Speed Straight Line Wire Drawing Machine , PLC Control Metal Drawing Machine supplier

Large Image :  Adjustable Speed Straight Line Wire Drawing Machine , PLC Control Metal Drawing Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WD

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Automatic Wire Rod Drawing Machine Max. Diameter Of Inlet Wire: 6.5 Mm
Speed: 0-90 M/min Warranty: 1 Year
After-sales: Overseas Service Provided Specifications Of Rolling: 0.6 Mm

Used In Metal Net , Nail Factories Automatic Wire Rod Drawing Machine





description

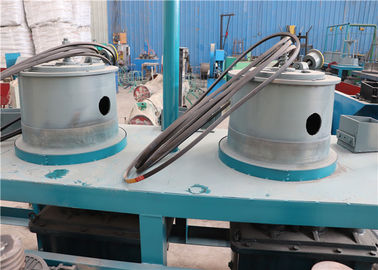

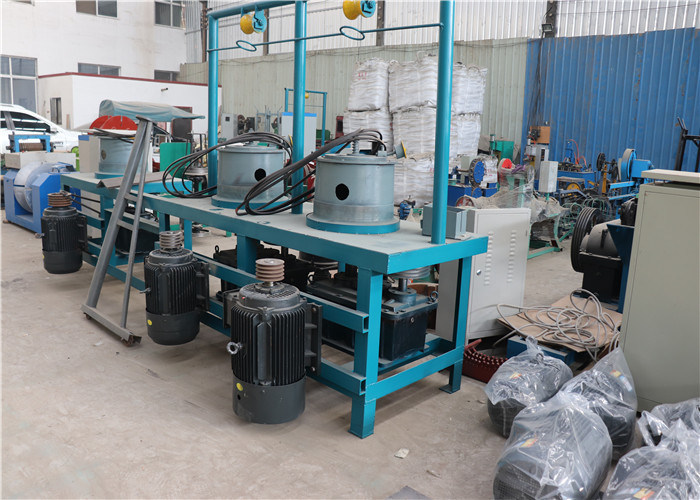

The equipment consists of main reduction box, die box, roller frame, frame and electrical lines from the control system, etc.. Roll each drawing by JZT series or Y series motor rotation by the gear coupling two different gear ratio of the cylinder, so that rotating drum work, drawing drum for the vertical, installed on the cover of the box, gears lubricated with oil immersion. Drum wall cooling equipment to reduce the transmission line wire drawing rolls after the remnants of the surface of the heat. The machine can be achieved to move the linkage,in the operating position in front of the reel, equipment security parking agency.



Features



1. Wire drawing machine adopts PLC controller, it is easy to operate, one people can operate one production line.
2. Wire drawing machine include water seal cooling system, so the temperature of the machine will not to high, it is safe to the worker.

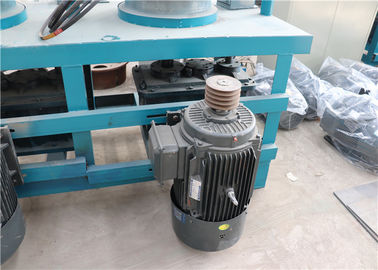

3. Wire drawing machine adopts frequency adjustable motor, the speed of the motor can be adjustable.



parameters



Items
Unit
LZ9-12/1200
LZ10/800
LZ9/700
LZ10/560
LZ10/400
Reel diameter
mm
900
800
700
560
400
Draw passage
time
9-12
10
9
10
10
Incoming dia
mm
Φ14-8
Φ10-8
Φ8-6.5
Φ6.5-5.5
Φ14-8
Outgoing dia
mm
Φ5-3
Φ4-3
Φ3-2.5
Φ2-1.8
Φ1-0.8
Wire darwing line
m/min
300
360
480
720
840
Incoming strength
Mpa
≤1300
≤1300
≤1300
≤1300
≤1300
Total compressibility
%
87.24-85.94
84-85.94
85.94-85.21
90.53-89.29
87.24-84
Average compressibility
%
20.48-19.58
18.42-19.58
19.58-19.13
21.00-20.02
18.61-16.74
Single motor power
Kw
110-90
90-55
75-55

 37-22

15-7.5
