CNC Automatic Wire Drawing Equipment , High Speed Stainless Steel Wire Drawing Machine

I'm Online Chat Now

CNC Automatic Wire Drawing Equipment , High Speed Stainless Steel Wire Drawing Machine

China CNC Automatic Wire Drawing Equipment , High Speed Stainless Steel Wire Drawing Machine  supplier
CNC Automatic Wire Drawing Equipment , High Speed Stainless Steel Wire Drawing Machine  supplier CNC Automatic Wire Drawing Equipment , High Speed Stainless Steel Wire Drawing Machine  supplier CNC Automatic Wire Drawing Equipment , High Speed Stainless Steel Wire Drawing Machine  supplier CNC Automatic Wire Drawing Equipment , High Speed Stainless Steel Wire Drawing Machine  supplier CNC Automatic Wire Drawing Equipment , High Speed Stainless Steel Wire Drawing Machine  supplier

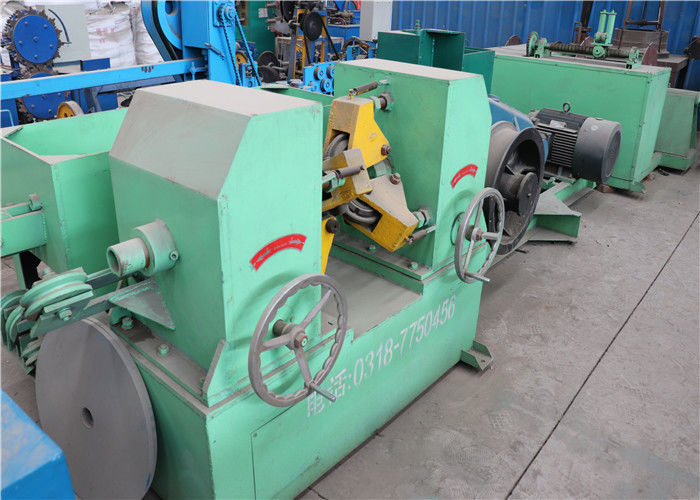

Large Image :  CNC Automatic Wire Drawing Equipment , High Speed Stainless Steel Wire Drawing Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WD

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: CNC Automatic High Speed Steel Bar Wire Drawing Machine Specifications Of Rolling: 4-11 Mm
Speed: 0-90 M/min Length Of The Installation: 12 M
After-sales: Overseas Service Provided Max. Diameter Of Inlet Wire: 13.5mm

CNC Automatic High Speed Steel Bar Wire Drawing Machine Large Torque , Low Noise





description



1. This machine structure is compact, cover a small area, only need 30% of general equipment installation site.

2. Adopt international reducer, large torque, low noise, strong and durable.

3. Coiling block using carbide coating and wear resistant materials.

4. Adopts advanced frequency conversion and electromagnetic technology, and can save electricity by 40%, linear velocity can reach 0-90 m, improve production efficiency. Better protection of power transmission and transformation system and electrical equipment is not damaged, can greatly prolong the service life of the machine.

5. The production process: Wire rod inspection-put wire-phosphorus removal-dry powder lubrication-not reduce the wire diameter(first time reduce, second ime reduce or third time reduce )-the finished product



Features



1. The biggest characteristic of unit is A multi-usage, can produce cold rolled ribbed steel bar, cold drawing screw, light round bar, Angle square steel, cold rolled twisted bar ,

2. energy saving 40%,

3. The producation process can one time finish and only need 1 to 2 person to operate.

4. Mill box use NO. 45 pure steel casting, never cracking. Mill turbine sets a whole structure, with NO. 45 pure steel casting, large tension, wear-resisting, durable.



Paking



1. The machine will be packed with plastic films.

2. Some accessories and wearing parts will be packed with wooden box.



parameters



CNC Automatic High Speed Steel Bar Wire Drawing Machine Large Torque , Low Noise
max. diameter of inlet wire 13.5mm
Specifications of rolling 4-11mm
speed of rolling 0-90m/min
total installed capacity 45-55Kw
length of the installation 12m
speed dajustment mode frequency control of motor speed
