Heavy Duty Steel Wire Rod Drawing Machine High Efficiency Low Energy Consumption

I'm Online Chat Now

Heavy Duty Steel Wire Rod Drawing Machine High Efficiency Low Energy Consumption

China Heavy Duty Steel Wire Rod Drawing Machine High Efficiency Low Energy Consumption supplier
Heavy Duty Steel Wire Rod Drawing Machine High Efficiency Low Energy Consumption supplier Heavy Duty Steel Wire Rod Drawing Machine High Efficiency Low Energy Consumption supplier Heavy Duty Steel Wire Rod Drawing Machine High Efficiency Low Energy Consumption supplier Heavy Duty Steel Wire Rod Drawing Machine High Efficiency Low Energy Consumption supplier

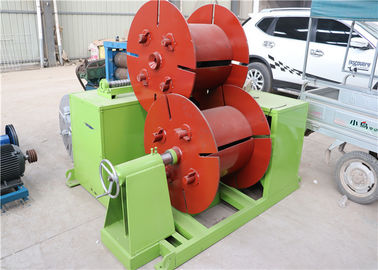

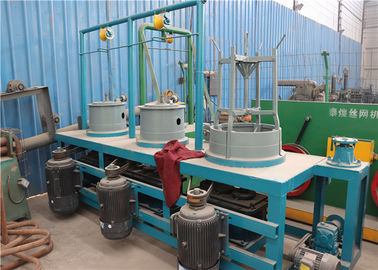

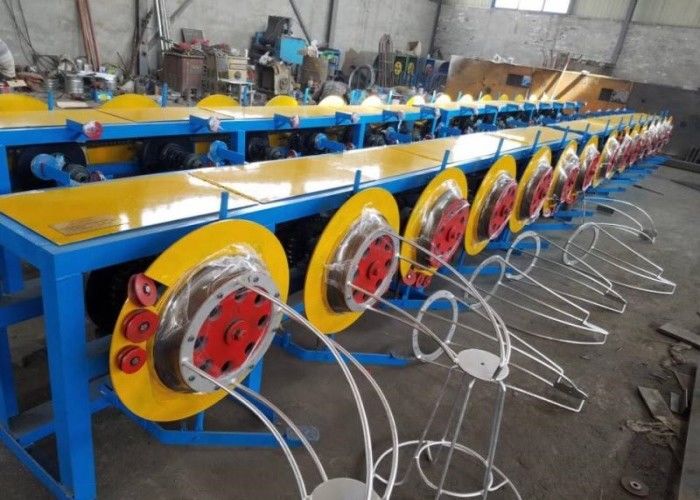

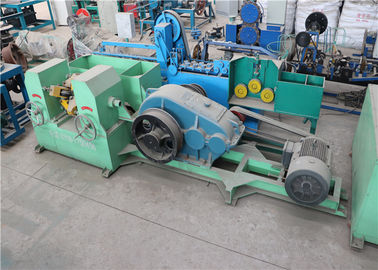

Large Image :  Heavy Duty Steel Wire Rod Drawing Machine High Efficiency Low Energy Consumption

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WD

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Wire Rod Drawing Machine Quality Assurance Voltage: 380 V, 50 HZ
Usage: Making Nails Warranty: 1 Year
After-sales: Overseas Service Provided Color: Customized

CE / ISO9001 Approved Wire Rod Drawing Machine Quality Assurance





description



Belong to pre processing equipment for the production of standard parts and other metal products, the purpose is to put the production by the steel manufacturer to standard parts and other metal products production enterprise of wire or rod through the wire drawing machine drawing processing, make the diameter of wire or rod inside the roundness metallographic structure surface finish and straightening degrees are required for standard parts and other metal products production of raw materials processing requirements so the pretreatment of the wire drawing machine wire or rod quality is directly related to standard parts and other metal products production enterprise product quality wire drawing machine belongs to the metal products industry metal wire drawing machine, wire drawing machine is widely used in steel wire rope of prestressed steel wire standard parts and other metal products production and processing



Features



1. Drive System

The way of transmission for wire drawing machine is by: Variable frequency motor + Narrow v-belt + Decelerator with hardness gear surface + Narrow v-belt to drive the block.

2. Block

Block is accurately founded by cast steel, re-tempering treatment after the rough processing, the work surface of block is welded by wear-resisting piano wire then sprayed with carbide tungsten, then finish machined by a grinding machine. The block working surface rigidity is over HRC60. The inside surface of block is sprayed with Aluminum.

Block inside adopts narrow gap type water cooling while block outside adopt concentrate air cooling. All blocks are fixed with leaning rollers.

3. Die box

All are normal die boxes(die dimension should be offered by client). Die box is cooled directly by water.

Tuning roller is driven by cylinder. Die box can be adjusted up to down, front to back, left to right agility and can be fixed. The screw in top and nut for die box are both made of tin bronze. Hard alloy made direction guiding die is fixed at die box inlet.

4. Gearbox

The chief bearings for gearbox with hard gear surface adopt products from Japanese NSK. All gearboxes are filled with VG220 compound gear oil before leaving factory.

5. Safety cover

On the top of each block there is a safety cover, which needs to close before the equipment start up. If the cover is open, the equipment can only run in slow speed. The safety cover has covered the total front of operation side and have daylight lamp inside for illuming use. Safety cover is controlled by spring.

6. Lubricating

Electric driven grease pump is fixed, which can automatically fill oil into the chief shaft bearing of block.

7. Take-up

The coiler take-up adopts frequency conversion motor drive, to achieve no-parking taking up. There are two rows of slide rail on the bottom of bearing frame, to easy to replace the frame. (The size of bearing frame is provided by the user).



parameters



Items Unit LZ9-12/1200 LZ10/800 LZ9/700 LZ10/560 LZ10/400
Reel diameter mm 900 800 700 560 400
Draw passage time 9-12 10 9 10 10
Incoming dia mm Φ14-8 Φ10-8 Φ8-6.5 Φ6.5-5.5 Φ14-8
Outgoing dia mm Φ5-3 Φ4-3 Φ3-2.5 Φ2-1.8 Φ1-0.8
Wire darwing line m/min 300 360 480 720 840
Incoming strength Mpa ≤1300 ≤1300 ≤1300 ≤1300 ≤1300
Total compressibility % 87.24-85.94 84-85.94 85.94-85.21 90.53-89.29 87.24-84
Average compressibility % 20.48-19.58 18.42-19.58 19.58-19.13 21.00-20.02 18.61-16.74
Single motor power Kw 110-90 90-55 75-55 37-22 15-7.5



Usage



Wire-drawing machine is widely used in the production and preprocessing of metal products such as steel wire prestressed wire.
