Black Annealed Wire Rod Drawing Machine Low Noise Operation High Productivity

I'm Online Chat Now

Black Annealed Wire Rod Drawing Machine Low Noise Operation High Productivity

China Black Annealed Wire Rod Drawing Machine Low Noise Operation High Productivity supplier
Black Annealed Wire Rod Drawing Machine Low Noise Operation High Productivity supplier Black Annealed Wire Rod Drawing Machine Low Noise Operation High Productivity supplier Black Annealed Wire Rod Drawing Machine Low Noise Operation High Productivity supplier Black Annealed Wire Rod Drawing Machine Low Noise Operation High Productivity supplier

Large Image :  Black Annealed Wire Rod Drawing Machine Low Noise Operation High Productivity

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WD

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Black Annealed Wire Drawing Machine Voltage: 380 V, 50 HZ
Usage: Making Nails Warranty: 1 Year
After-sales: Overseas Service Provided Color: Customized

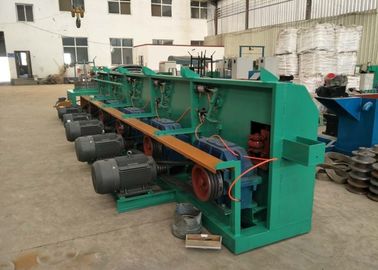

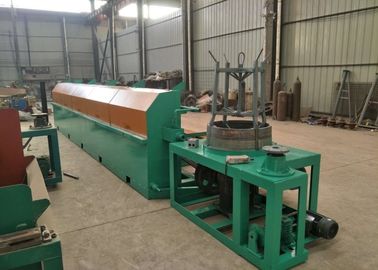

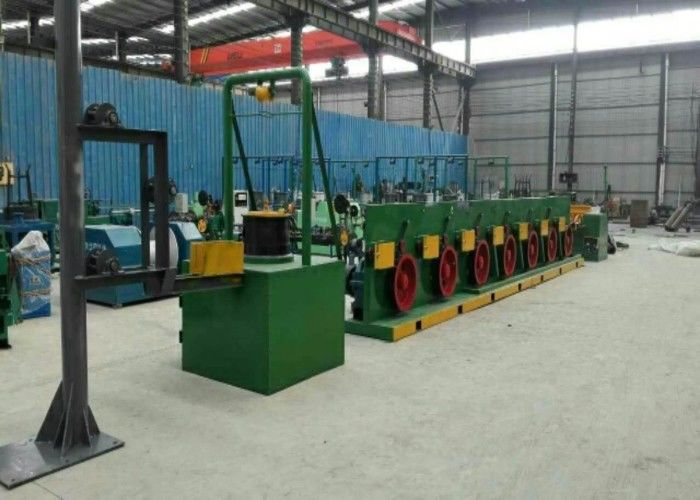

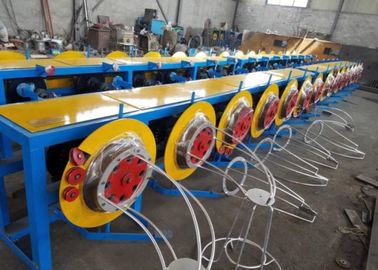

Black Annealed Wire Drawing Machine / Bright steel Wire Drawing machine





description



1. Low-noise operation

2. No damage of wire surface and lubricant carrier

3. Easy handling for loading process

4. High pay-off speed



Features



1. Drive System

The way of transmission for wire drawing machine is by: Variable frequency motor + Narrow v-belt + Decelerator with hardness gear surface + Narrow v-belt to drive the block.

2. Block

Block is accurately founded by cast steel, re-tempering treatment after the rough processing, the work surface of block is welded by wear-resisting piano wire then sprayed with carbide tungsten, then finish machined by a grinding machine. The block working surface rigidity is over HRC60. The inside surface of block is sprayed with Aluminum.

Block inside adopts narrow gap type water cooling while block outside adopt concentrate air cooling. All blocks are fixed with leaning rollers.

3. Die box

All are normal die boxes(die dimension should be offered by client). Die box is cooled directly by water.

Tuning roller is driven by cylinder. Die box can be adjusted up to down, front to back, left to right agility and can be fixed. The screw in top and nut for die box are both made of tin bronze. Hard alloy made direction guiding die is fixed at die box inlet.

4. Gearbox

The chief bearings for gearbox with hard gear surface adopt products from Japanese NSK. All gearboxes are filled with VG220 compound gear oil before leaving factory.

5. Safety cover

On the top of each block there is a safety cover, which needs to close before the equipment start up. If the cover is open, the equipment can only run in slow speed. The safety cover has covered the total front of operation side and have daylight lamp inside for illuming use. Safety cover is controlled by spring.

6. Lubricating

Electric driven grease pump is fixed, which can automatically fill oil into the chief shaft bearing of block.

7. Take-up

The coiler take-up adopts frequency conversion motor drive, to achieve no-parking taking up. There are two rows of slide rail on the bottom of bearing frame, to easy to replace the frame. (The size of bearing frame is provided by the user).



parameters





Items Unit LZ9-12/1200 LZ10/800 LZ9/700 LZ10/560 LZ10/400
Reel diameter mm 900 800 700 560 400
Draw passage time 9-12 10 9 10 10
Incoming dia mm Φ14-8 Φ10-8 Φ8-6.5 Φ6.5-5.5 Φ14-8
Outgoing dia mm Φ5-3 Φ4-3 Φ3-2.5 Φ2-1.8 Φ1-0.8
Wire darwing line m/min 300 360 480 720 840
Incoming strength Mpa ≤1300 ≤1300 ≤1300 ≤1300 ≤1300
Total compressibility % 87.24-85.94 84-85.94 85.94-85.21 90.53-89.29 87.24-84
Average compressibility % 20.48-19.58 18.42-19.58 19.58-19.13 21.00-20.02 18.61-16.74
Single motor power Kw 110-90 90-55 75-55 37-22 15-7.5



Usage



Wire-drawing machine is widely used in the production and preprocessing of metal products such as steel wire prestressed wire.


Other machine



Reinforced mesh mach
Welded wire mesh machine
Animal cages welding machine
Brick mesh welding machi
Fence mesh welding machine
Construction mesh welding machine
Spot welding machine
Wire straightening machine
Wire drawing machine
Barbed wire machine
Rebar bending machine
Chain link fence machine
Galvanizing equipment
grassland fence machine

Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.
