Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pulley Type Continuous Wire Drawing Machine | Input Wire Diameter: | 6.5 Mm |
|---|---|---|---|
| Output Wire Diameter: | 0.6 Mm | Warranty: | 1 Year |
| After-sales: | Overseas Service Provided | Speed: | 400 M/min |
| High Light: | stainless steel wire drawing machine,continuous wire drawing machine |
||

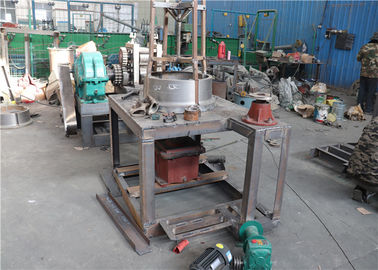

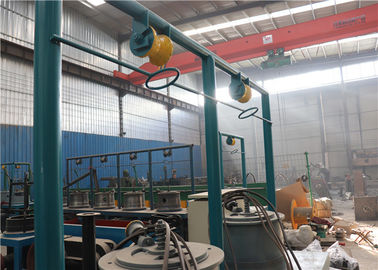

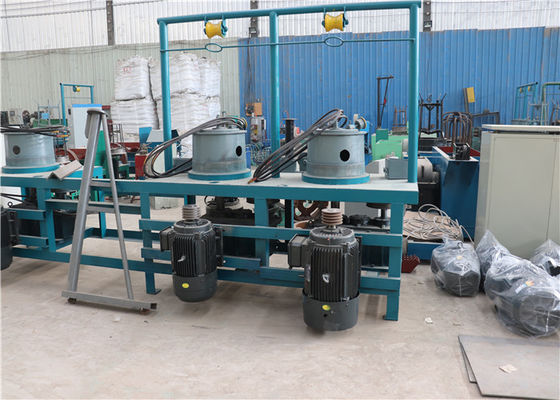

Pulley Type Continuous Wire Drawing Machine / Roller Steel Wire Drawing Machine
description
The pulley type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation, and it is suitable for drawing a variety of medium and thin fiber material, especially for mild steel wire, galvanized iron wire, steel head wire, stainless steel wire, rubber hose steel wire, spring steel wire, rod welding wire and copper wire aluminum rod, etc.
Features
Wire drawing machine adopts PLC controller, it is easy to operate, one people can operate one production line.
Wire drawing machine include water seal cooling system, so the temperature of the machine will not to high, it is safe to the worker.

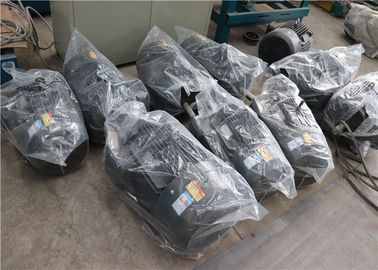

Wire drawing machine adopts frequency adjustable motor, the speed of the motor can be adjustable.
parameters
|
Items
|
Unit
|
LZ9-12/1200
|
LZ10/800
|
LZ9/700
|
LZ10/560
|
LZ10/400
|
|
Reel diameter
|
mm
|
900
|
800
|
700
|
560
|
400
|
|
Draw passage
|
time
|
9-12
|
10
|
9
|
10
|
10
|
|
Incoming dia
|
mm
|
Φ14-8
|
Φ10-8
|
Φ8-6.5
|
Φ6.5-5.5
|
Φ14-8
|
|
Outgoing dia
|
mm
|
Φ5-3
|
Φ4-3
|
Φ3-2.5
|
Φ2-1.8
|
Φ1-0.8
|
|
Wire darwing line
|
m/min
|
300
|
360
|
480
|
720
|
840
|
|
Incoming strength
|
Mpa
|
≤1300
|
≤1300
|
≤1300
|
≤1300
|
≤1300
|
|
Total compressibility
|
%
|
87.24-85.94
|
84-85.94
|
85.94-85.21
|
90.53-89.29
|
87.24-84
|
|
Average compressibility
|
%
|
20.48-19.58
|
18.42-19.58
|
19.58-19.13
|
21.00-20.02
|
18.61-16.74
|
|
Single motor power
|
Kw
|
110-90
|
90-55
|
75-55
|
37-22
|
15-7.5
|
