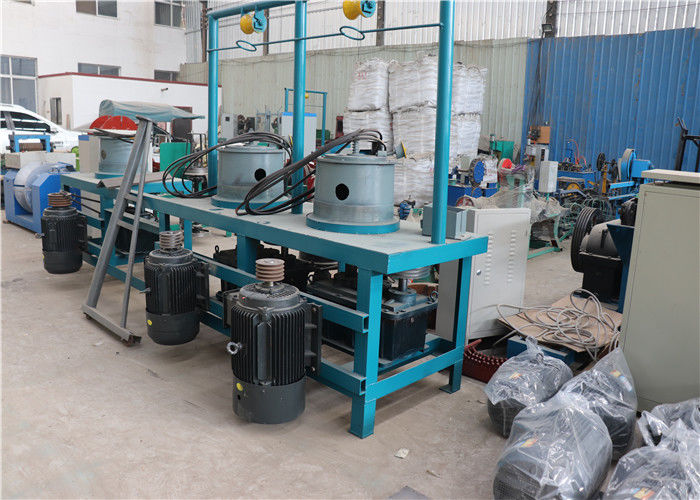

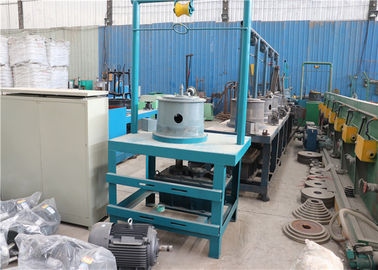

Automatic Rotation Wire Rod Drawing Machine 380V 60KV Stable Performance

I'm Online Chat Now

Automatic Rotation Wire Rod Drawing Machine 380V 60KV Stable Performance

China Automatic Rotation Wire Rod Drawing Machine 380V 60KV Stable Performance supplier
Automatic Rotation Wire Rod Drawing Machine 380V 60KV Stable Performance supplier Automatic Rotation Wire Rod Drawing Machine 380V 60KV Stable Performance supplier Automatic Rotation Wire Rod Drawing Machine 380V 60KV Stable Performance supplier Automatic Rotation Wire Rod Drawing Machine 380V 60KV Stable Performance supplier

Large Image :  Automatic Rotation Wire Rod Drawing Machine 380V 60KV Stable Performance

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WD

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Pulley Type Continuous Wire Drawing Machine Voltage: 380V
Power: 60KV Warranty: 1 Year
After-sales: Overseas Service Provided Capacity: 150-200kg/h

Pulley / OTO Type / Dry Automatic rotation Wire Drawing Machine





description



The pulley type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation, and it is suitable for drawing a variety of medium and thin fiber material, especially for mild steel wire, galvanized iron wire, steel head wire, stainless steel wire, rubber hose steel wire, spring steel wire, rod welding wire and copper wire aluminum rod, etc.



Features



Production pulley of wire drawing machine has simple structure low price advantages of convenient operation adopts frequency conversion energy conservation and environmental protection is suitable for drawing the specifications of the various kinds of metal wire, especially suitable for drawing low carbon steel wire galvanized iron wire stainless steel wire welding wire and copper wire aluminum wire, etc



parameters





Items Unit LW2/700+3/600+5/450 LW9/560(600) LW9/400(300)

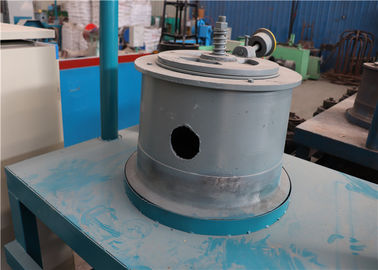

Capstan diameter mm 700/600/450 560(600) 400(300)
Max inlet diameter mm Φ8-6 Φ6.5 Φ3.0-2.5
Min outlet diameter mm Φ2.5 Φ2.0 Φ0.9-0.7
Inlet tensile strength Mpa <1150 <1150 <1150
Drawing speed m/min 240 360 720
Drawing dies time 10 9 9
Total compression rate % 90.23 90.53 91
Average compression rate % 20.75 23.04 23.5
Motor power Kw 18.5 18.5-30 7.5-11



Paking



Wire drawing machine package with plastic film outside for main machine,wooden box or carton box for main accessories and tools,or as customer demand.
