Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine

I'm Online Chat Now

Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine

China Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine supplier
Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine supplier Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine supplier Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine supplier Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine supplier

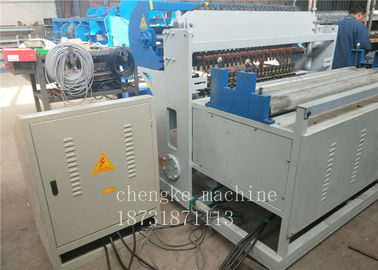

Large Image :  Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine

Product Details:

Place of Origin: Anping Hebei
Brand Name: ChenChengke
Certification: ISO
Model Number: CK-WM-2500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: no
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30
Contact Now
Detailed Product Description
Product Name: Automatic Wire Mesh Fence Welding Machine Control System: PLC
After-sales: Overseas Service Provided Speed: 80-120 (times/minute)
Voltage: 380v Warranty: 1 Year
High Light:

rebar mesh welding machine

,

automatic wire mesh machine





Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine



Can Be Customized Galvanized Wire Black Wire Automatic Wire Mesh Fence Welding Machine





Specification



Wire diameter 1.5-3mm Line wire feeding Coil wire
Line wire space 50 - 250mm Cross wire feeding Pre - cut wire
Cross wier Space 50 - 250mm Rated capacity 125kva*2
Width of Mesh ≤ 1000mm Input voltage 3 - Phase 380V 50Hz
Welding speed 80 - 90times / min Weight 2.8T



Welding width Max.2500mm(customizable)
Wire diameter 3-6mm
Welding speed 49-90times/min
Line wire distance 50-200mm(customizable)
Voltage 380V 50Hz
Cross wire distance ≥50mm
Can be customized according to customer requirements.



Wire diameter 5-12mm
Cross & Line wire form Pre-straightening and pre-cut wire
Cross wire space 50-200mm
Line wire space 100-200mm
Width of mesh 2500mm
Number of electrodes 24
Welding speed 30-50times/min
Rated voltage 380V-440V
Rate capacity 12*125kva
Operation Touch-screen board
Welding motor Provided by FM speed motor
Cross feeding system Pneumatic system control falling one by one
Mesh pulling system Adopts servo motor to pull mesh sheets repeat
Cooling system Water cooling transformer
Controlling system Synchronous control with PLC program system



Description



1. The fence mesh panel welding machine, which welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper.

2. The farm fence mesh panel welding machine uses PLC control technique, welding time and separate welding adopt Japan, Sonydigital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel.

3. The cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture size more accurate.

4.The mesh pulling system is controled by step motor, which is easy to gerulate mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with certain range.

5.The machine use touch screen operation system, you can change the welding time and mesh size.



peculiarity



1. Using servo motor control network pull, improve the accuracy of the grid.
2. Using rack and pinion transmission, transmission efficiency.
3. The grid can vary according to different needs.
4. Splash small, low burn marks, improve the appearance of the net panel.
5. Working speed, work stability, improve productivity.





Usage



Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cagesThe production of metal furniture, goods shelf, shopping cart and protective cover

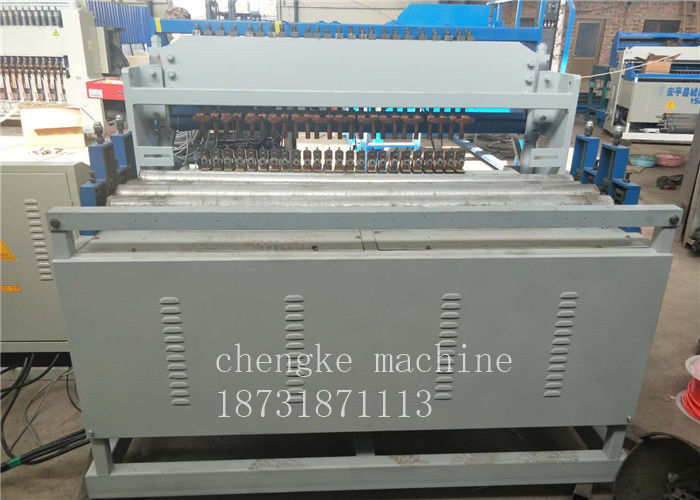

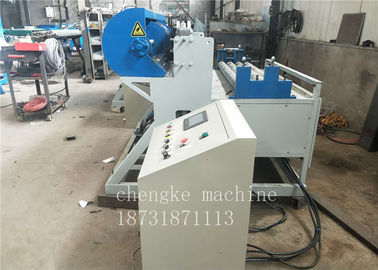

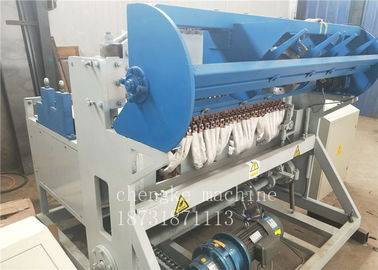

Galvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding MachineGalvanized Wire Black Wire Mesh Spot Welding Machine , Fence Mesh Welding Machine
