Pet Cages Stainless Steel Wire Mesh Machine , 50 - 200mm Wire Mesh Weaving Machine

I'm Online Chat Now

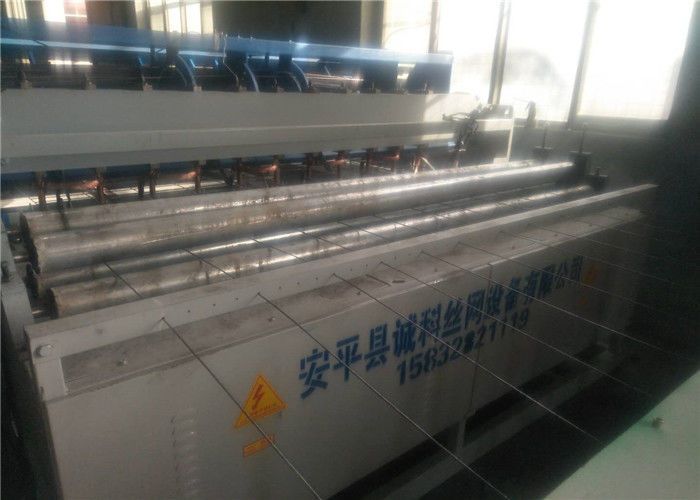

Pet Cages Stainless Steel Wire Mesh Machine , 50 - 200mm Wire Mesh Weaving Machine

China Pet Cages Stainless Steel Wire Mesh Machine , 50 - 200mm Wire Mesh Weaving Machine  supplier
Pet Cages Stainless Steel Wire Mesh Machine , 50 - 200mm Wire Mesh Weaving Machine  supplier Pet Cages Stainless Steel Wire Mesh Machine , 50 - 200mm Wire Mesh Weaving Machine  supplier Pet Cages Stainless Steel Wire Mesh Machine , 50 - 200mm Wire Mesh Weaving Machine  supplier Pet Cages Stainless Steel Wire Mesh Machine , 50 - 200mm Wire Mesh Weaving Machine  supplier

Large Image :  Pet Cages Stainless Steel Wire Mesh Machine , 50 - 200mm Wire Mesh Weaving Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: JK - AC - 1200Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: with plastic package
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Chicken Cage Welding Machine Wire Diameter: 1.5-3mm
Warranty: 1 Year Voltage: 380V
Wire Space: 50-200mm Speedy: 40-60times/min
High Light:

chicken mesh making machine

,

wire cage welding machine

Chicken Cage Welding Machine With Shearing Machine With Automatic Falling Mesh





description



The machine is made of thick steel plate and profile steel, high strength, high toughness, main structure more solid.The welding adopts synchronous power control and separate-control, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.The mesh pulling system in cycle is automatically calculated. The mesh pulling car can pulling mesh by the cycle automatically.The machine will stop working automatically if there is no cross wires in hopper device.The cutting machine can cut the mesh as demand length automaticall



Features



1. Business model:factory direct sale

2. Professional manufacture

3. No environment pollution

4. Smooth and beautiful welding spots

5. Product quality assurance

6. Available to weld multiple work pieces and heads in high efficiency

7. With credibility and protection

8. Good after sale service



Specification



Model CK-AC-1 CK-AC-2 CK-AC-3
Input power 380V 50Hz 380V 50Hz 380V 50Hz
Max. width 1200mm 1200mm 1000mm
Line wire space 50-200mm 50-200mm 100-200mm
Cross wire space 50-200mm 50-200mm 50-200mm
Wire diameter 1.4-2.5mm 1.4-2.5mm 1.4-2.0mm
Rated capacity 56kva*3 56kva*2 56kva*1
Welding point No. 25 25 11
Motor power 2.2KW 2.2KW 2.2KW
Cutting mesh Automatic & Manual Automatic & Manual Automatic & Manual
Welding speed 45 times/min 45 times/min 45 times/min
Weight 2500kg 2000kg 1700kg
