Zoo Fence Iron Wire Making Machine , Galvanized Livestock Chain Link Fence Making Machine

I'm Online Chat Now

Zoo Fence Iron Wire Making Machine , Galvanized Livestock Chain Link Fence Making Machine

China Zoo Fence  Iron Wire Making Machine , Galvanized Livestock Chain Link Fence Making Machine supplier
Zoo Fence  Iron Wire Making Machine , Galvanized Livestock Chain Link Fence Making Machine supplier Zoo Fence  Iron Wire Making Machine , Galvanized Livestock Chain Link Fence Making Machine supplier Zoo Fence  Iron Wire Making Machine , Galvanized Livestock Chain Link Fence Making Machine supplier Zoo Fence  Iron Wire Making Machine , Galvanized Livestock Chain Link Fence Making Machine supplier

Large Image :  Zoo Fence Iron Wire Making Machine , Galvanized Livestock Chain Link Fence Making Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-GF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Product Name: High Security Field Galvanized Livestock Farm Wire Fence Making Machine Speed: 45-60 Times/min
Wire Diameter: 1.8-3.0 Mm Color: Customer Requirements
After-sales: Overseas Service Provided Voltage: 380 V 50 Hz
High Light:

cattle fence machine

,

automatic chain link fence machine

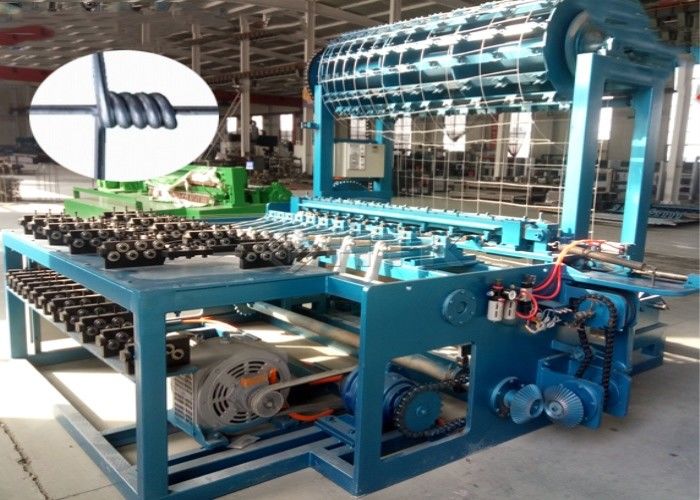

High Security Field Galvanized Livestock Farm Wire Fence Making Machine


presentation



It is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. We have spent a lot of time to develop it which has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life. The machine is controlled automatically by NC. All parts work coordinately and smoothly. It is operated flexibly and inexpensive. Products are neat and beautiful, diverse specifications.



advantages



Grassland fence made of high strength galvanized steel wire braided, high tensile strength large, can withstand violent impact cattle, horses, sheep and other livestock, safe and reliable.Steel wire, galvanized surround surface, other parts are rust and corrosion measures taken, can adapt to harsh working conditions, life expectancy up to 20 years.braid weft take rolling wave technology, enhancing the elasticity and buffering function, can adapt to thermal expansion and contraction of the deformation, so that fence always keep up tight state.Simple structure, easy maintenance, short construction period, small size, light weight, easy transportation and installation, air and light does not affect the landscape.


Parameters



Automatic Galvanized Fixed Knot Deer Fence Farm And Ranch Fence Machine
Production specification CY-A CY-B CY-C
Power 5.5KW 7.5KW 7.5KW
Speed ≤45knock/min ≤45knock/min ≤45knock/min
Wire diameter 1.9mm-2.5mm 1.9mm-2.5mm 1.9mm-2.5mm
Top/bottom diameter 2.0mm-3.5mm 2.0mm-3.5mm 2.0mm-3.5mm
Voltage 380V-3P-50HZ 380V-3P-50HZ 380V-3P-50HZ
Weight 3.5T 3.8T 4.0T
Overall dimension 2.8 x 3.2 x 2.4(M) 3.3 x 3.2 x 2.4(M) 3.4 x 3.2x 2.4(M)



used



Zoo fence Construction site fences backyard birds slope greening landscape with a net, a wildlife park grassland pasture and other places of grazing in captivity, especially applied in the pasture fence project, for a rotational grazing grassland protection, can play an important role, can also be used for rare flowers The isolation protection forest planting zone.

other machines



Reinforced mesh mach
Welded wire mesh machine
Animal cages welding machine
Brick mesh welding machi
Fence mesh welding machine
Construction mesh welding machine
Spot welding machine
Wire straightening machine
Wire drawing machine
Barbed wire machine
Rebar bending machine
Chain link fence machine
Galvanizing equipment
grassland fence machine
