Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Input Voltage: | 380V |
|---|---|---|---|
| Power: | 100KVA | Usage: | Rebar Butt Welding |
| After-sales: | Overseas Service Provided | Color: | Blue,white |
| High Light: | water cooled spot welder,resistance spot welding equipment |
||

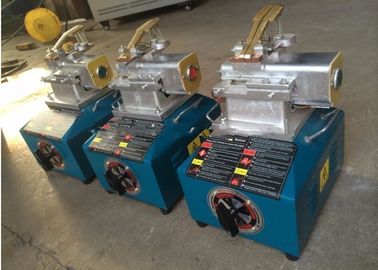

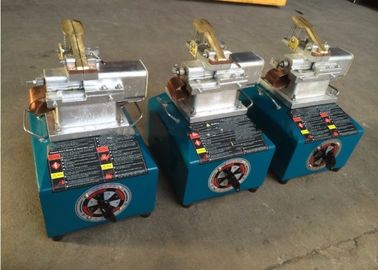

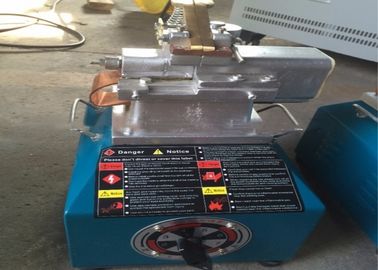

1 - 3mm Steel Wire Small Size Portable Butt Welding Machine Stable Quality
description
Mainly used for butt welding variety of steel and Non-ferrous metals,such as low carbon steel, carbon steel,
stainless steel and nonferrous metal round wire, flat wire, round steel, flat steel, rebar steel, and so on;
Features
1. it is one kind of manual lever pressuring type of welding,the welding pressure is by way of manual control lever on the workpiece to achieve the butt flash butt welding and resistance butt welding;
2. Because this kind of butt welding machine no need air compressor, simple operation,easy to move,stable quality,therefore widely used for the field of construction,express way,bridge,steel wire drawing plant,cement prefabricated factory,metal products and so on.Especially suitable for using in the construction field and country side.
Specification
| Machine Model |
Input Voltage (V) |
Input Power (KVA) |
Secondary Voltage (V) |
Welding Surface (mm2) |
Input Current (A) |
Power Regulate Range |
| CK-1KVA | 220V | 1 | 0.6-2 | 7 | 3 | 1-8Taps |
| CK-2KVA | 220V | 2 | 1-2 | 15 | 6 | 1-8Taps |
| CK-3KVA | 220V | 3 | 1.5-3 | 28 | 9 | 1-8Taps |
| CK-10KVA | 380V | 10 | 1.7-3.5 | 50 | 30 | 1-8Taps |
| CK-25KVA | 380V | 25 | 1.76-3.52 | 110 | 65 | 1-8Taps |
| CK-75KVA | 380V | 75 | 3.58-7.16 | 320 | 198 | 1-8Taps |
| CK-100KVA | 380V | 100 | 3.96-7.98 | 500 | 263 | 1-8Taps |
| CK-150KVA | 380V | 150 | 4.13-8.26 | 1250 | 395 | 1-8Taps |
advantages
1. Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines.
It ensures we have the ability to carry out the production schedual for punctual delivery.
2. 17-year production experience. We have over 17 years exprerience in this industry.
That means we can preview the problems for the orders and production.
Therefore, it will make sure to deduce the risk of bad situation to happen.
