Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Brick Force Welded Mesh Roll Making Machine | Line Wire Space: | 65mm 115mm 165mm 185mm |
|---|---|---|---|
| Voltage: | 380V,415V And Customized | Current: | 56KVA |
| After Sale: | Engineers Available To Service Overseas | Warranty: | 1 Year |
| High Light: | reinforcing mesh machine,wire mesh knitting machines |
||

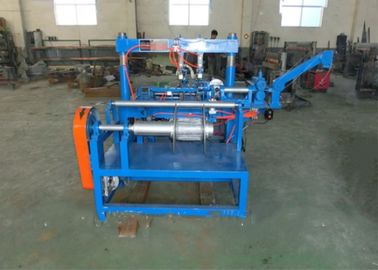

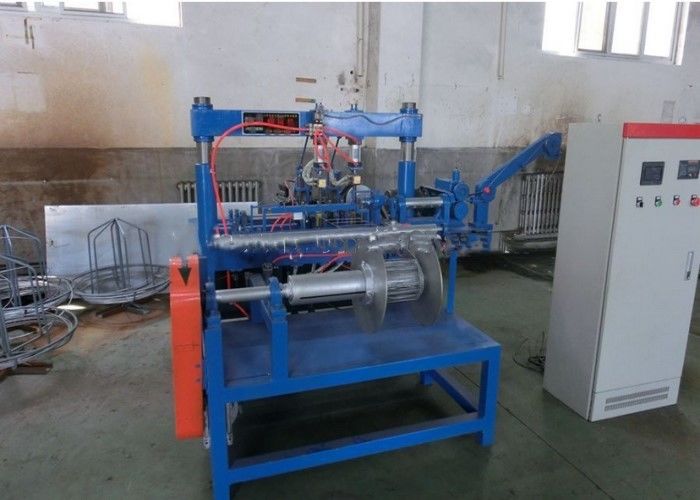

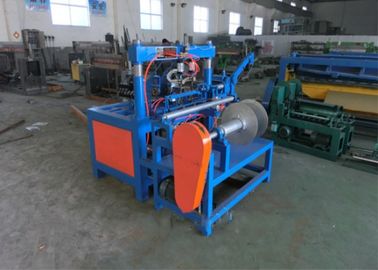

Electric Brick Force Welded Mesh Roll Making Machine / Ladder Mesh Machine
description
1. The machine adopts synchronous control technique.
2. The welding time and separate welding are controlled by PLC for system digital input panel or touch screen buttons.It can be more intelligent operations and rationalizing.
3. The advantages of the device are stable performance ,strong welding spot and accurate welding aperture.
4. The machine adopts synchronous control technology of power electric,auto-sharding,automatic rolling,high yield,stable performance,strong welding spot,without welded tracks.
5.It is easy for operator.
Features
1 . Main characters , cross wires are pre - strainghtening and cutting wire , and line wires are coilwire , the machine can weld four pieces wire coils simultaneously wire cutting device .

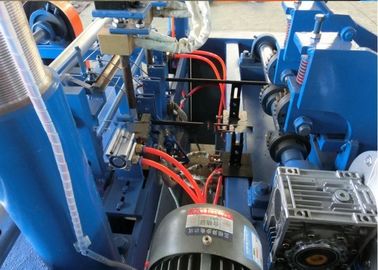

2 . main functional structures , line wire strainghtening and locator device , cross wire store hoppr , mechanical hauling wire mesh device , mesh size locator device , cross wire cutting devuce , wire mesh reeling device .
Specification
| Electric Brick Force Welded Mesh Roll Making Machine / Ladder Mesh Machine | |
| Line wire diameter | 1.6-3mm |
| Cross wire diameter | 1.6-3mm |
| Line wire space | 75mm;115mm;230mm |
| Line wire No. | 6pcs |
| Max.mesh width | 1000mm |
| Cross wire space | 300mm |
| Mesh roll length | 25m |
| Line wire feeding | Wire coils |
| Cross wire feeding | Pre-straightened&pre-cut |
| Max.welding speed | 20 rows of cross wires/min |
| Mesh output form | 3 mesh rolls at the same time |
| Wire material | Mild steel wire, galvanized wire |
Usage
Brick Force Wire is widely used in building cavity wall reinforcement Increase the elasticity To prevent wall cracks, it is a good building materials Be used for the foundation wall higher requirements of strength and stability of place and local stress place, have the effect of reinforcement in the brick and block, used in the reinforcement of the brick and block construction key points of the cement mortar in each, the brick and cement mortar to form an integral structure of a whole, the maximum stress and vibration absorption, excellent shock crack, is a good building materials
Packaging
1. The main body of the wire mesh welding machine will be packaged with plastic.
2. The anther parts of the wire mesh welding machine,will be packaged with cartons,they will be protected well.
3. The spare parts of the wire mesh welding machine will be packaged in the wooden cases.
4. Only this type wire mesh welding machine will need a 20' container loading.
5. If you have another package requirements,we will change it .
6. We will supply the best package for you.
