Strong Welding Spot Iron Net Making Machine , 780 Mm Width Gabion Wire Mesh Machine

China Strong Welding Spot Iron Net Making Machine , 780 Mm Width Gabion Wire Mesh Machine supplier
Strong Welding Spot Iron Net Making Machine , 780 Mm Width Gabion Wire Mesh Machine supplier Strong Welding Spot Iron Net Making Machine , 780 Mm Width Gabion Wire Mesh Machine supplier Strong Welding Spot Iron Net Making Machine , 780 Mm Width Gabion Wire Mesh Machine supplier Strong Welding Spot Iron Net Making Machine , 780 Mm Width Gabion Wire Mesh Machine supplier

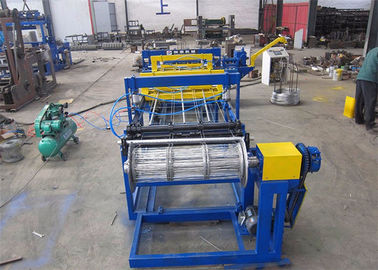

Large Image :  Strong Welding Spot Iron Net Making Machine , 780 Mm Width Gabion Wire Mesh Machine

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-BM-780Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: NO
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: CK - BM - 780Q Brick Force Wire Mesh Welding Machine Mesh Width: 780 Mm
Wire Diameter: 1.5-3.0mm Welding Speed: 40-50times/min
Weight: 1.5T After Sale: Engineers Available To Service Machinery Overseas
High Light:

wire net making machine

,

reinforcing mesh machine

CK - BM - 780Q Brick Force Wire Mesh Welding Machine Strong Welding Spot





description



1). This kind machine is used to make wire mesh for brick reinforcement and it is widely in
Africa area. It is controlled by intergrated electric circuit. Not only welding speed is fast but
also it is easy to learn and operate.

2). Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Cross
wire feeding device is driven by step motor which make the hole accurate. Line wire is in coil
and straightened by wire straightening wheel. Line wire distance can be adjusted by moving
the electrode and cross wire distance can be adjusted by operating the PLC panel. And the
mesh pulling device is also driven by step motor which make the aperture accurate.

3). Both machine could produce three or four pieces of wire mesh at the same time.Each piece
of mesh have 8mm extra length at both side.

4). The available wire is black wire or galvanized wire.

5). Finished product can be in roll or in panel.



Features



1.The machine adopts electrical synchronous control technique,both welding time and cent-control welding is composed of digital and integrated electric circuit.

2.This is operation is accurate, it has stable function,firm welded point and without welded tracks. Not only welding speed is fast but also it is easy to learn and operate.

3.It is easy to regulate mesh hole and mesh size is rather accurate,welding aperture could also adjust rand only within the range.



Usage



Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobilevehicles, big ships.



Specification



CK - BM - 780Q Brick Force Wire Mesh Welding Machine Strong Welding Spot
Wire diameter 1.6-3.0mm Warp wire distance 40mm
Welding type Pressure welding Weft wire distance 100-500mm
Mesh width 300mm Voltage 380V 3p 50HZ
Machine weight 1.5T Welding power 65KVA



Service



Pre-Sales Service:

Inquiry and consulting support.

Sample testing support.

View our Factory.

Online visit

After-Sales Service:

Training how to install,operate and maintain the machine.

Engineers available to service machinery overseas.

One year gurantee for the whole machine.

Operation manual is availabl

Sincerely look forward to cooperate with you ! For more details about wire mesh welding machine, welcome to contact with us in any time ! We will fully committed to provide the best quality products and services.
