Product Details:
Payment & Shipping Terms:
|
| Mesh Width: | 780 Mm | Warranty: | 1 Year |
|---|---|---|---|
| Product Name: | 1 . 6 - 3 . 0mm Fully Automatic Brick Force Wire Making Machine | Power: | Pneumatic |
| After Sale: | Engineers Available To Service Overseas | ||
| High Light: | wire net making machine,wire mesh knitting machines |
||

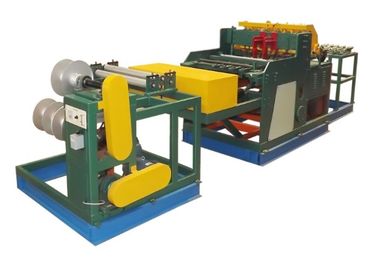

1 . 6 - 3 . 0mm Fully Automatic Brick Force Wire Making Machine
description
1 . Main characters , cross wires are pre - strainghtening and cutting wire , and line wires are coilwire , the machine can weld four pieces wire coils simultaneously wire cutting device .

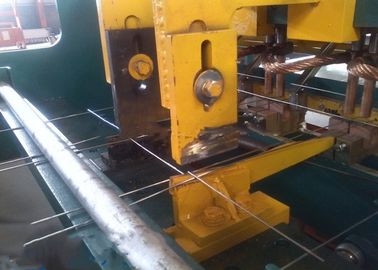

2 . main functional structures , line wire strainghtening and locator device , cross wire store hoppr , mechanical hauling wire mesh device , mesh size locator device , cross wire cutting devuce , wire mesh reeling device .
Features
1. wire dia:2-3 mm ,
the cross spacing : 57mm,75mm,230mm
the line spacing :300mm
2. wire dia:1.5-2.5mm
the cross spacing:115mm,230mm
the line spacing :300mm

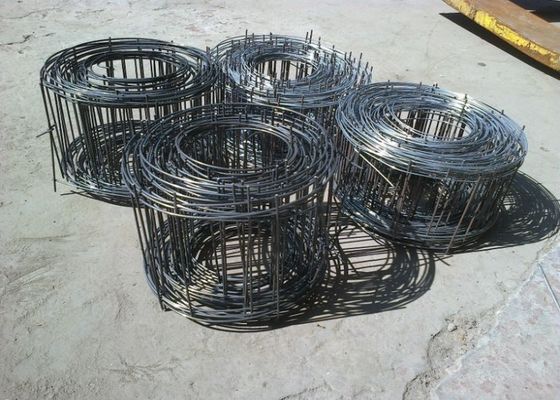

Both machine could produce three pieces of wire mesh at the same time.Each piece of mesh have 8mm extra length at both side.
The available wire is black wire or galvanized wire.
Specification
| Item | Brick Mesh Welding Machine |
| Number of electrodes | 8 or 6 |
| Max mesh width | 780 mm |
| Wire diameter | 1 . 5 - 3 . o mm |
| Cross wire space | 75 , 115 , 150 , 230 mm |
| Line wire space | 300 mm |
| Power capacity | 160 KVA |
| Welding speed | 30 - 40 nips/minute |
| Control system | PLC control |
Service
Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
Online visit
After-Sales Service:
Training how to install,operate and maintain the machine.
Engineers available to service machinery overseas.
One year gurantee for the whole machine.
Operation manual is availabl
