Product Details:
Payment & Shipping Terms:
|
| Product Name: | Green PVC Coated Animal Cage Mesh Welding Machine | Usage: | Cage Mesh |
|---|---|---|---|
| Warranty: | 1 Year | After-sales: | Engineers Available To Service Machinery Overseas |
| Welding Aperture: | 50x50-200x200mm | Voltage: | 380V |
| High Light: | chicken wire mesh machine,wire cage welding machine |
||

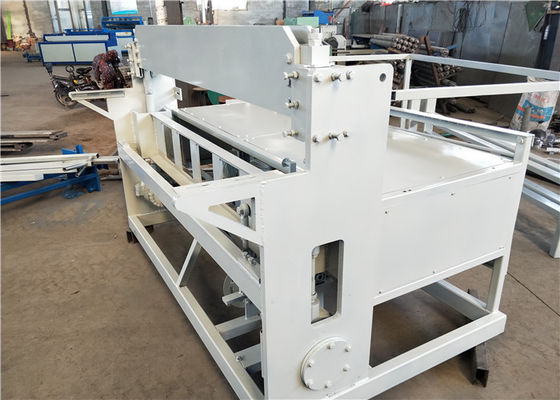

Green PVC Coated Animal Cage Mesh Welding Machine For Chicken Bird And Poulty Cages
description
This machine adopts electrical and electronic synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function , firm welded point, without welded tracks. Not only welding speed is fast, but also it is easy to learn and operate. The machine is equipped with precise equipment for weft cutting and positioning, so the length of wefts is identical and regular , it is unnecessary to slice the side . Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole , and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Features
1. This pets cage welding machine is automatically welding machine used for poultry cage wire diameter 1.5-3.2mm.
2.The pets cage welding machine adapts electrical synchronous technique.
3.The welding time and seperate welding of pets cage welding machine is controlled by digital electric circuit.
4.The pets cage welding machine makes sure of the line and cross wires be solid mesh in the principle of multi-electrode resistance welding.
5.The pets cage welding machine consists of welding machine, line and cross wires feeding device, mesh stepping system and electrical control system.
6.The material of pets cage welding machine can be low carbon steel wire or galvanized wire.
7.The line wires of pets cage welding machine are in coil and can be straightened by straightening wheel on the front of the machine and then be put into the line wire entrance.
Cross wires of pets cage welding machine are pre-straight and cut wires.
8.The mesh aperture size of pets cage welding machine can be adjusted. The line wire space can be adjusted through adjusting the electrode space. The cross wires space can be adjusted by PLC control system.
9.The welding speed of pets cage welding machine can be 60times/min, the work speed mainly depends on the wire material,mesh aperture, choice of welding parameter, proficiency of workers,etc
10. The finished product of pets cage welding machine can be in roll or in panel.
Packing
1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
Specification
| Green PVC Coated Animal Cage Mesh Welding Machine For Chicken Bird And Poulty Cages | ||
| Model | CK-AC-1 | CK-AC-2 |
| Input power | 380V 50 Hz | 380V 50 Hz |
| Max. width | 1200mm | 1200mm |
| Line wire space | 25—200mm | 25—200mm |
| Cross wire space | 25—200mm | 25—200mm |
| Line wire diameter | 1.8-3.0mm | 1.8-3.0mm |
| Cross wire diameter | 1.8-2.5mm | 1.8-2.5mm |
| Rated capacity | 60kva*2 | 60kva*2 |
| Welding point No. | 16 | 16 |
| Motor power | 2.2kw | 2.2kw |
| Feed line wire | Coils wire | Coils wire |
| Feed cross wire | Coil wire | Coils wire & pre-cut wire |
| Welding speed | 40-50times/min | 50-60times/min |
Packing
1 . The spare parts and control cabinet will be loaded in wooden box.
2 . The main machine is nude packing or plastic packing
