Product Details:
Payment & Shipping Terms:
|
| Color: | Customer's Requirment | Mesh Type: | Roll Mesh |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Electric Galvanized Welded Wire Mesh Machine |
| Condition: | New | After-sales: | Engineers Available To Service Machinery Overseas |
| High Light: | wire mesh roll welding machine,steel wire mesh welding machine |
||

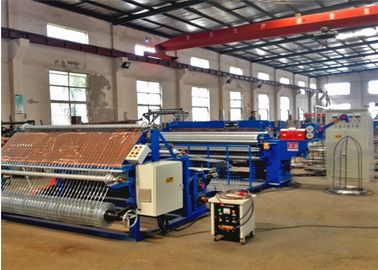

Corrosion Protection / High Quality / Flat Surface Roll Welded Wire Mesh Machine
Hi . We are a manufacturer of wire mesh machines .
We can supply reinforcing mesh welding machine , fence mesh welding machine , automatic welded mesh machine , roll mesh welding machine , electric welded mesh machine , brick force mesh welding machine , wire straightening and cutting machine etc .
Description
1 . This machine is fully automatic to feed wires , weld mesh , cut edge and roll mesh .
2 . The raw material is applicable for low - carbon steel wire , galvanizing wire and stainless steel wire .
3 . It has advantages of reasonable design , low noise , stable working , easier operation etc .
4 . The mesh size is precise and can be set according to customers ’ requirements .
5 . It adopts sealed & water cooling welding transformers , the scoria can not easily goes in .
Specification
| Model | CK - WW - Q | CK - WW - W | CK - WW - E |
| Width of mesh | 914 . 4mm ; 1000mm | 1219 .2mm ; 1524mm (4feet , 5feet ) | 1219 .2mm ; 1524mm ; 1828 . 8mm ; 2133 . 6mm(4feet , 5feet , 6feet , 7feet ) |
| Mesh aperture | 6 . 35mm - 12 . 7mm ( 1 / 4 - 1 / 2 ) | 12 .7mm - 101 . 6mm ( 1 / 2 - 4 ) | 25 .4mm - 101 . 6mm ( 1 - 4 ) |
| Wire diameter | 0 . 4mm - 0 . 65mm | 0 . 65mm - 1 . 8mm | 1 . 0mm - 2 . 2mm |
| Input voltage | 3 - Phasse 380V / 220V / 415V/ 440V 50Hz / 60Hz | ||
| Motor | 2 . 2 KW | 2 . 2 KW | 2 . 2 KW ; 4.0 KW |
| Overall size | 2 . 3 * 1 .3 * 1 .4M | 2 . 5 * 1 .3 * 1 .4M / 2 . 9 * 1 .3 * 1 .4M | 2 . 5 * 1 .3 * 1 .4M / 2 . 9 * 1 .3 * 1 .4M / 3 . 3 * 1 .3 * 1 .4M / 3 . 6 * 1 .3 * 1 .4M |
| Weight | 1 . 5T | 2 . 0T / 2 . 5T | 2 . 0T / 2 . 5T / 3 . 0T / 3 . 5T |
| Rated capacity | 50kva * 3 | 60kva * 4 / 60kva * 5 | 60kva * 4 / 60kva * 5 / 60kva * 6 / 60kva * 7 |
Best After - sales Service
1 . Guarantee time , one year since machine was at buyer ' s factory but within 18 months against B / L date .
2 . Within guarantee time , if any components are broken under normal condition , we can change for free .
3 . We can send our best technician to buyer ’ s factory for installation , debugging and training .
4 . Complete installation instructions , circuit diagram , manual operations and machine layout .
5 . Timely reply for your machine questions .
