PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty

I'm Online Chat Now

PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty

China PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty supplier
PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty supplier PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty supplier PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty supplier PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty supplier

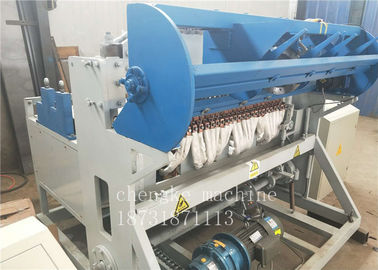

Large Image :  PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty

Product Details:

Place of Origin: Anping Hebei
Brand Name: ChenChengke
Certification: ISO
Model Number: CK-WM-2500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: no
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30
Contact Now
Detailed Product Description
Product Name: PLC Galvanized Wire Black Wire Automatic Wire Mesh Welding Machine Control System: PLC
After-sales: Overseas Service Provided Speed: 80-120 (times/minute)
Voltage: 380v Warranty: 1 Year





PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty





PLC Galvanized Wire Black Wire Automatic Wire Mesh Welding Machine Chengke





Specification



Wire diameter 1.5-3mm Line wire feeding Coil wire
Line wire space 50 - 250mm Cross wire feeding Pre - cut wire
Cross wier Space 50 - 250mm Rated capacity 125kva*2
Width of Mesh ≤ 1000mm Input voltage 3 - Phase 380V 50Hz
Welding speed 80 - 90times / min Weight 2.8T



Welding width Max.2500mm(customizable)
Wire diameter 3-6mm
Welding speed 49-90times/min
Line wire distance 50-200mm(customizable)
Voltage 380V 50Hz
Cross wire distance ≥50mm
Can be customized according to customer requirements.



Wire diameter 5-12mm
Cross & Line wire form Pre-straightening and pre-cut wire
Cross wire space 50-200mm
Line wire space 100-200mm
Width of mesh 2500mm
Number of electrodes 24
Welding speed 30-50times/min
Rated voltage 380V-440V
Rate capacity 12*125kva
Operation Touch-screen board
Welding motor Provided by FM speed motor
Cross feeding system Pneumatic system control falling one by one
Mesh pulling system Adopts servo motor to pull mesh sheets repeat
Cooling system Water cooling transformer
Controlling system Synchronous control with PLC program system



peculiarity



1. Using servo motor control network pull, improve the accuracy of the grid.
2. Using rack and pinion transmission, transmission efficiency.
3. The grid can vary according to different needs.
4. Splash small, low burn marks, improve the appearance of the net panel.
5. Working speed, work stability, improve productivity.





Usage



Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cagesThe production of metal furniture, goods shelf, shopping cart and protective cover



PLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year WarrantyPLC Automatic Wire Mesh Welding Machine , Galvanized Wire Machine 1 Year Warranty
