380V Automatic Wire Mesh Welding Machine Multi Spot Welding Function AC Motor PLC Control

I'm Online Chat Now

380V Automatic Wire Mesh Welding Machine Multi Spot Welding Function AC Motor PLC Control

China 380V Automatic Wire Mesh Welding Machine Multi Spot Welding Function AC Motor PLC Control supplier
380V Automatic Wire Mesh Welding Machine Multi Spot Welding Function AC Motor PLC Control supplier 380V Automatic Wire Mesh Welding Machine Multi Spot Welding Function AC Motor PLC Control supplier 380V Automatic Wire Mesh Welding Machine Multi Spot Welding Function AC Motor PLC Control supplier

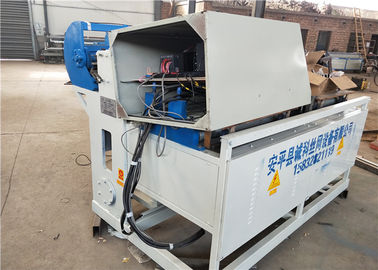

Large Image :  380V Automatic Wire Mesh Welding Machine Multi Spot Welding Function AC Motor PLC Control

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-FM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: AC Motor Automatic Wire Mesh Welding Machine Color: Customer's Requirment
Voltage: 380V Speed: 50-80 (times/minute)
Warranty: 1 Year After-sales: Overseas Service Provided
High Light:

steel grating welding machine

,

rebar mesh welding machine

AC Motor Automatic Wire Mesh Welding Machine CE / ISO9001 Approved





description



This machine has multi spot welding function, advanced control system enables the machine to weld the mesh in any sequence or any way. Using high quality air cylinder to provide welding force, the output is much more stable and durable than conventional mechanical type welding machines.Also machine features can be made by your idea together with our engineer technique support.Varies materials can be welded: weld mild steel wire, stainless wire, galvanized steel wire.Mesh panels: weld construction mesh panel, fridge shelf panel, shelf rack mesh panel, reinforcing mesh panelsMesh production line: producing rolled mesh in varies size.All kinds of mesh products: weld cage for bird, pet cage welding, mesh trolley welding, weld wire mesh basket, wire tray, fridge condensers, cable tray mesh etc.



Application



1. PLC control,with the humanized operation interface, easy to operate and master.
2. The adjustment of mesh specifications uses the touch screen, it is very easy to set the welding parameters and production data.
3. The touch screen adopts Taiwan Delta,it can be of in English.
4. The mesh size can be adjusted to meet the different needs of users.
5. PLC uses the Delta of Taiwan.
6. Inverter adopts HOLIP brand.
7. Mesh drawing car is controlled by Servo motor, improve the accuracy of the mesh effectively.
8. Using the gear and the rack drive, the transmission efficiency is perfect.
9. Mesh can vary to meet the production of a variety of needs.
10. Both ends of the traction device is equipped with limit switches, preventing traction car from crashing and also mechanical damage from collision



Specification



AC Motor Automatic Wire Mesh Welding Machine CE / ISO9001 Approved
Wire diameter 2.5-6mm Longitude Wire Feeding Pre-straighted&pre-cut
Longitude wire space 50-300mm Cross wire feeding Pre-straighted&pre-cut
Cross wire space 25-300mm Rated electrical powe 125kva*6pcs
Width of mesh 2500mm Rated voltage as your request
Welding electrodes 48pcs weight 4T
Welding speed 45-75tines/min Overall size 3m*2*1.8m
Adjustable electromagnetism motor 4.0KW
Can be customized according to customer requirements.



Usage



Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cagesThe production of metal furniture, goods shelf, shopping cart and protective cover
