| Product Name: | Automatic Wire Mesh Welding Machine | Color: | Customer's Requirment |
|---|---|---|---|
| Voltage: | 380V | Speed: | 50-80 (times/minute) |
| Warranty: | 1 Year | After-sales: | Overseas Service Provided |
| High Light: | steel grating welding machine,automatic wire mesh machine |
||

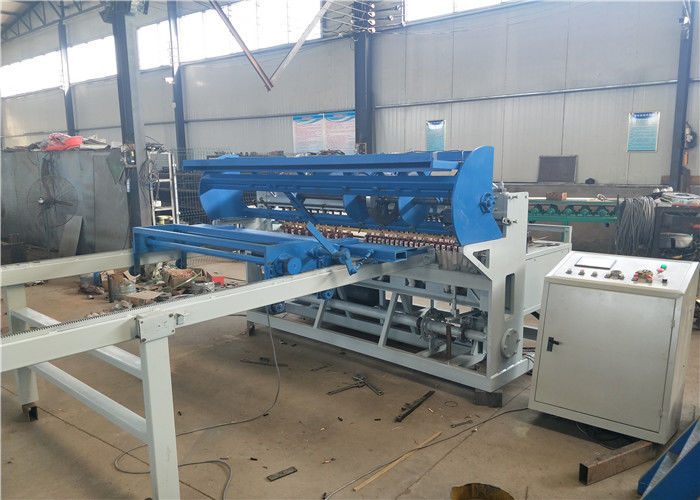

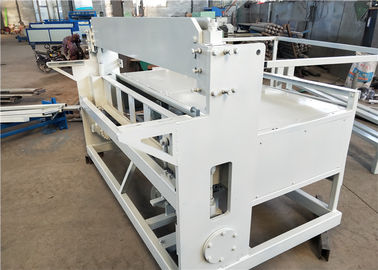

Automatic Wire Mesh Welding Machine Stock Is Available For Inspection At The Factory
description
This machine has multi spot welding function, advanced control system enables the machine to weld the mesh in any sequence or any way. Using high quality air cylinder to provide welding force, the output is much more stable and durable than conventional mechanical type welding machines.Also machine features can be made by your idea together with our engineer technique support.Varies materials can be welded: weld mild steel wire, stainless wire, galvanized steel wire.Mesh panels: weld construction mesh panel, fridge shelf panel, shelf rack mesh panel, reinforcing mesh panelsMesh production line: producing rolled mesh in varies size.All kinds of mesh products: weld cage for bird, pet cage welding, mesh trolley welding, weld wire mesh basket, wire tray, fridge condensers, cable tray mesh etc.
Application
1. Feeding material:
The warp wire and weft wire are straightened and cutted from coil wire material ,realized by auto straightening and cutting machine.
The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system
2. Welding mesh panel system:
The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Mitsubishi PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet
3. Drawing mesh panel system:
Panasonic ( Japan ) step motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.
Specification
| AC Motor Automatic Wire Mesh Welding Machine CE / ISO9001 Approved | |||
| Wire diameter | 2.5-6mm | Longitude Wire Feeding | Pre-straighted&pre-cut |
| Longitude wire space | 50-300mm | Cross wire feeding | Pre-straighted&pre-cut |
| Cross wire space | 25-300mm | Rated electrical powe | 125kva*6pcs |
| Width of mesh | 2500mm | Rated voltage | as your request |
| Welding electrodes | 48pcs | weight | 4T |
| Welding speed | 45-75tines/min | Overall size | 3m*2*1.8m |
| Adjustable electromagnetism motor | 4.0KW | ||
| Can be customized according to customer requirements. | |||
Usage
Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .
