Fully Automatic Welded Wire Mesh Machine , Black Wire Steel Wire Mesh Machine

I'm Online Chat Now

Fully Automatic Welded Wire Mesh Machine , Black Wire Steel Wire Mesh Machine

China Fully Automatic Welded Wire Mesh Machine , Black Wire Steel Wire Mesh Machine supplier
Fully Automatic Welded Wire Mesh Machine , Black Wire Steel Wire Mesh Machine supplier Fully Automatic Welded Wire Mesh Machine , Black Wire Steel Wire Mesh Machine supplier Fully Automatic Welded Wire Mesh Machine , Black Wire Steel Wire Mesh Machine supplier Fully Automatic Welded Wire Mesh Machine , Black Wire Steel Wire Mesh Machine supplier

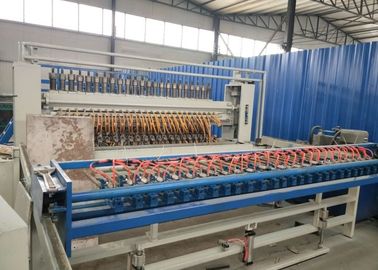

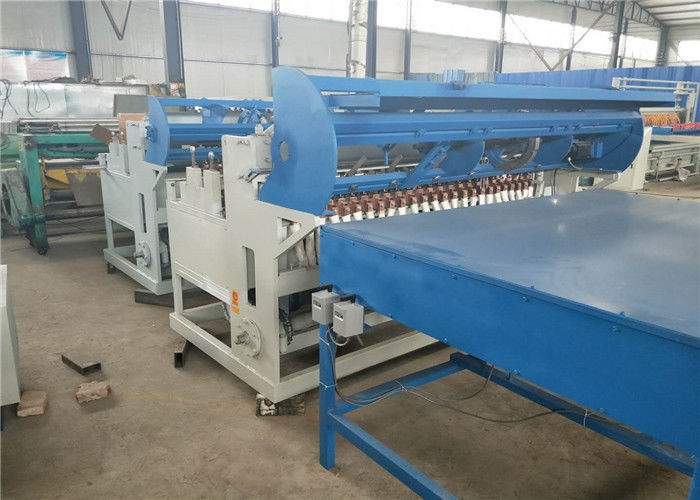

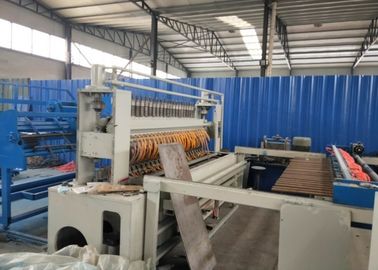

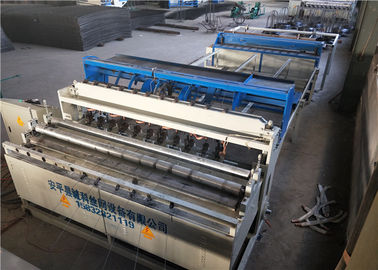

Large Image :  Fully Automatic Welded Wire Mesh Machine , Black Wire Steel Wire Mesh Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-wm

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Fully Automatic Wire Mesh Panel Welding Machine Color: Customer's Requirment
Voltage: 380V Speed: 50-120 (times/minute)
Warranty: 1 Year After-sales: Overseas Service Provided

Fully Automatic Wire Mesh Panel Welding Machine 1 . 8 - 3 mm / 3 - 6 mm / 5 - 12 mm


description

1), This kind of machine is expert to produce mesh sheet. The finished mesh is much smoother than mechanical machines products.
2), PLC control. Easy to set and control. It makes this machine more intelligent and reasonable.
3), The weft wire supply is automatic.
4), The greatest advantage is possible to adjust the distance of wefts at random on the same mesh sheet
5) the finished produce welded wire mesh are for fence, construction, poultry cage etc

Application


1. Each machine will be debugged by professionals after the factory.quality assurance.
2.PLC control. It makes this machine more intelligent and reasonable, the product size accuracy is higher.
3. You can adjust the distance of cables randomly on the same grid panel.
4 wire diameter can be produced by order. Our mesh welders range from 0.3 mm to 12 mm. Material can be stainless steel wire, galvanized wire, ordinary steel, cold-rolled steel and so on
5. Each machine will be debugged by professionals after the factory. quality assurance


Usage

Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .

Specification


Wire diameter 1.5-3mm Line wire feeding Coil wire
Line wire space 50 - 250mm Cross wire feeding Pre - cut wire
Cross wier Space 50 - 250mm Rated capacity 125kva*2
Width of Mesh ≤ 1000mm Input voltage 3 - Phase 380V 50Hz
Welding speed 80 - 90times / min Weight 2.8T



Welding width Max.2500mm(customizable)
Wire diameter 3-6mm
Welding speed 49-90times/min
Line wire distance 50-200mm(customizable)
Voltage 380V 50Hz
Cross wire distance ≥50mm
Can be customized according to customer requirements.



Wire diameter 5-12mm
Cross & Line wire form Pre-straightening and pre-cut wire
Cross wire space 50-200mm
Line wire space 100-200mm
Width of mesh 2500mm
Number of electrodes 24
Welding speed 30-50times/min
Rated voltage 380V-440V
Rate capacity 12*125kva
Operation Touch-screen board
Welding motor Provided by FM speed motor
Cross feeding system Pneumatic system control falling one by one
Mesh pulling system Adopts servo motor to pull mesh sheets repeat
Cooling system Water cooling transformer
Controlling system Synchronous control with PLC program system
