Home ProductsAutomatic Wire Mesh Welding Machine

Rated Power 75kva Automatic Wire Mesh Welding Machine Welding Aperture 50 X 50 - 200 X 200mm

I'm Online Chat Now

Rated Power 75kva Automatic Wire Mesh Welding Machine Welding Aperture 50 X 50 - 200 X 200mm

China Rated Power 75kva Automatic Wire Mesh Welding Machine Welding Aperture 50 X 50 - 200 X 200mm supplier
Rated Power 75kva Automatic Wire Mesh Welding Machine Welding Aperture 50 X 50 - 200 X 200mm supplier Rated Power 75kva Automatic Wire Mesh Welding Machine Welding Aperture 50 X 50 - 200 X 200mm supplier Rated Power 75kva Automatic Wire Mesh Welding Machine Welding Aperture 50 X 50 - 200 X 200mm supplier Rated Power 75kva Automatic Wire Mesh Welding Machine Welding Aperture 50 X 50 - 200 X 200mm supplier

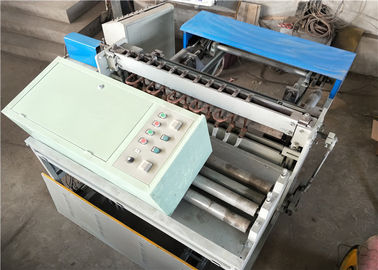

Large Image :  Rated Power 75kva Automatic Wire Mesh Welding Machine Welding Aperture 50 X 50 - 200 X 200mm

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-FM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Automatic Wire Mesh Welding Machine Welding Aperture: 50x50-200x200mm
Voltage: 380V Speed: 60 (times/minute)
Warranty: 1 Year After-sales: Overseas Service Provided

Automatic Wire Mesh Welding Machine Easy To Learn And Operate





description



automatic wire mesh welding machine is complete equipment for welding wire mesh, which is manufactured by AWM based on learning foreign advanced experiences and advanced technologies in addition to actual production demands in the international market. It has many favorable features, such as high output, high precision, easy modification, low operation failure rate, strong capability in energy saving, low consumption, and high quality.



Application



1. The machine is made of thick steel plate and profile steel, high strength, high toughness, main structure more solid.

2. The welding adopts synchronous power control and separate-control, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.

3. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.

4. The mesh pulling system in cycle is automatically calculated. The mesh pulling car can pulling mesh by the cycle automatically.

5. The machine will stop working automatically if there is no cross wires in hopper device.

6. The cutting machine can cut the mesh as demand length automatically.



Usage



It can be used in the manufacture of many kinds of products, such as Shule board net, fence net, floor pouring net, geothermal net, seedbed net, flower room net and so on.



Specification



Automatic Wire Mesh Welding Machine Easy To Learn And Operate
Welding wire diameter 1.2-2.2mm
Weld ≤ 25 (according to customer requirements to add changes)
Weft spacing ≥ 40mm
Warp spacing ≥ 40mm
Rated voltage 380V
Welding width 1250mm
rated power 75kva
Welding speed 40-60 times / minute
Warp form continuous wire (wire)
Weft form continuous wire (wire)
Can be customized according to customer requirements.
